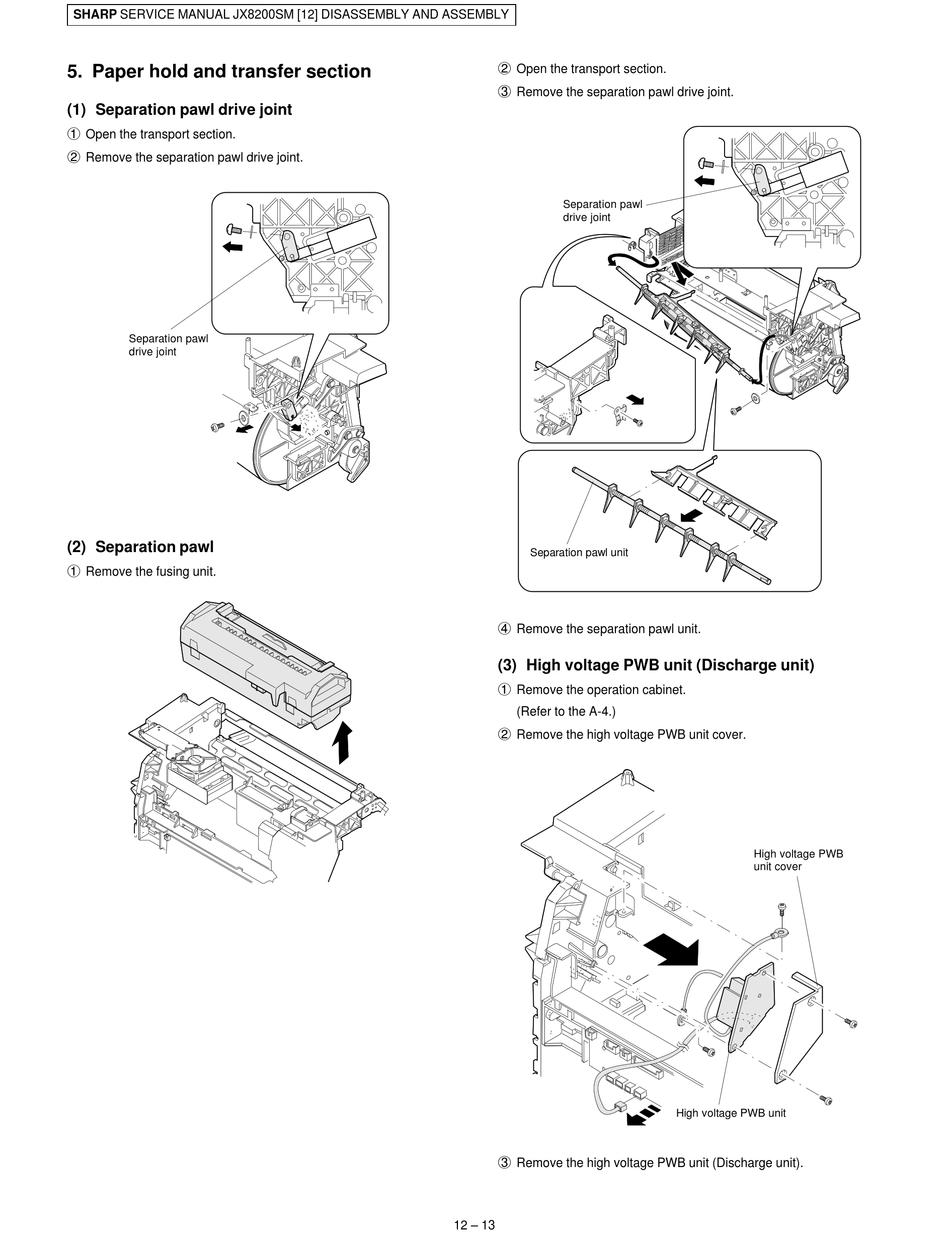

5. Paper hold and transfer section

(1) Separation pawl drive joint
1
Open the transport section.
2
Remove the separation pawl drive joint.
Separation pawl
drive joint
(2) Separation pawl
1
Remove the fusing unit.
2
Open the transport section.
3
Remove the separation pawl drive joint.
Separation pawl
drive joint
Separation pawl unit
4
Remove the separation pawl unit.
(3) High voltage PWB unit (Discharge unit)
1
Remove the operation cabinet.
(Refer to the A-4.)
2
Remove the high voltage PWB unit cover.
3
Remove the high voltage PWB unit (Discharge unit).
12 – 13
High voltage PWB
unit cover
High voltage PWB unit
