(9) High voltage PWB unit
1) System
Invertor system
2) Main charger output
–470 ∼ –732V
3) Developing bias output
–250 ∼ –550V
4) Transfer charger output
1.0 ∼ 2.8kV
(10) Power PWB unit
1) Input
AC120 (±10%)
AC220 ∼ 240V (±10%)
2) Output
5V 8.0
24V 4.0A
3) Protection circuit
Overcurrent, overvoltage protection circuit
4) Control signal
Power ON/OFF detection signal and reset signal are outputted.
(11) Operation Panel
1 LCD (16 chars. × 1 line)
4 LED
8 Switches
Language support
(English/German/French/Italian/Spanish/Japanese)
(12) Others
1) Waste toner bottle
Capacity (7K print (5% density print))
Installation and full detection function
2) Ozone filter

2. Print performance

Print speed
First print out time and continuous print Speed:
– After the warm-up, Time taken from the first printing command to
finish the paper out.
Does not count the loss time, such as paper misfeed, toner supply
cycle.
First Print out Time (sec)
Paper feed section Paper size
1 color
Legal
Letter
Standard paper feed
Invoice
A4
A5
1 color
Legal
Letter
Option paper feed
Invoice
A4
A5
* When print sequence is Black to Yellow, Print out time and Print
Speed is same as 3 color.
Continuous Print Speed
(ppm)
- Approximate -
- Approximate -
4 color 1 color 4 color
24 38 12 3
23 37 Ditto Ditto
21 37 Ditto Ditto
23 37 Ditto Ditto
22 38 Ditto Ditto
4 color 1 color 4 color
26 40 12 3
25 39 Ditto Ditto
23 39 Ditto Ditto
25 39 Ditto Ditto
24 40 Ditto Ditto
Print speed calculation is taken from start printing and paper output
are completed. In this case, the measurement does not include the
processing time of controller.
Warm-up Time
Less than 180 sec
* This is the time take until the printer is set at print possible condi-
tion under the standard condition after the power switch ON.
Resolution
600 DPI/1 bit per pixel color, 300 DPI/1 bit per pixel color
Gradation
PCL5EC 32 (Dither)
PS2 144 (Dither)

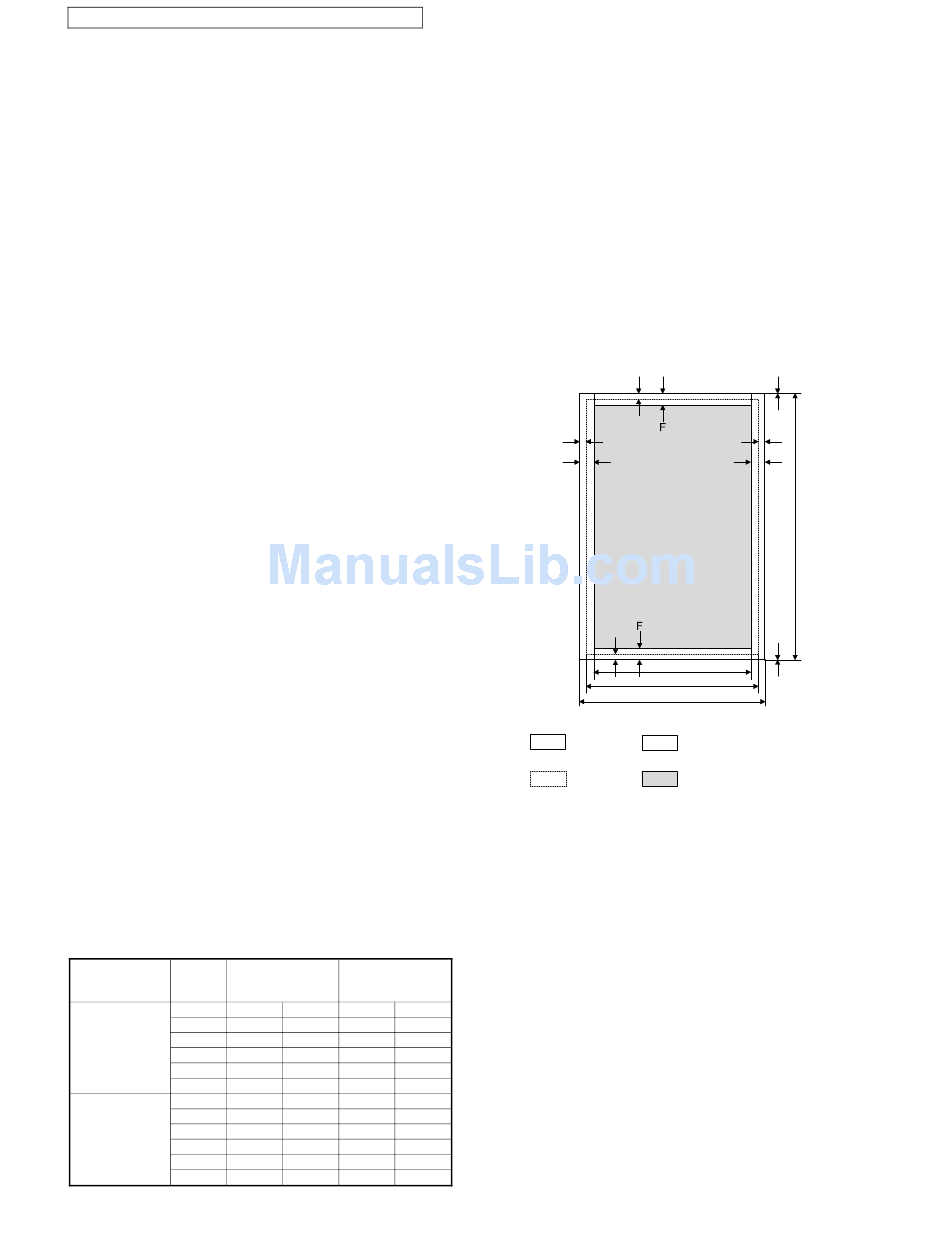

Printable Area
Top margin:
Right/Left/Bottom margin:
E
E
Physical
Page
Printable
Area
A = Physical Page Width
B = Physical Page Length
C = Logical Page Width
D = Distance Between the Side Edge of the Physical Page and the
Logical Page
E = Distance Between the Edge of the Physical Page and the
Logical Page
F = Distance Between Edge of the Physical Page and Edge of
Default HP-GL/2 Picture Fram
G = Width of Printable Area
H = Distance Between the Top/Bottom Edge of the Physical Page
3 – 3
4.2 mm (Void area)
4.2 mm (Printable but not recommen-
dable print area)
H
E
D
B
H
C
G
A
Logical
Page
HP/GL
Frame
