Chapter 2
Using The Optional Internal Rewinder

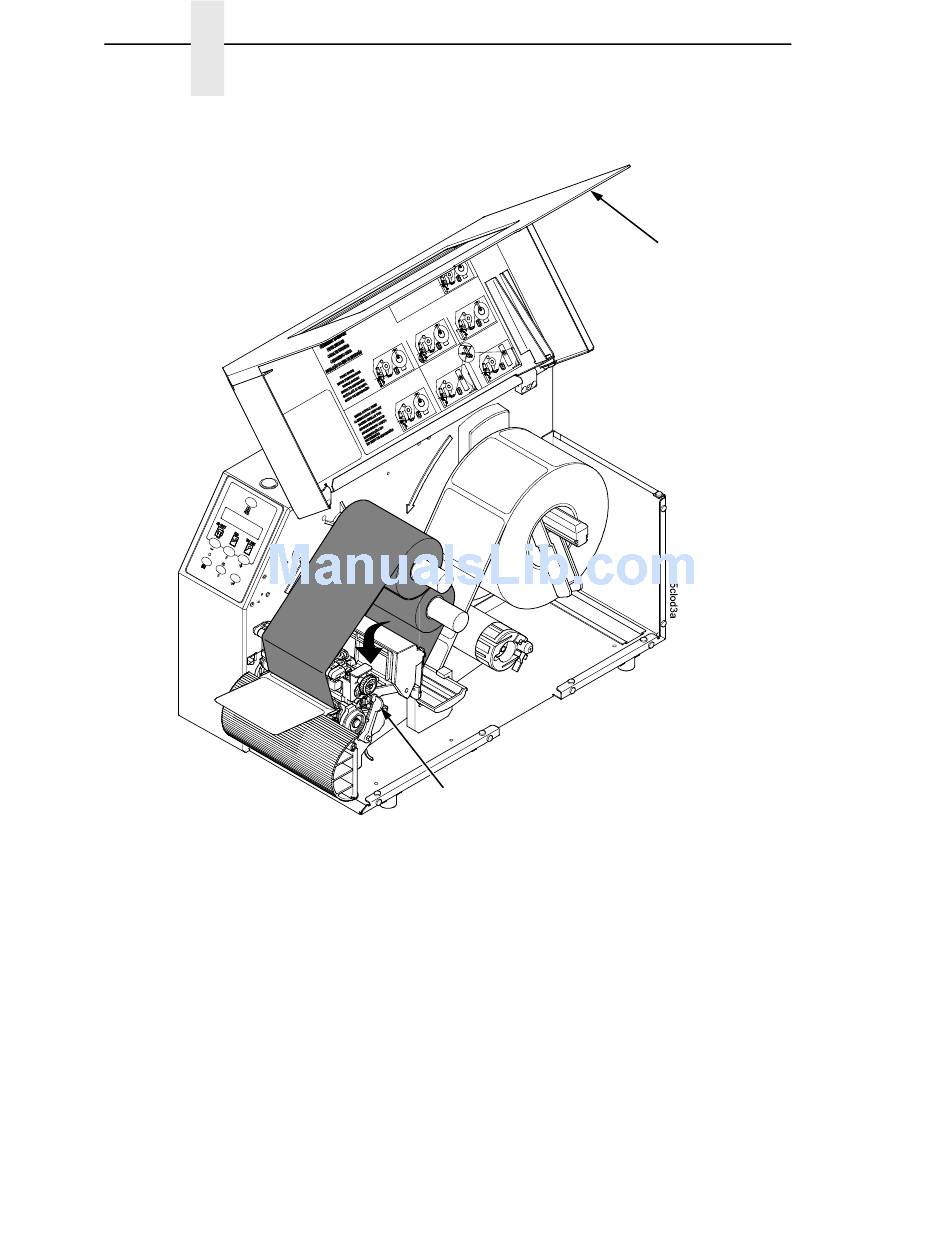

12. Press down on both sides of the pivoting deck and rotate the deck lock
lever fully counterclockwise.
13. Press the FEED key. The label advances to the peel-off position, and
"Remove Label" displays on the LCD.
14. Manually remove the peeled label from the printer.
15. Press the PAUSE key until "ONLINE" displays.
16. Close the media cover.
IMPORTANT
The rewinder supports a maximum diameter of 5 inches of liner.
Exceeding this diameter can cause the liner to rub on the bottom pan.
The rewinder is designed to support the full amount of liner from a
standard 8 inch diameter media roll.
62
Deck Lock
Lever
Media Cover
