Printronix SL5000 User Manual page 57

Media
Media
Guide
2. Thread the media over the front of the media guide and through the
opening under the front door toward the internal rewinder.
IMPORTANT
If you do not complete the following step, it will be extremely difficult to
remove the printed labels from the rewinder.

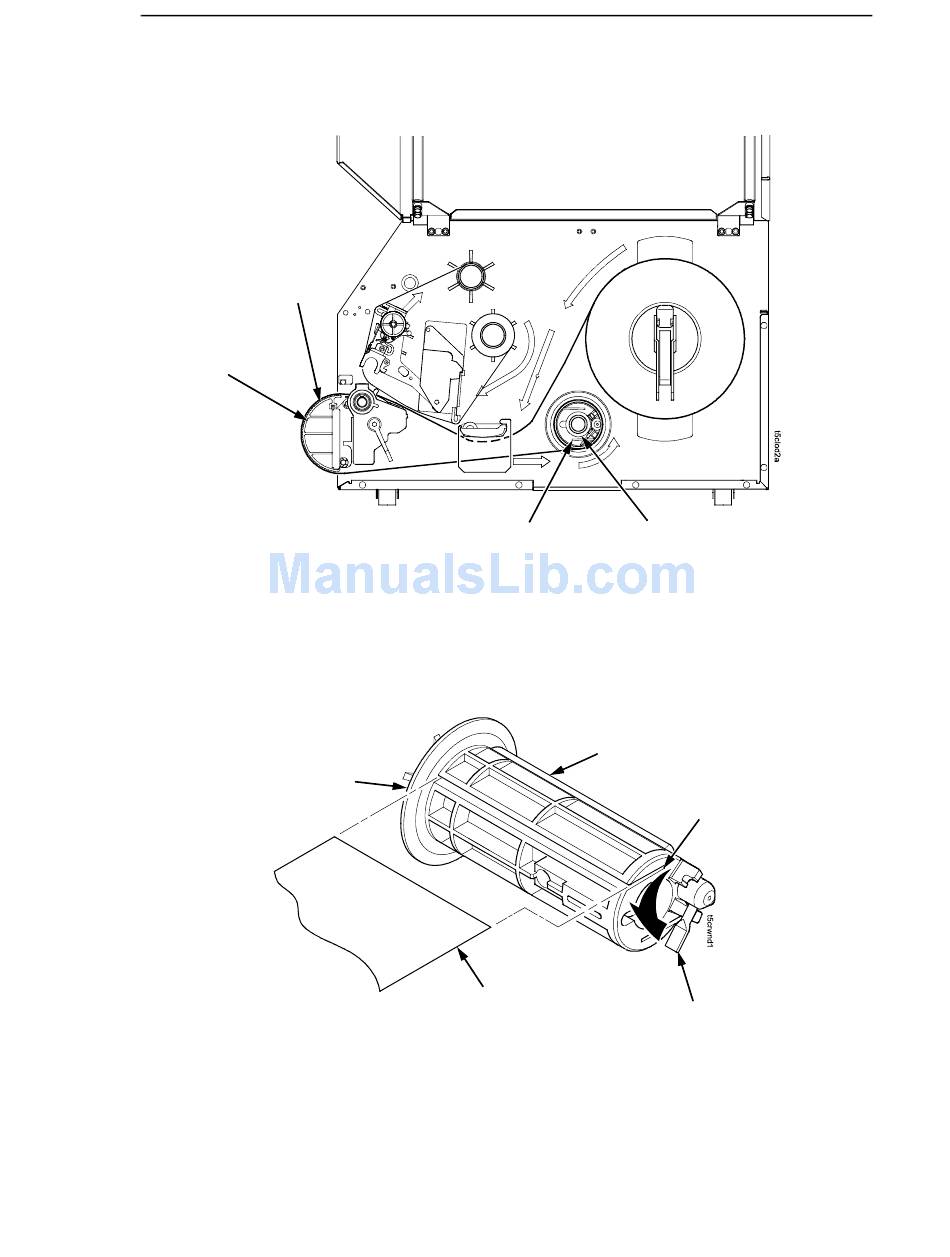

Back Flange
3. Turn the release lever on the rewinder counterclockwise and lock it in
place. This forms a raised ridge along the width of the rewinder.
4. Insert the leading edge of the media into the closest slot of the rewinder,
and slide the media against the back flange.
5. Hold the media edge in the slot and manually rotate the rewinder one full
revolution counterclockwise until the media is taut.
Rewinder Release Lever
Slot
Raised Ridge
Media or Liner
Batch Rewind Mode
Slot
Rewinder Release Lever
57
