Loading Media And Ribbon

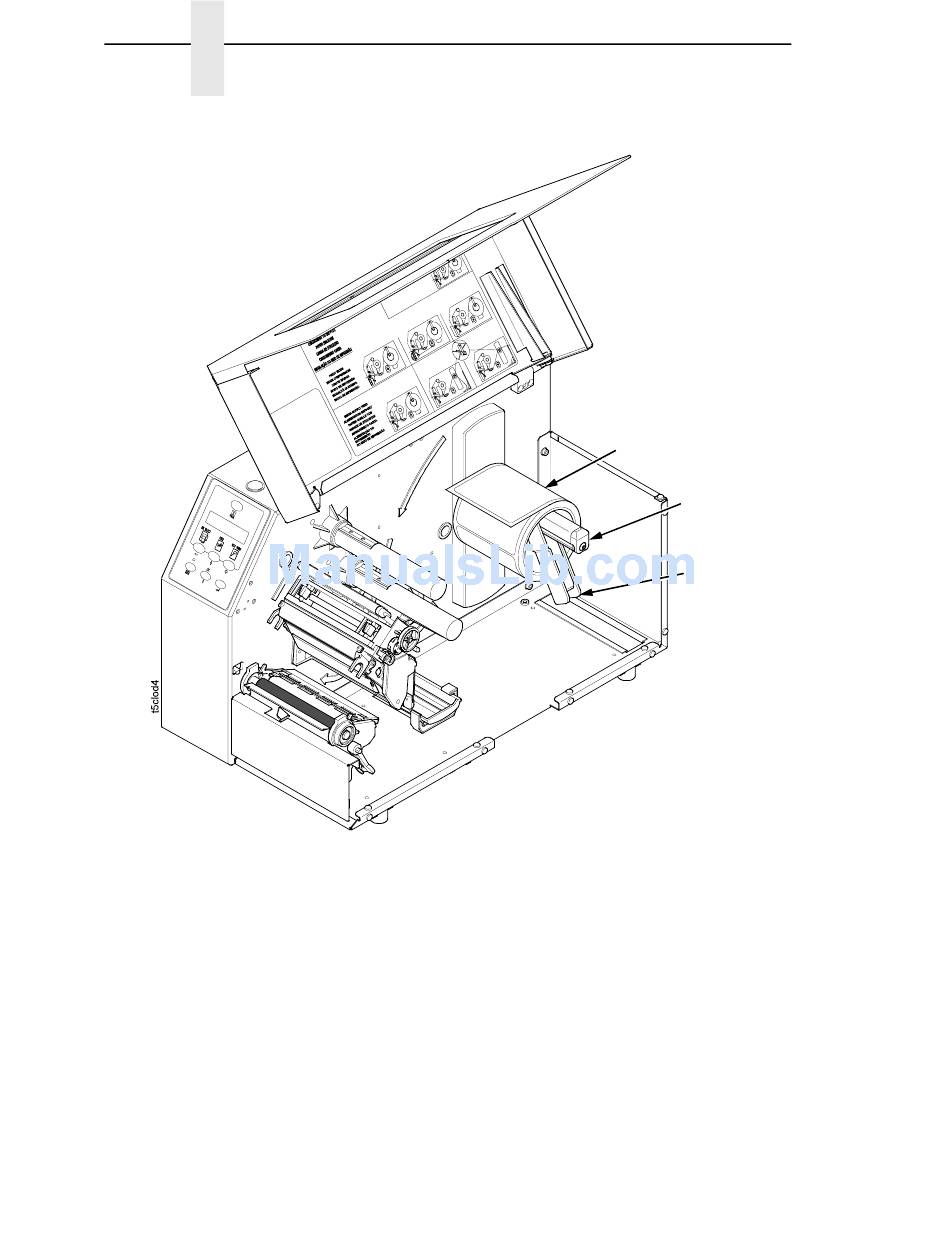

5. Slide a roll of media onto and towards the back of the media hanger. The

media feeds from the top of the roll and towards the front of the printer.

6. Place the media hanger guide under the media hanger and against the

lower part of the label core at a 45 degree angle (as shown). This position

provides the required tension for a new label roll and the desired drag for

a partial label roll.

Media Hanger
