CLKIN
ECLKIN
RESET
Internal Reset
Internal SYSCLK1
Internal SYSCLK2
Internal SYSCLK3
ECLKOUT
CLKOUT2
CLKOUT3
EMIF Z Group †
EMIF Low Group †
Z Group †
Z Group 2 †
Boot and Device
Configuration Pins‡
† EMIF Z group consists of:
EA[21:2], ED[31:0], CE[3:0], BE[3:0], ARE/SDCAS/SSADS, AWE/SDWE/SSWE, AOE/SDRAS/SSOE and
HOLDA
EMIF low group consists of: BUSREQ
Z group 1 consists of:
CLKR0, CLKR1, CLKX0, CLKX1, FSR0, FSR1, FSX0, FSX1, DX0, DX1, TOUT0, and TOUT1.
Z group 2 consists of:
All other HPI and GPIO signals
‡ Boot and device configurations consist of: HD[8, 4:3].
Reset Phase 1: The RESET pin is asserted. During this time, all internal clocks are running at the CLKIN
frequency divide-by-8. The CPU is also running at the CLKIN frequency divide-by-8.
Reset Phase 2: The RESET pin is deasserted but the internal reset is stretched. During this time, all internal
clocks are running at the CLKIN frequency divide-by-8. The CPU is also running at the CLKIN frequency
divide-by-8.
Reset Phase 3: Both the RESET pin and internal reset are deasserted. During this time, all internal clocks are
running at their default divide-down frequency of CLKIN. The CPU clock (SYSCLK1) is running at CLKIN
frequency. The peripheral clock (SYSCLK2) is running at CLKIN frequency divide-by-2. The EMIF internal clock
source (SYSCLK3) is running at CLKIN frequency divide-by-2. SYSCLK3 is reflected on the ECLKOUT pin
(when EKSRC bit = 0 [default]). CLKOUT3 is running at CLKIN frequency divide-by-8.
FLOATING POINT DIGITAL SIGNAL PROCESSOR
RESET TIMING (CONTINUED)
Phase 1
1 1
3
4
5
6
7
8
9
10
11
12
14
13

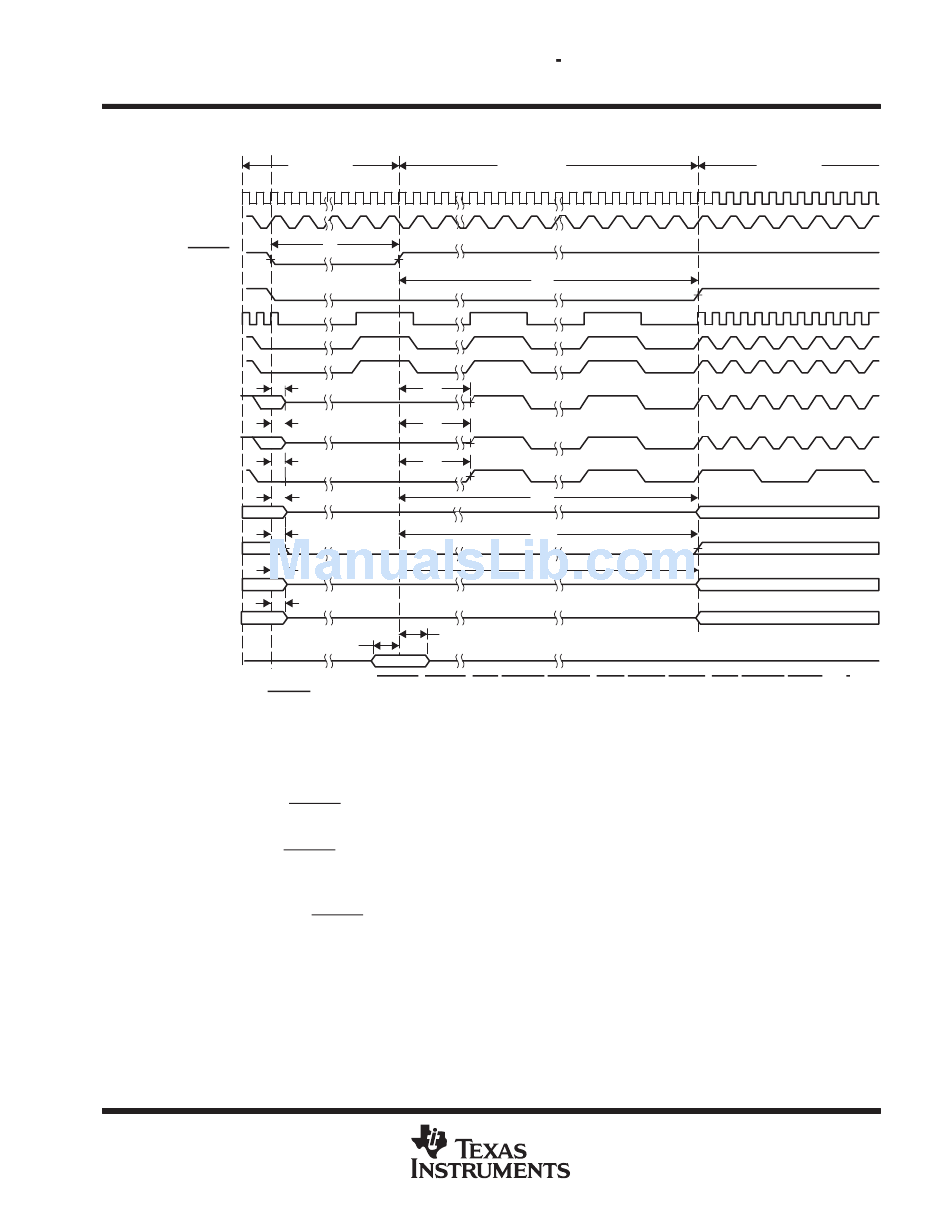

Figure 40. Reset Timing
•
POST OFFICE BOX 1443
SPRS292A − OCTOBER 2005 − REVISED NOVEMBER 2005
Phase 2
2
2
2
2
HOUSTON, TEXAS 77251−1443
TMS320C6711D
Phase 3
85
