TMS320C6711D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS292A − OCTOBER 2005 − REVISED NOVEMBER 2005
signal groups description (continued)
GP[7](EXT_INT7)
GP[6](EXT_INT6)
GP[5](EXT_INT5)
GP[4](EXT_INT4)
GPIO
CLKOUT2/GP[2]
General-Purpose Input/Output (GPIO) Port

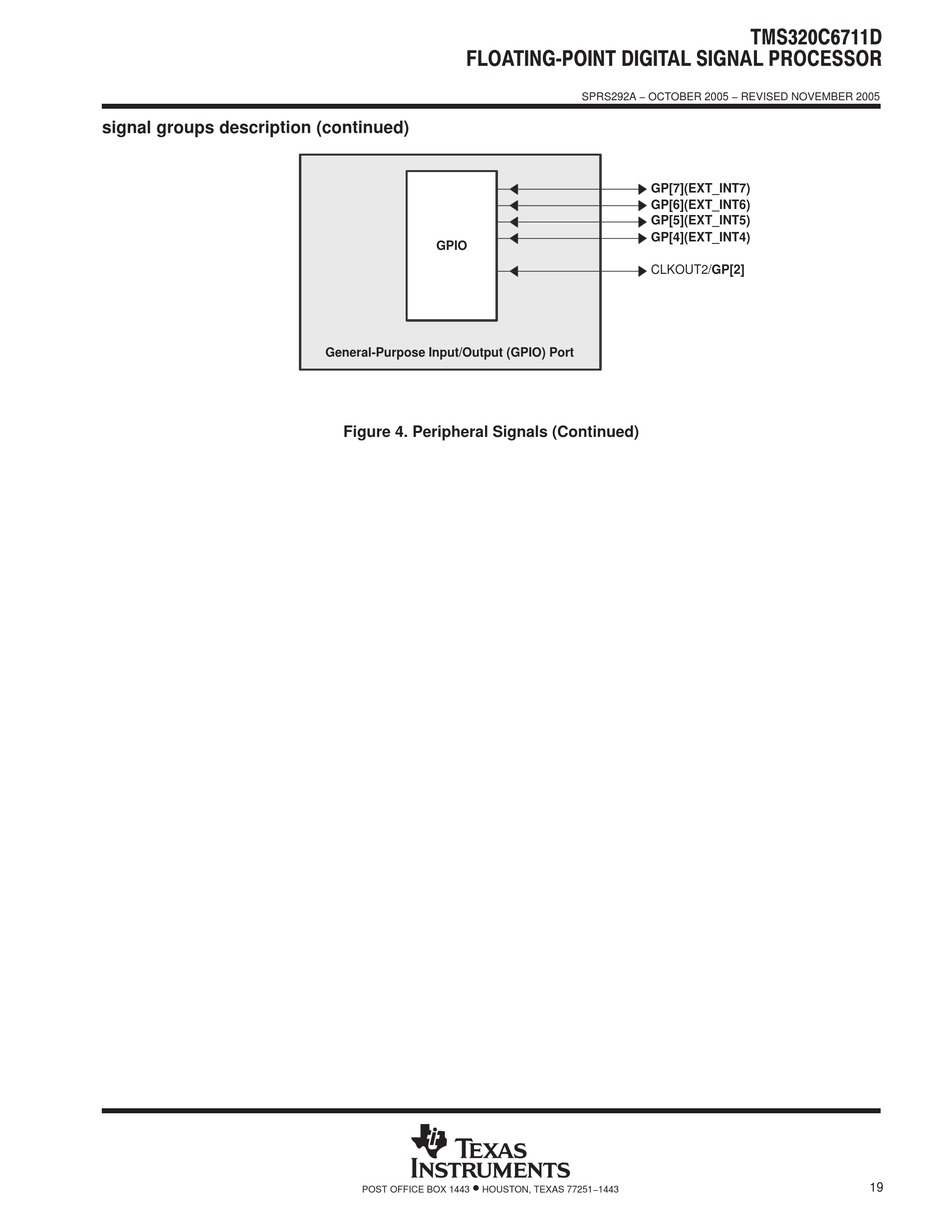

Figure 4. Peripheral Signals (Continued)
•
19
