TMS320C6711D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS292A − OCTOBER 2005 − REVISED NOVEMBER 2005
ECLKOUT
CEx
BE[3:0]
EA[21:13]
EA[11:2]
EA12
ED[31:0]
AOE/SDRAS/SSOE †
ARE/SDCAS/SSADS †
AWE/SDWE/SSWE †
† ARE/SDCAS/SSADS, AWE/SDWE/SSWE, and AOE/SDRAS/SSOE operate as SDCAS, SDWE, and SDRAS, respectively, during SDRAM
accesses.
78
SYNCHRONOUS DRAM TIMING (CONTINUED)
WRITE
1 2
2 4
BE1 BE2
4 5
Bank
4 5
Column
4 5
9 9
D1 D2
8 8
11 11

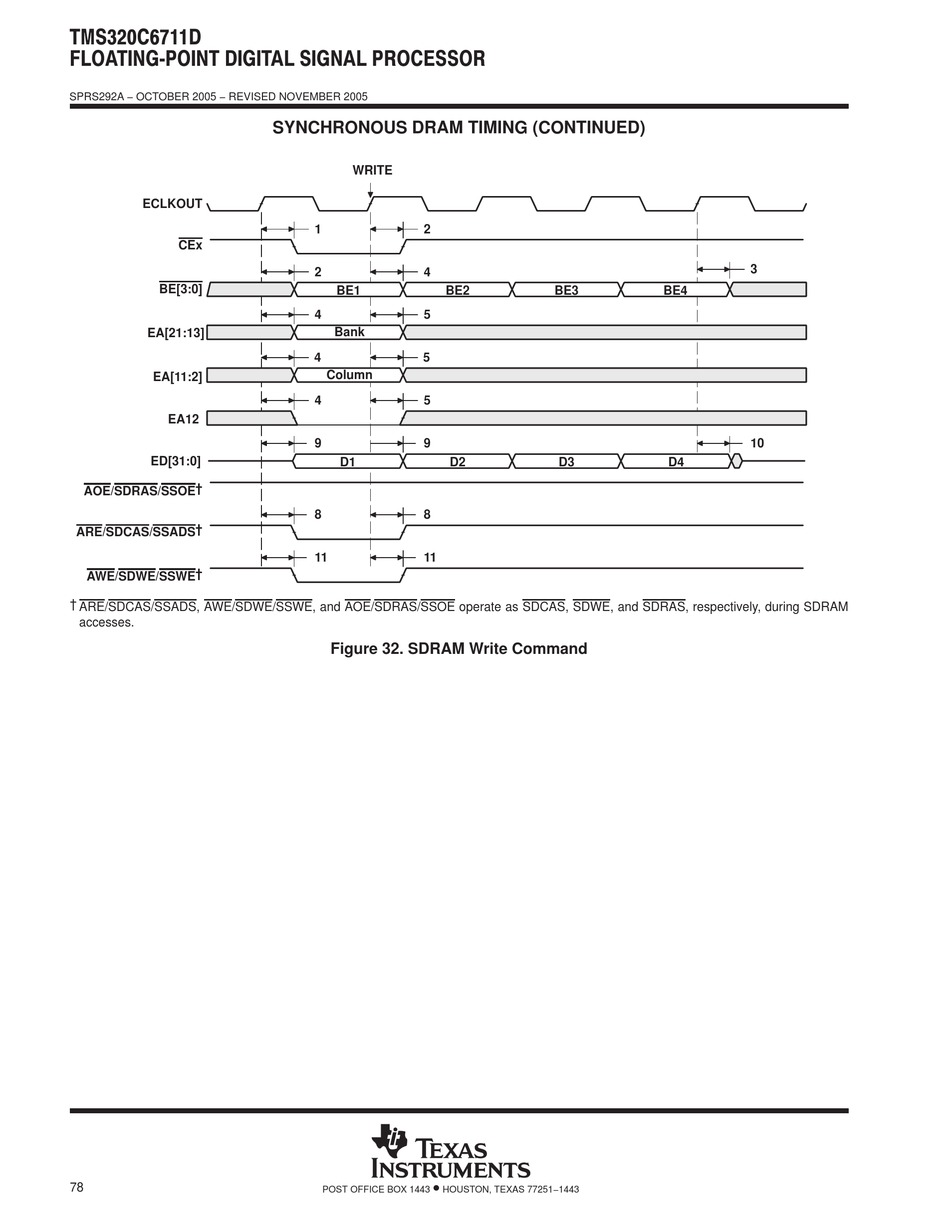

Figure 32. SDRAM Write Command
•
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
BE3 BE4
D3 D4
3
10
