Texas Instruments TMDSEVM6457LE Quick Setup Manual

Getting Started:
The TMDSEVM6457LE ships with a Power On self Test (POST)
flashed into I2C EEPROM. The POST will be automatically
executed when the board is powered ON. POST will perform
memory test and EMAC loopback test. At 'power on' the user
LEDs will be OFF by default. The LEDs will blink and turn OFF to
indicate successful DSP booting.
Then after, User LED-1 will turn ON to indicate successful RAM
test and User LED-2 will turn ON to indicate successful EMAC
loop-back test. These LEDs will remain ON to indicate success
of both the tests.
Please refer MCSDK Getting Started Guide and MCSDK User
Guide for software installation and other details.
Helpful Hints:
• Plug in all the cables before turning the EVM ON to
ensure proper grounding.
• Do not unnecessarily flex the boards, while inserting
cables. Excessive flexing can break the PCB traces.
Online Documentation
Most of the information on TMDSEVM6457LE is available
online. Some of the most commonly used resources are
mentioned below:
TMDSEVM6457LE Information:
http://www.einfochips.com/TI-TMDSEVM6457L.php
This link contains:
• Hardware & software details
• Technical Reference Manual
• TMS320C6457 Datasheet
• Frequently Asked Questions (FAQ)
C6457 DSP Information:
http://focus.ti.com/docs/prod/folders/print/tms320c6457.html
EVM6457 Support:
Please write to evm6457support@einfochips.com for
technical queries related to this EVM.
eInfochips Address:
eInfochips Limited
303 Parishram Building, 5/B Rashmi Society,
Mithakhali Six Road, Navarangpura,
Ahmedabad - 380009
Gujarat, INDIA.
Tel: +91-79-2656 3705
Fax: +91-79-2656 0722
©2011 Texas Instruments Incorporated
TI Worldwide Technical Support
Internet
TI Semiconductor Product Information Center Home Page
support.ti.com
TI Semiconductor KnowledgeBase Home page
support.ti.com/sc/knowledgebase
Product Information Centers
Americas
Phone +1(972) 644-5580 Fax +1(972)927-6377
Internet/Email support.ti.com/sc/pic/americas.htm
Europe, Middle East and Africa
Phone
European Free Call 00800-ASK-TEXAS
(00800 275 83927)
International +49 (0) 8161 80 2121
Russian Support +7 495 981 0701
Note: The European Free Call (Toll Free) number is not active in all
countries. If you have technical difficulty calling the free call
number, please use the international number above.
Fax +(49) (0) 8161 80 2045
Internet support.ti.com/sc/pic/euro.htm
Japan
Fax
International +81-3-3344-5317 Domestic 0120-81-0036
Internet/Email
International support.ti.com/sc/pic/japan.htm
Domestic www.tij.co.jp/pic
Asia
Phone
International +91-80-413816651-
Domestic Toll-Free-Number Toll-Free-Number
Australia 800-999-084 Malaysia
China 800-820-8682 New Zealand
Hong Kong 800-96-5941 Philippines
India 1-800-425-7888 Singapore
Indonesia Taiwan
001-803-8861-1006
Korea 080-551-2804 Thailand
001-800-886-0010
Fax +886-2-2378-6808 Email
ti-china@ti.com
Internet support.ti.com/sc/pic/asia.htm
Important Notice: The products and services of Texas Instruments
Incorporated and its subsidiaries described herein are sold subject to TI's
standard terms and conditions of sale. Customers are advised to obtain the
most current and complete information about TI products and services
before placing orders. TI assumes no liability for applications assistance,
customer's applications or product designs, software performance, or
infringement of patents. The publication of information regarding any other
company's products or services does not constitute TI's approval, warranty or
endorsement thereof.
The floating bar is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners
eInfochips Literature: EVM6457E_QSG_1.0

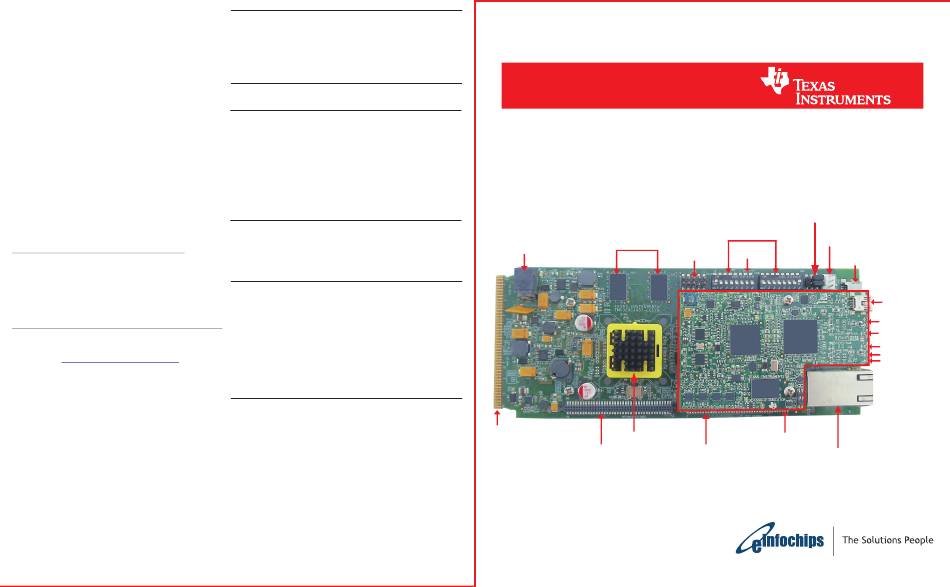

TMDSEVM6457LE
TMS320C6457 Lite Evaluation Module
(with integrated XDS560v2 Emulator)
Quick Setup Guide
+12V DC
1-800-80-3973
0800-446-934
1-800-765-7404
800-886-1028
0800-006800
tiasia@ti.com
AMC-
Type B+
HPI-DC
Boot Mode/Configuration
Settings
DDR2 RAM 256 MB
User
FPGA
Switches
JTAG
C6457 DSP
XDS560v2 Mezzanine
Emulator
NAND Flash 128 MB*,
FPGA*, MSP430 (MMC)*,
LEDs-I2C*
w w w . e i n f o c h i p s . c o m
UART
Route Select
3-pin
Rs232 serial
USB
UART
XDS560v2
USB JTAG
Warm Reset*
Cold Reset*
User LEDs*
LED1*
Blue LED*
Gigabit Ethernet
Jack
(*Note: Beneath the emulator)
