ECLKOUT
CEx
BE[3:0]
EA[21:2]
ED[31:0]
AOE/SDRAS/SSOE †
ARE/SDCAS/SSADS †
AWE/SDWE/SSWE †
† ARE/SDCAS/SSADS, AWE/SDWE/SSWE, and AOE/SDRAS/SSOE operate as SDCAS, SDWE, and SDRAS, respectively, during SDRAM
accesses.
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SYNCHRONOUS DRAM TIMING (CONTINUED)

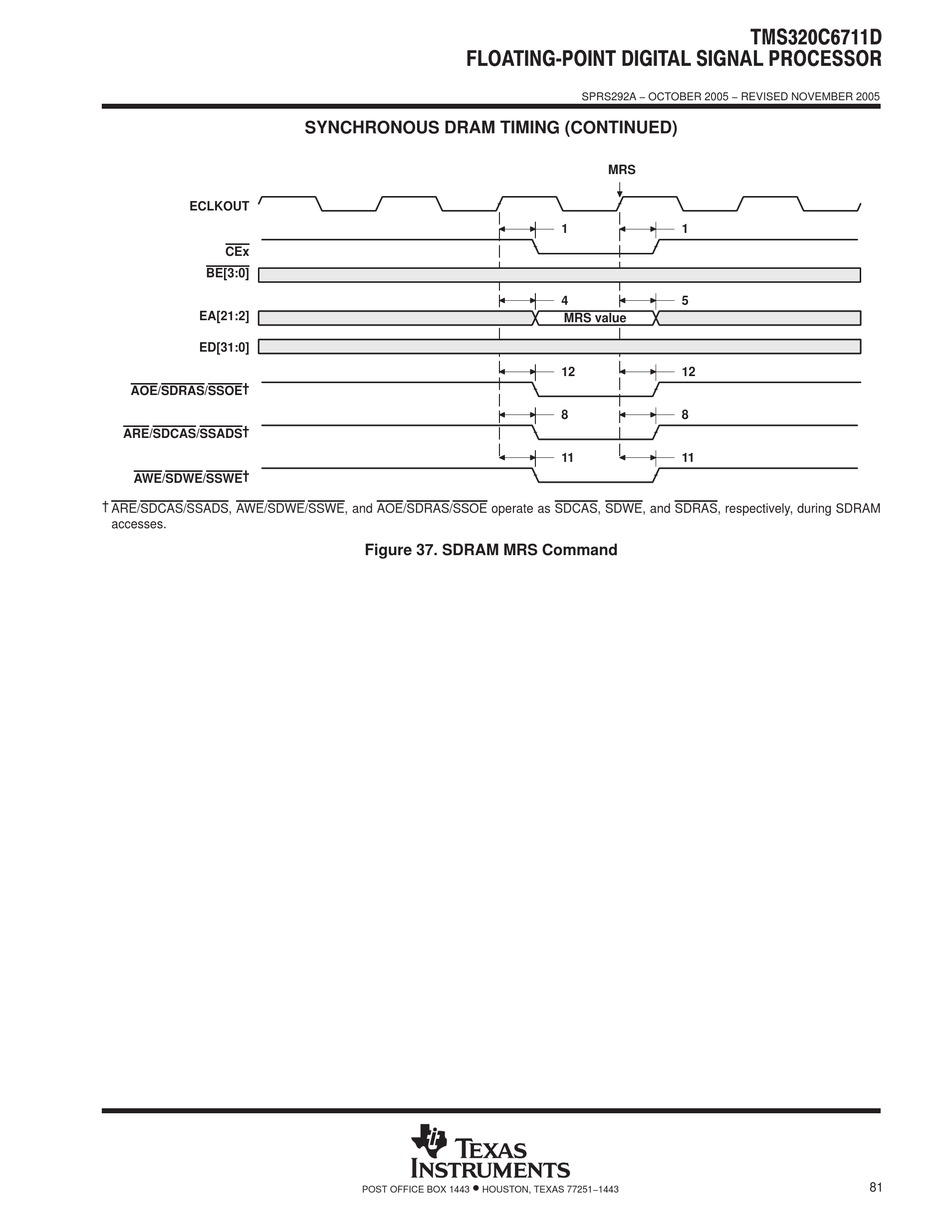

Figure 37. SDRAM MRS Command
•
POST OFFICE BOX 1443
HOUSTON, TEXAS 77251−1443
SPRS292A − OCTOBER 2005 − REVISED NOVEMBER 2005
MRS
1
1
4
5
MRS value
12
12
8
8
11
11
TMS320C6711D
81
