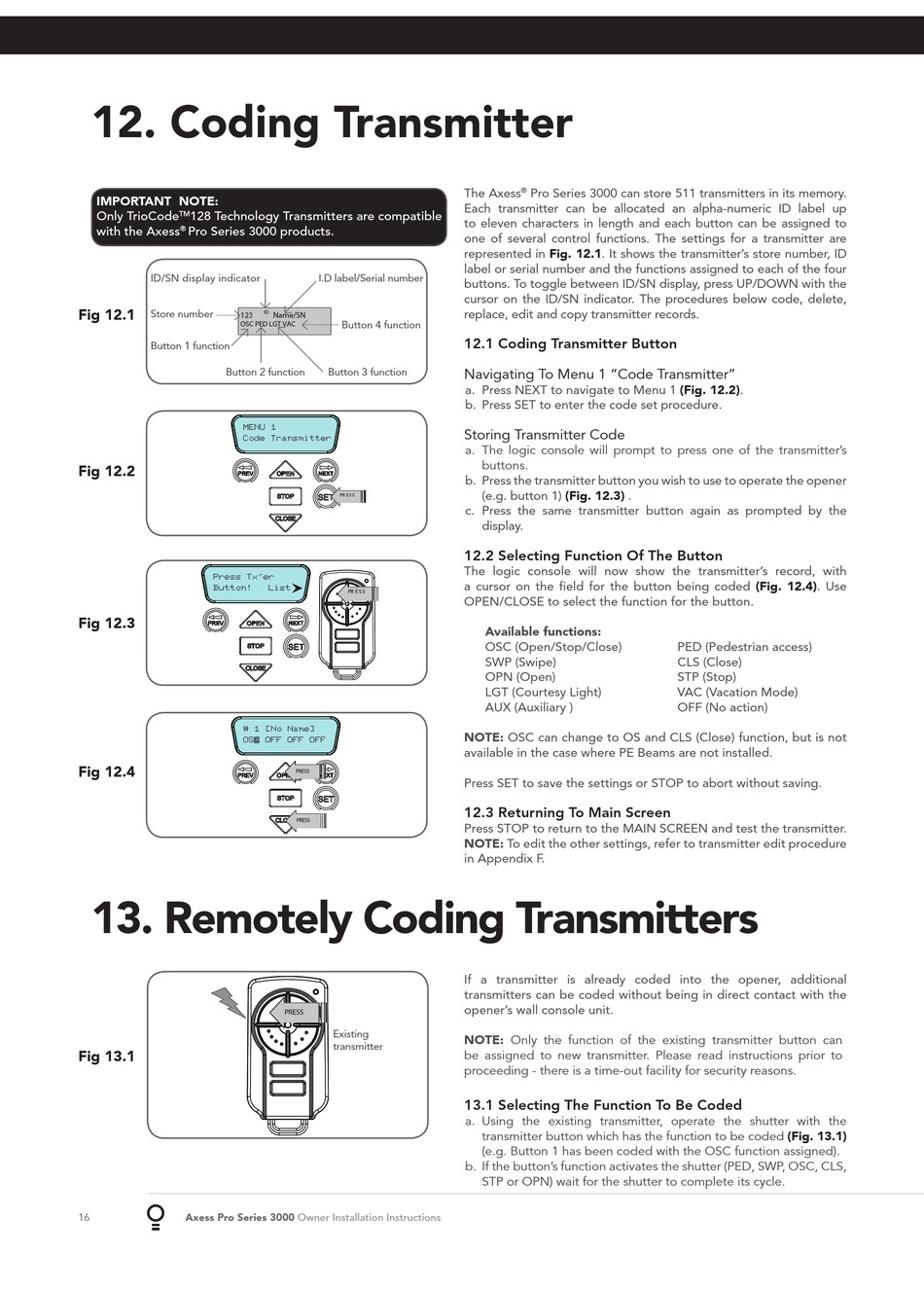

12. Coding Transmitter

IMPORTANT NOTE:
Only TrioCode 128 Technology Transmitters are compatible
TM
with the Axess ® Pro Series 3000 products.
ID/SN display indicator
Fig 12.1
Store number
123
OSC PED LGT VAC
Button 1 function
Button 2 function
MENU 1
Code Transmitter
Fig 12.2
Press Tx'er
Button!
Fig 12.3
# 1 [No Name]
OSC OFF OFF OFF
Fig 12.4

13. Remotely Coding Transmitters

Fig 13.1
16 Axess Pro Series 3000
I.D label/Serial number
ID
Name/SN
Button 4 function
Button 3 function
PR E S S
List
PR E S S
PRESS
PRESS
PRESS
Existing
transmitter
Owner Installation Instructions
The Axess Pro Series 3000 can store 511 transmitters in its memory.
®
Each transmitter can be allocated an alpha-numeric ID label up
to eleven characters in length and each button can be assigned to
one of several control functions. The settings for a transmitter are
Fig. 12.1. It shows the transmitter's store number, ID
represented in
label or serial number and the functions assigned to each of the four
buttons. To toggle between ID/SN display, press UP/DOWN with the
cursor on the ID/SN indicator. The procedures below code, delete,
replace, edit and copy transmitter records.

12.1 Coding Transmitter Button

Navigating To Menu 1 "Code Transmitter"
a. Press NEXT to navigate to Menu 1
b. Press SET to enter the code set procedure.
Storing Transmitter Code
a. The logic console will prompt to press one of the transmitter's
buttons.
b. Press the transmitter button you wish to use to operate the opener
(e.g. button 1) (Fig. 12.3) .
c. Press the same transmitter button again as prompted by the
display.

12.2 Selecting Function Of The Button

The logic console will now show the transmitter's record, with
a cursor on the field for the button being coded
OPEN/CLOSE to select the function for the button.
Available functions:
OSC (Open/Stop/Close)
SWP (Swipe)
OPN (Open)
LGT (Courtesy Light)
AUX (Auxiliary )
NOTE: OSC can change to OS and CLS (Close) function, but is not
available in the case where PE Beams are not installed.
Press SET to save the settings or STOP to abort without saving.

12.3 Returning To Main Screen

Press STOP to return to the MAIN SCREEN and test the transmitter.
NOTE: To edit the other settings, refer to transmitter edit procedure
in Appendix F.
If a transmitter is already coded into the opener, additional
transmitters can be coded without being in direct contact with the
opener's wall console unit.
NOTE: Only the function of the existing transmitter button can
be assigned to new transmitter. Please read instructions prior to
proceeding - there is a time-out facility for security reasons.

13.1 Selecting The Function To Be Coded

a. Using the existing transmitter, operate the shutter with the
transmitter button which has the function to be coded
(e.g. Button 1 has been coded with the OSC function assigned).
b. If the button's function activates the shutter (PED, SWP, OSC, CLS,
STP or OPN) wait for the shutter to complete its cycle.
(Fig. 12.2).
(Fig. 12.4). Use
PED (Pedestrian access)
CLS (Close)
STP (Stop)
VAC (Vacation Mode)
OFF (No action)
(Fig. 13.1)
