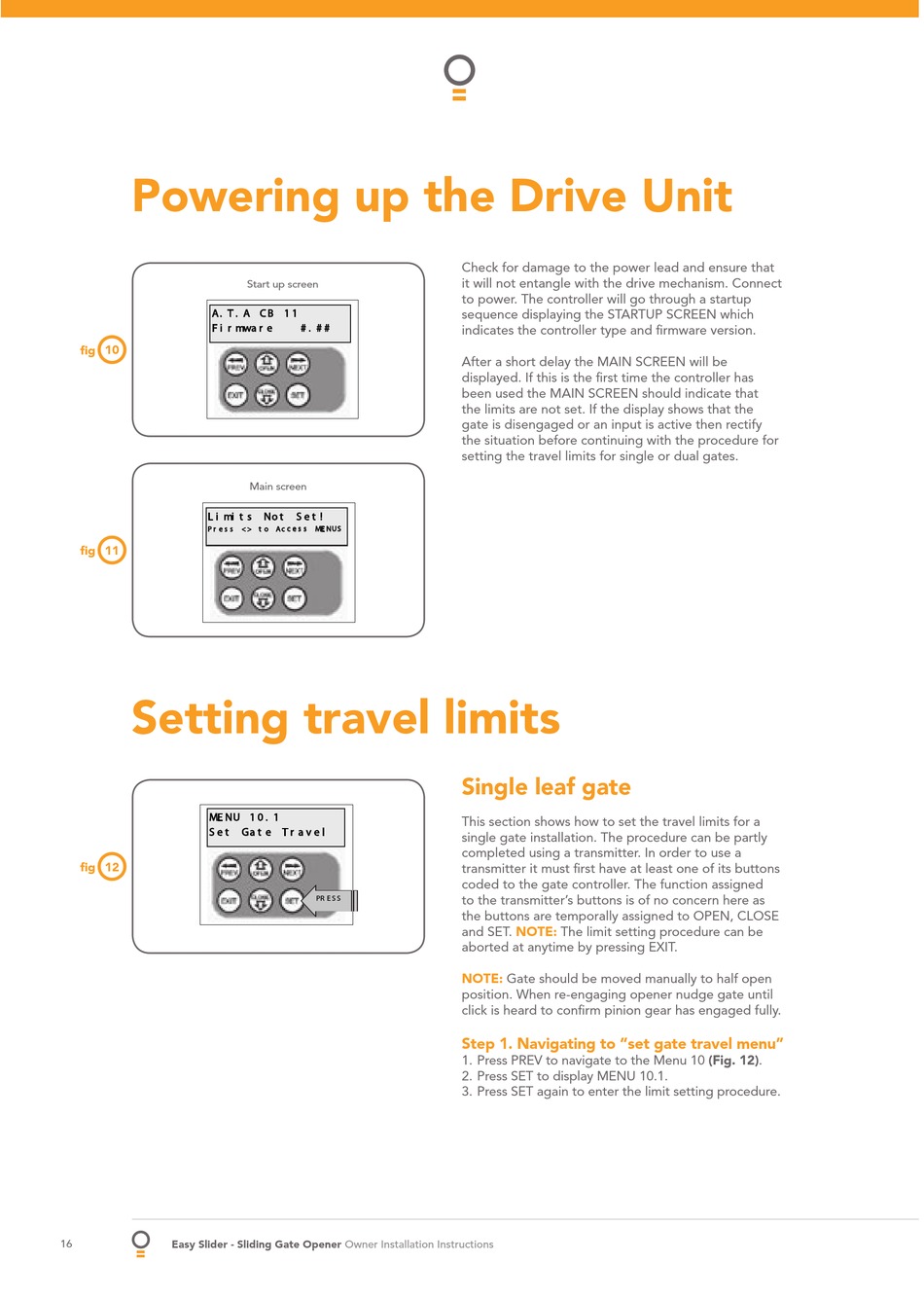

Powering up the Drive Unit
� � � � � � � � �
� � � � � � � �
fig 10
� � � � � �
� � � � �
fig 11
Setting travel limits
� � � � � � � �
� � �
fig 12
16 Easy Slider - Sliding Gate Opener
Start up screen
� � � �
Main screen
� � � � � � �
� � � � � � � � � � � � � � �
� � � � � � � � � �
�� � � �
Owner Installation Instructions
Check for damage to the power lead and ensure that
it will not entangle with the drive mechanism. Connect
to power. The controller will go through a startup
sequence displaying the STARTUP SCREEN which
indicates the controller type and firmware version.
After a short delay the MAIN SCREEN will be
displayed. If this is the first time the controller has
been used the MAIN SCREEN should indicate that
the limits are not set. If the display shows that the
gate is disengaged or an input is active then rectify
the situation before continuing with the procedure for
setting the travel limits for single or dual gates.
Single leaf gate
This section shows how to set the travel limits for a
single gate installation. The procedure can be partly
completed using a transmitter. In order to use a
transmitter it must first have at least one of its buttons
coded to the gate controller. The function assigned
to the transmitter's buttons is of no concern here as
the buttons are temporally assigned to OPEN, CLOSE
and SET. NOTE: The limit setting procedure can be
aborted at anytime by pressing EXIT.
NOTE:
Gate should be moved manually to half open
position. When re-engaging opener nudge gate until
click is heard to confirm pinion gear has engaged fully.
Step 1. Navigating to "set gate travel menu"
1. Press PREV to navigate to the Menu 10 (Fig. 12).
2. Press SET to display MENU 10.1.
3. Press SET again to enter the limit setting procedure.
