Quick Start Guide

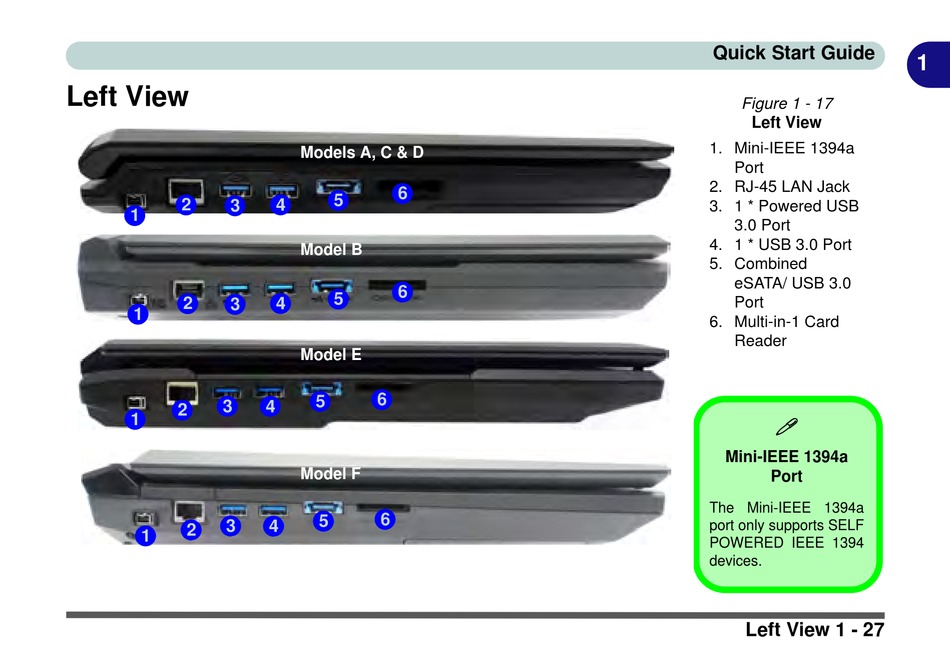

Figure 1 - 17
Left View
1. Mini-IEEE 1394a
Port
2. RJ-45 LAN Jack
3. 1 * Powered USB
3.0 Port
4. 1 * USB 3.0 Port
5. Combined
eSATA/ USB 3.0
Port
6. Multi-in-1 Card
Reader
Mini-IEEE 1394a
Port
The Mini-IEEE 1394a
port only supports SELF
POWERED IEEE 1394
devices.
Left View 1 - 27
1
