Upgrading The Computer

RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.
6

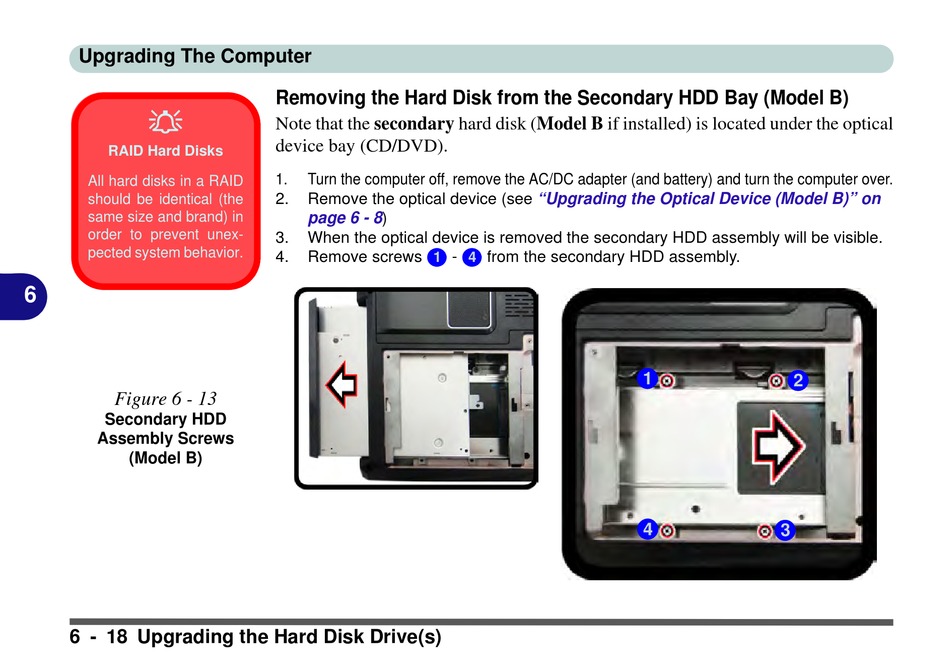

Figure 6 - 13
Secondary HDD
Assembly Screws
(Model B)
6 - 18 Upgrading the Hard Disk Drive(s)

Removing the Hard Disk from the Secondary HDD Bay (Model B)

Note that the secondary hard disk (Model B if installed) is located under the optical
device bay (CD/DVD).
1. Turn the computer off, remove the AC/DC adapter (and battery) and turn the computer over.
2. Remove the optical device (see
page 6 - 8)
3. When the optical device is removed the secondary HDD assembly will be visible.
4. Remove screws -
1
"Upgrading the Optical Device (Model B)" on
from the secondary HDD assembly.
4
1
4
2
3
