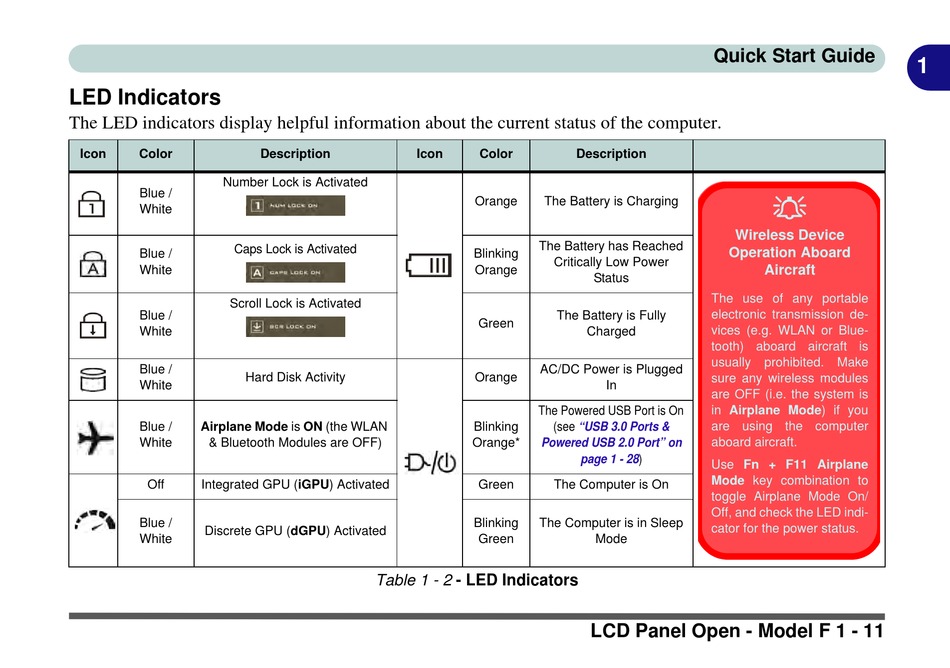

LED Indicators

The LED indicators display helpful information about the current status of the computer.
Icon Color
Number Lock is Activated
Blue /
White
Caps Lock is Activated
Blue /
White
Scroll Lock is Activated
Blue /
White
Blue /
Hard Disk Activity
White
Blue / Airplane Mode is ON (the WLAN
White & Bluetooth Modules are OFF)
Off Integrated GPU (iGPU) Activated
Blue /
Discrete GPU (dGPU) Activated
White
Description Icon
Table 1 - 2 - LED Indicators
Color Description
Orange The Battery is Charging
The Battery has Reached
Blinking
Critically Low Power
Orange
Status
The Battery is Fully
Green
Charged
AC/DC Power is Plugged
Orange
In
The Powered USB Port is On
Blinking (see "USB 3.0 Ports &
Orange* Powered USB 2.0 Port" on
page 1 - 28)
Green The Computer is On
Blinking The Computer is in Sleep
Green Mode
LCD Panel Open - Model F 1 - 11
Quick Start Guide

Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission de-
vices (e.g. WLAN or Blue-
tooth) aboard aircraft is
usually prohibited. Make
sure any wireless modules
are OFF (i.e. the system is
in Airplane Mode) if you
are using the computer
aboard aircraft.
Use Fn + F11 Airplane
Mode key combination to
toggle Airplane Mode On/
Off, and check the LED indi-
cator for the power status.
