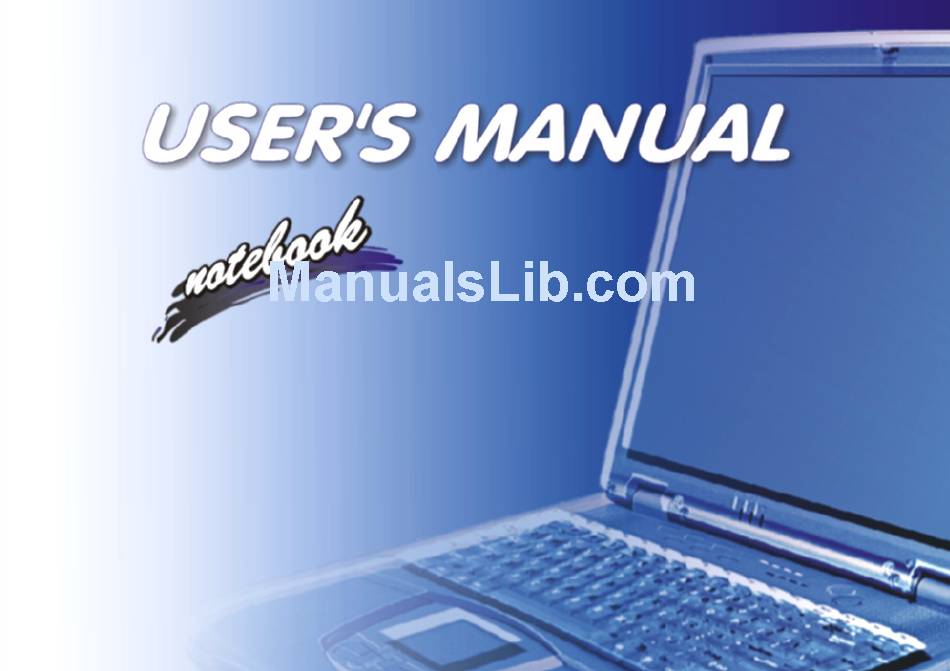

EUROCOM 5600N San Remo User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5600N San Remo and is the answer not in the manual?

Questions and answers

Related Manuals for EUROCOM 5600N San Remo

Summary of Contents for EUROCOM 5600N San Remo

  • Page 2 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent vendor. They assume no re- sponsibility or liability for any errors or inaccuracies that may appear in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

  • Page 3: Trademarks

    Preface Trademarks This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intel- lectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home or other limited viewing uses only unless otherwise authorized by Mac- rovision Corporation.

  • Page 4: Federal Communications Commission (Fcc) Statement

    Preface Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits Warning for a Class B digital device, pursuant to Part 15 of the FCC Rules. Use only shielded ca- These limits are designed to provide reasonable protection against bles to connect I/O de- harmful interference in a residential installation.

  • Page 5: Important Safety Instructions

    Preface IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 6 Preface IMPORTANTES MESURES DE SÉCURITÉ Certaines mesures de sécurité doivent être prises pendant l’utilisa- tion de matérial téléphonique afin de réduire les risques d’incendie, de choc électrique et de blessures. En voici quelquesunes: Ne pas utiliser l’appareil près de l’eau,, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à...

  • Page 7: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To ensure that does not happen, follow these suggestions: 1. Don’t drop it. Make sure it’s on a stable surface. If the compu- ter falls, the case and other components could be damaged.
  • Page 8 Preface 5. Follow the proper working procedures for computer. Do not turn off the computer until you properly shutdown all pro- grams. Do not turn off any peripheral devices when the compu- ter is on. Do not disassemble the computer by yourself. Remember to periodically save your data as data may be lost if the battery is depleted.

  • Page 9: Power Safety

    Preface Power Safety. The computer has specific power requirements: • Only use a power adapter approved for use with this computer. • Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are unsure of your local power specifications, consult your service representative or local power company.

  • Page 10: Battery Precautions

    Preface Battery Precautions Only use batteries designed for this computer • . The wrong battery Battery Disposal type may explode, leak or damage the computer. The product that you • Recharge the batteries using the notebook’s system. Incorrect recharg- have purchased con- ing may make the battery explode.

  • Page 11: Cleaning

    Preface Cleaning Do not apply cleaner directly to the computer, use a soft clean cloth. Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer. Servicing Do not attempt to service the computer yourself. Doing so may vio- late your warranty and expose you and the computer to electric shock.

  • Page 12: Travel Considerations

    Preface Travel Considerations Packing As you get ready for your trip, run through this list to make sure the system is ready to go: 1. Check that the battery pack and any spares are fully charged. 2. Power off the computer and peripherals. 3.
  • Page 13 Preface On the Road In addition to the general safety and maintenance suggestions in this preface, and Appendix B: Troubleshooting, keep these points in mind: Hand-carry the notebook. For security, don’t let it out of your sight. In some areas, computer theft is very common.
  • Page 14 Preface Fly safely. Most airlines have regulations about the use of computers and other electronic devices in flight. These restrictions are for your safety, fol- low them. If you stow the notebook in an overhead compartment, make sure it’s secure. Contents may shift and/or fall out when the compartment is opened.
  • Page 15 Preface Developing Good Work Habits Developing good work habits is important if you need to work in front of the computer for long periods of time. Improper work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints.
  • Page 16 Preface Remember to: • Alter your posture frequently. • Stretch and exercise your body several times a day. • Take periodic breaks when you work at the computer for long periods of time. Frequent and short breaks are better than fewer and longer breaks.
  • Page 17 Preface Lighting Proper lighting and comfortable display viewing angle can reduce eye strain and muscle fatigue in your neck and shoulders. • Position the display to avoid glare or reflections from overhead light- ing or outside sources of light. • Keep the display screen clean and set the brightness and contrast to levels that allow you to see the screen clearly.

  • Page 18: Table Of Contents

    Preface Contents Notice ................... I-I Trademarks ...................I-II Federal Communications Commission (FCC) Statement ..I-III Instructions for Care and Operation ........... I-VI Power Safety................I-VIII Battery Precautions ..............I-IX Cleaning ..................I-X Servicing ..................I-X Travel Considerations ..............I-XI Introduction ........... 1-1 Overview ..................1-1 The Manual ..................1-2 Advanced Users ................1-2...
  • Page 19 Preface Getting To Know Your Computer ..........1-6 Top View with LCD Panel Closed ..........1-7 Top View with LCD Panel Open ..........1-8 LCD Panel ................... 1-9 LED Power & E-Mail Indicators ..........1-9 Close Cover Switch ..............1-9 Stereo Speakers ................
  • Page 20 Preface CD Device ..................1-18 Infrared Transceiver ..............1-19 Rear View ...................1-20 Security Lock ................1-21 Headphone-Out Jack ..............1-21 Microphone-In Jack ..............1-21 S/PDIF Out Port .................1-21 Mini - IEEE 1394 Port ...............1-22 Four USB Ports .................1-22 RJ-11 Phone Jack ...............1-22 RJ-45 LAN Jack .................1-23 S-Video Connector ..............1-23 External Monitor (CRT) Port .............1-23 Printer/Parallel Port ..............1-23...
  • Page 21 Preface AC Adapter .................. 2-2 Battery ..................2-3 Recharging Battery with the AC Adapter ........2-4 Proper handling of the Battery Pack ..........2-4 Turning On The Computer ............2-5 LED Indicators ................2-6 LED Power & Auto Mail Indicators ..........2-7 Auto Mail Checker ..............
  • Page 22 Preface Programming the Hot-Keys ............2-20 Function Keys ................2-22 The Numeric Keypad ..............2-23 Function Keys and Numeric Keypad .........2-24 TouchPad and Buttons ...............2-25 Configuring The TouchPad And Buttons ........2-26 Mouse ..................2-27 Adding a Printer .................2-28 USB Printer ................2-28 Install Instructions: ..............2-28 Parallel Printer ................2-29 Install Instructions: ..............2-29 Advanced Controls ........
  • Page 23 Preface Display Options ................. 3-10 Enabling Other Displays ............3-11 Clone Mode ................3-12 Extended Desktop Mode ............3-13 Enabling TV Display ..............3-15 Power Management Features ............. 3-16 Advanced Configuration and Power Interface (ACPI) ....3-16 Advanced Power Management (APM 1.2) ........ 3-16 Intel SpeedStep Technology Applet ..........
  • Page 24 Preface Battery FAQ ................3-25 Conserving Battery Power ............3-26 Display Brightness ..............3-26 Applications and External Devices ..........3-26 Removing and Replacing The Battery ........3-27 Audio “DJ” CD Player ..............3-29 Configuring the Infrared Settings for FIR ........3-31 Enabling Infrared Communication In Windows 98SE ....3-32 Drivers &...
  • Page 25 Preface Intel SpeedStep (Win98SE) ............4-10 Windows ME ................4-11 Chipset (WinME) ............... 4-11 Audio (WinME) ................. 4-11 Modem (WinME) ..............4-12 LAN (WinME) ................4-13 Video (WinME) ................. 4-13 TouchPad (WinME) ..............4-14 Hot-Key (WinME) ..............4-14 AutoMail (WinME) ..............4-15 Intel SpeedStep (WinME) ............
  • Page 26 Preface Chipset (WinXP) ................4-21 Audio (WinXP) ................4-21 Modem (Win XP) ...............4-22 LAN (Win XP) ................4-23 Video (WinXP) ................4-24 TouchPad (WinXP) ..............4-24 Hot-Key (WinXP) ..............4-25 AutoMail (WinXP) ..............4-25 BIOS Utilities ......... 5-1 Overview ..................5-1 Important BIOS Settings ..............5-2 The Power-On Self Test (POST) ..........5-3 POST Screen ................5-4 Failing the POST ................5-5 Fatal Errors ...................5-5...
  • Page 27 Preface Security Menu ................5-14 Boot .................... 5-16 Exit Menu .................. 5-18 Upgrading The Computer .....6-1 Overview ..................6-1 When Not to Upgrade ..............6-2 Upgrading the Device in Bay One ..........6-3 Upgrading the Hard Disk Drive ........... 6-5 Removing The Hard Disk ............
  • Page 28 Preface Upgrading and Adding New Hardware/Software ......7-6 Power ....................7-8 Display ..................7-15 Hard Disk Drive (HDD) .............7-19 Boot Password ................7-19 Floppy Disk Drive (FDD) ............7-20 Audio ..................7-21 CD Device ..................7-23 PC Card ..................7-26 The PC Card Problem in Windows 98 ........7-27 The PC Card Problem in Windows Me ........7-28 Keyboard and Mouse ..............7-29 Printer ..................7-30...
  • Page 29 Preface Memory ..................A-1 BIOS ................... A-2 LCD .................... A-2 Display ..................A-2 Storage ..................A-3 Audio ..................A-3 PC Card ..................A-3 Interface ..................A-4 Communication ................A-4 Power Management ..............A-5 Power ..................A-5 Indicators ..................A-5 Environmental Spec ..............A-6 Physical Dimensions ..............

  • Page 30: Introduction

    Introduction Chapter 1: Introduction Overview What this chapter covers: • The Manual — how to use it • Quick Start Guide — the minimum you need to know • System Map — navigating around your computer Overview 1 - 1...

  • Page 31: The Manual

    Introduction The Manual This manual refers to the hardware and essential software required to run your notebook computer. Depending on how your system is con- Advanced Notes figured, some or all of the features described may already be set up. Advanced users should check the light...

  • Page 32: Warning Boxes

    Introduction Warning Boxes No matter what your level please pay careful attention to the warning and safety information indicated by the symbol. Also please note the safety and handling instructions as indicated in the Preface. The Manual 1 - 3...

  • Page 33: Not Included

    Introduction Not Included Operating Systems (e.g. Windows 98 Second Edition, Window Me, Windows 2000 Professional, Windows XP etc.) have their own man- uals as do applications (e.g. word processing, spreadsheet and data- base programs). If you have questions about the operating systems or programs then please consult the appropriate manuals.

  • Page 34: Quick Start Guide

    Introduction Quick Start Guide This guide assumes that you are already familiar with computers and Peripheral Devices can tell at a glance what and where all the key components are. If you are not that comfortable with this type of device, then please refer to Please note that pe- the following pages, which give an overview of the system.

  • Page 35: System Map

    Introduction System Map Your notebook PC has a lot of built-in features. Most of these are en- abled by your operating system. Further explanations of the various subsystems are covered in the chapter or pages indicated. Getting To Know Your Computer The following graphics will help you to become familiar with the ba- sic functions, and to learn the location of the various ports and com- ponents of your computer.

  • Page 36: Top View With Lcd Panel Closed

    Introduction Top View with LCD Panel Closed Figure 1 - 1 Top View with LCD Panel Closed 1. LCD Latch 2. LED Power & E- Mail Indicators To open the LCD display: 1. Place the computer on a stable surface. 2.

  • Page 37: Top View With Lcd Panel Open

    Introduction Top View with LCD Panel Open Figure 1 - 2 Top View with LCD Panel Open 1. LCD 2. LED Power & E-Mail Indicators 3. Close Cover Switch 4. Speakers 5. Hot-Key buttons 6. LED Status Indicators 7. Power Button 8.

  • Page 38: Lcd Panel

    Introduction LCD Panel The notebook PC comes with a 14.1" or 15" TFT LCD (Liquid Crys- tal Display) screen depending upon the configuration purchased. LED Power & E-Mail Indicators These indicators display the current power source and power source status of the computer. The third indicator may be configured to give a visual confirmation when e-mail is received in the default e-mail program (See “Auto Mail Checker”...

  • Page 39: Hot-Key Buttons

    Introduction Hot-Key Buttons The three hot keys allow you instant access to your default Internet browser, default e-mail program, and an application of your choice. To learn how to set the buttons see “Hot-Keys” on page 2 - 19. LED Status Indicators These display the system’s operational status.

  • Page 40: Power Button

    Introduction Power Button Press this button to turn your computer on or off (See “ Turning On The Computer” on page 2 - 5). This button may also be used as a suspend/resume key, once configured as such in the power management control panel of your operating system (“Configuring the Power Button”...

  • Page 41: Touchpad & Buttons

    Introduction TouchPad & Buttons The pointing device features a sensitive glide pad for precise move- ments. It functions the same way as a two-button mouse. The right TouchPad button is the same as the right mouse button; the left TouchPad button is the same as the left mouse button. The central buttons may be used to scroll up and down, or they may be config- ured to perform a variety of function (See “Configuring The TouchPad And Buttons”...

  • Page 42: Front View

    Introduction Front View Figure 1 - 3 Front View 1. Latch 2. Audio “DJ” CD Player Control Panel On/Off Switch 3. Previous Track 4. Next Track 5. LCD 6. Play Pause Audio “DJ” CD Player 7. Stop 8. Volume Down The built-in standalone audio CD player gives you direct hardware 9.

  • Page 43: Microphone

    Introduction Note: If you are playing a CD in the audio player you will not be able to use the power button to switch the computer on. Switch the CD audio player off first, then press the power button to turn on the computer.

  • Page 44: Left Side View

    Introduction Left Side View Figure 1 - 4 Left Side View 1. DC-In Jack 2. Vent 3. PC Card Slot 4. PC Card Eject Button DC-In Jack Plug the supplied AC adapter into this jack to power your notebook. PC Card Slot This is a Type-II PC card slot (also previously referred to as PCM- Overheating CIA).

  • Page 45: Right Side View

    Introduction Right Side View Figure 1 - 5 Right Side View 1. Device Bay One 2. Device Bay Two 3. Infrared Trans- ceiver Device Bays One & Two There are two storage bays on your notebook computer: Bay One will have ONE of the following interchangeable devices, depending on the configuration purchased: •...

  • Page 46: Fdd (Floppy Disk Drive)

    Introduction 3.5" FDD (Floppy Disk Drive) If your computer has the floppy disk option, it is a 3.5”, 3-mode, 1.44 MB fixed floppy disk drive. For more information please refer to Media Warning “The Floppy Disk Drive (FDD)” on page 2 - 13. Don’t try to remove a floppy disk while the system is accessing it.

  • Page 47: Cd Device

    Introduction CD Device A 5.25” CD-ROM drive, or DVD-ROM drive, or CD-RW, or Com- bination CD-RW and CD-ROM Drive (12.7mm height) is standard CD Emergency Eject in Bay 2 depending on the model you purchased. There may also be If you need to manually another CD device in Bay 1.

  • Page 48: Infrared Transceiver

    Introduction Infrared Transceiver The infrared transceiver enables communication between the com- puter and another similarly equipped device (e.g. PDA or mobile Infrared phone), and is 115.2k SIR, 4M bps FIR, IrDA 1.1 compliant (See Communication “Configuring the Infrared Settings for FIR” on page 3 - 31). For The Infrared transceiv- further information, please refer to the manual of the device you wish er operates on a “Line...

  • Page 49: Rear View

    Introduction Rear View Figure 1 - 7 Rear View 2 3 4 5 1. Security Lock 2. Headphone-Out Jack 3. Microphone-In Jack 4. S/PDIF Out Port 5. Mini - IEEE 1394 Port 6. 4 USB Ports 7. RJ-11 Phone Jack 8.

  • Page 50: Security Lock

    Introduction Security Lock To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be purchased at any computer store. Headphone-Out Jack Headphones or speakers may be connected through this jack. Note: Set your system’s volume to a reduced level before connecting to this jack.

  • Page 51: Mini - Ieee 1394 Port

    Introduction Mini - IEEE 1394 Port This allows high speed connection to various peripheral devices, e.g. external disk drives and digital cameras (See note below). IEEE 1394 The IEEE 1394 port only supports SELF POWERED IEEE 1394 devices. Four USB Ports These ports are hardware interfaces for low-speed peripherals such as a keyboard, mouse, joystick, scanner, printer or telephony devic- es.

  • Page 52: Rj-45 Lan Jack

    Introduction RJ-45 LAN Jack This port supports LAN (Network) functions. Note: Broadband (e.g. ADSL) modems usually connect to the LAN port. S-Video Connector Connect your television to your computer and view DVD’s, VCD’s or anything else your computer can display. You will need an S-Vid- eo cable to make the connection.

  • Page 53: Ps/2 Type Port

    Introduction PS/2 Type Port Connect an external PS/2 type mouse or keyboard to this port. You can use a “Y” splitter if you want to attach both. 1 - 24 System Map...

  • Page 54: Bottom View

    Introduction Bottom View Figure 1 - 8 Bottom View 1. Vent/Fan Outlets 2. Device Bay Two 3. Device Bay Two Release Latch 4. Device Bay One 5. Battery 6. Battery Release Latch Overheating To prevent your com- puter from overheating make sure nothing...

  • Page 55: Wireless Network Card

    Introduction Wireless Network Card Your computer may have an optional 802.11b Wireless Networking solution. If included, the antennae and other components are not ex- ternally visible (please check with your service representative). Peripheral Devices Peripheral devices can be added to the computer through the ports, jacks and slots on the right side and rear of the computer.

  • Page 56: Using The Computer

    Using The Computer Chapter 2: Using The Computer Overview To learn more about your computer, please read this chapter. This chapter includes: • The Power Sources • Turning on the Computer • LED Indicators • The Hard Disk Drive • The Floppy Disk Drive •...

  • Page 57: The Power Sources

    Using The Computer The Power Sources The computer can be powered by either an AC adapter or a battery Shutdown pack. Please note that you should always shut AC Adapter your computer down Use only the AC adapter that comes with your computer. The wrong by choosing the Shut type of AC adapter will damage the computer and its components.

  • Page 58: Battery

    Using The Computer Battery The battery allows you to use your notebook computer while you are on the road or an electrical outlet is unavailable. Battery life varies depending on the applications and the configuration you're using. To increase battery life, let the battery discharge completely before re- charging.

  • Page 59: Recharging Battery With The Ac Adapter

    Using The Computer Recharging Battery with the AC Adapter The battery pack automatically recharges when the AC adapter is at- tached and plugged into an electrical outlet. If the computer is pow- ered on, and in use, it will take several hours to fully recharge the battery.

  • Page 60: Turning On The Computer

    Using The Computer Turning On The Computer Now you are ready to begin using your computer. To turn it on sim- ply press the power button on the front panel. Power Button as Standby or Hibernate When the computer is on, you can use the power button as a hot-key Button button when it is pressed for less than 4 seconds.

  • Page 61: Led Indicators

    Using The Computer LED Indicators There are two sets of LED indicators (LED Power & Auto Mail In- dicators and LED Status Indicators) on your computer that will display helpful information about the current status of the computer. Figure 2 - 3 LED Indicators The LED Power &...

  • Page 62: Led Power & Auto Mail Indicators

    Using The Computer LED Power & Auto Mail Indicators Table 2 - 1 LED Power & Icon Color Description Automail Indicators Yellow AC Power is plugged in Green The computer is on The system is in the configured standby Blinking Green mode Low Battery Warning Yellow...

  • Page 63: Auto Mail Checker

    Using The Computer Auto Mail Checker After you have installed the driver for the Auto Mail program (See “What To Install” on page 4 - 2) you may then configure it to give you notification when you receive new mail. You must be online to receive this notification (note that this program only supports the POP3 protocol), and your default mail program does not need to be open.
  • Page 64 Using The Computer You may then configure the options for your mailserver, name, pass- word, program and method(s) of notification. Note Check with your Inter- net Service Provider, network administrator or Mail Service provid- er for details on what to put on these pages.

  • Page 65: Special Group

    Using The Computer Special Group You may also define the users you want to appear in this group (See Figure 2 - 5 Special Group Setup). If you choose to enable the Mail LED then the icon will flash when you receive new mail in your default mail program.

  • Page 66: Led Status Indicators

    Using The Computer LED Status Indicators Once your computer is on and in use, the LED status indicators will display the system's operational status. Table 2 - 1 LED Status Indicators Icon Color Description Green Floppy/Hard disk/CD Device activity Green Number Lock is activated Scroll Lock Green...

  • Page 67: The Hard Disk Drive

    Using The Computer The Hard Disk Drive The hard disk drive is used to store your data in the notebook com- puter. It is mounted in a removable case and can be taken out to ac- commodate other 2.5” IDE hard disk drives with a height of 9.5 mm. The system supports PIO mode 4 /ATA-33/66/100 (Ultra DMA).

  • Page 68: The Floppy Disk Drive (Fdd)

    Using The Computer The Floppy Disk Drive (FDD) The computer may be equipped with a fixed 1.44 MB, 3.5” floppy disk drive module depending on the configuration purchased. By de- Media Warning fault it is drive “A:” and can be used as a boot device if properly set Don’t try to remove a in the BIOS (Refer to “Boot”...

  • Page 69: The Cd/Dvd Device

    Using The Computer The CD/DVD Device There are two bays for a combination of a CD-ROM, or DVD-ROM, Sound Volume or CD-R, or CD-RW, or Combination CD-RW and CD-ROM drive. Adjustment depending on the model you purchased (You may alternatively have a floppy disk drive or secondary battery in one bay).

  • Page 70: Handling Cds Or Dvds

    Using The Computer Handling CDs or DVDs Proper handling of your CDs/DVDs will prevent them from being damaged. Please follow the advice below to make sure that the data Media Warning stored on your CD-ROM / DVD-ROM discs can be accessed.Re- member to: When manually eject- ing a CD/DVD disc,...

  • Page 71: Dvd Regional Codes

    Using The Computer DVD Regional Codes DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is permanent. This cannot be altered even if you change your operating system or you use the module in another computer. Figure 2 - 8 DVD Regional Codes (Windows XP)

  • Page 72: To Change The Regional Codes

    Using The Computer To Change the Regional Codes Go to the Control Panel in WindowsXP/Windows 2000 and double- Changing Region click System, click Device Manager, then click the + next to DVD/ Codes in Windows CD-ROM drives. Double-click on the DVD-ROM device to bring 98/Me up the Properties menu, and select the DVD Region (tab) to bring up the control panel as seen in “DVD Regional Codes (Windows...

  • Page 73: The Pc Card Slot

    Using The Computer The PC Card Slot The computer is equipped with a type II PCMCIA 3.3V/5V socket The PC Card Problem which supports CardBus. The PC Card slot “1” is on the left of the in Windows 98SE computer. See “The PC Card Problem in Windows Inserting And Removing PC Cards...

  • Page 74: Hot-Keys

    Using The Computer Hot-Keys The computer has two sets of Hot-Keys, three Hot-Key buttons on the computer, and the function key combinations on the keyboard. Figure 2 - 9 Hot-Keys Hot-Key Buttons These keys access the Internet, e-mail or a user-defined application with one quick button press.

  • Page 75: Programming The Hot-Keys

    Using The Computer Programming the Hot-Keys Table 2 - 3 Hot-Key Functions Hot-Key Function Activate the e-mail box. Activate the default Internet browser. Activate the user specified application e.g Microsoft Word or Excel. After installing the Hot-Key driver (See “What To Install” on page 4 - 2), you may have to configure or change the settings.
  • Page 76 Using The Computer 1. Right click the Hot-Key driver icon on the taskbar and the following menu will appear. Application.exe You will need to locate the actual application executable (.exe) file, 2. Select Setup from the menu and scroll to Application 1 and not just the shortcut.

  • Page 77: Function Keys

    Using The Computer Function Keys On the bottom-left of the keyboard is the Fn key or Function key. Other Keyboards The Fn key allows you to change operational features instantly. To use the following functions, press and hold the Fn key; then press the If your keyboard is appropriate function key (F3, F4, F5 etc.) located at the top of your damaged or you just...

  • Page 78: The Numeric Keypad

    Using The Computer The Numeric Keypad The keyboard has an embedded numerical keypad for easy numeric Special Characters data input. The keypad has a yellow type face (See “Numeric Key- pad” on page 2 - 24). Some software appli- cations allow number-keys To use the keypad simply:...

  • Page 79: Function Keys And Numeric Keypad

    Using The Computer Function Keys and Numeric Keypad Figure 2 - 10 Function Keys Figure 2 - 11 Numeric Keypad 2 - 24 The Numeric Keypad...

  • Page 80: Touchpad And Buttons

    Using The Computer TouchPad and Buttons The pointing device features a sensitive glide pad for precise move- ments. It functions the same way as a two-button mouse (the central Rocker Switch may be configured to function as a “third” button if you prefer).

  • Page 81: Configuring The Touchpad And Buttons

    Using The Computer Configuring The TouchPad And Buttons Once you have installed the TouchPad drivers (See “What To In- stall” on page 4 - 2) you can configure the functions from the TouchPad driver icon on the taskbar. You may then configure the TouchPad tracking, buttons and Rocker Switch etc.

  • Page 82: Mouse

    Using The Computer Mouse You can also add a mouse to your computer. You can use a mouse Mouse Driver either through the PS/2 interface or the USB ports (at the rear of the computer). If you are using an ex- ternal mouse your op- erating system may be able to auto-configure...

  • Page 83: Adding A Printer

    Using The Computer Adding a Printer The most commonly used peripheral is a printer. The following con- ventions will help you to add a printer, however it is always best to refer to the printer manual for specific instructions and configuration options.

  • Page 84: Parallel Printer

    Using The Computer Parallel Printer This is still the most common type of printer. A Parallel to USB con- verter may be purchased at most computer stores. Parallel to USB Converter Note Install Instructions: If you are using a Par- Set up the printer according to its instructions (unpacking, allel to USB converter, paper tray, toner/ink cartridge etc.)
  • Page 85 Using The Computer 2 - 30...

  • Page 86: Advanced Controls

    Advanced Controls Chapter 3: Advanced Controls Overview This chapter covers: Drivers • Advanced video controls You are unable to use • Power and battery management features most advanced con- • Audio DJ trols until the neces- • Infrared Communication (FIR) sary drivers utilities are properly in-...

  • Page 87: Advanced Video Controls

    Advanced Controls Advanced Video Controls This section is about making adjustments for the LCD, switching dis- Protecting the LCD play devices. Do not allow any for- Opening the LCD eign objects (i.e. paper or plastic) to get be- you open the lid, adjust it so you can look at the screen straight tween the lid/LCD and on, without any glare.

  • Page 88: Advanced Video Controls

    Advanced Controls Advanced Video Controls This section is about making adjustments for the LCD, and switching Refresh Rates display devices. The standard refresh Making Adjustments For The LCD rate for all LCD panels is 60Hz. There is no The higher the resolution you set the LCD for, the more information need to adjust this.

  • Page 89: Video Driver Controls

    Advanced Controls Video Driver Controls The video interface lets you change the screen resolution and color Screen Resolution/ output to whatever is most comfortable/efficient for you. This is a Area Note matter of hardware, video memory and the driver for your operating system.
  • Page 90 Advanced Controls Access the Display Properties control panel as outlined in “Making Adjustments For The LCD” on page 3 - 3, or from the icon in the taskbar in Windows as indicated below. Figure 3 - 2 ATI Display Settings Menu Right-click the ATI icon in the taskbar and point to Settings and click Display Settings.
  • Page 91 Advanced Controls Figure 3 - 3 Advanced Display Properties Click the Advanced (button) to bring up the options tabs. Clicking through these tabs allows you to make any video adjustments you re- quire. 3 - 6 Video Driver Controls...
  • Page 92 Advanced Controls Access the menus from ATI taskbar to get further help on display op- tions, TV options etc. Right-click the ATI icon in the taskbar and point to Help or Troubleshooting (Figure 3 - 4). Figure 3 - 4 ATI Help &...

  • Page 93: Display Devices

    Advanced Controls Display Devices Besides the built-in LCD, you can also use an external CRT connect- Drivers ed to the VGA port as your display device. You may also connect a TV. The following are the display options: You are unable to use most advanced con- trols until the neces- 1.

  • Page 94: Attaching A Monitor (Crt)

    Advanced Controls Attaching a Monitor (CRT) If you prefer to use a monitor (CRT), connect it to the External Mon- itor (CRT) port on the rear panel (See “Rear View” on page 1 - 20). Vertical Refresh Rate The vertical refresh rate of your CRT is impor- tant.

  • Page 95: Display Options

    Advanced Controls Display Options TV Support Windows 98SE, You cannot set your Display Mode Windows 2000 flat panel display and Me & XP TV to the same display mode. Single Multiple - Clone Mode Multiple - Extended Not Available Desktop Mode Single - Either the LCD, CRT or TV as a display device Multiple (Clone) - The LCD, CRT or TV outputting the same view (you can apply different display modes with different resolutions and refresh...

  • Page 96: Enabling Other Displays

    Advanced Controls Enabling Other Displays In the Advanced ATI Mobility Radeon Properties (Figure 3 - 3 on page 3-6) click on Display to get the other display options, including those for TV (different OS’s will appear with different options). Click the enable/disable button for the display device you wish to use.

  • Page 97: Clone Mode

    Advanced Controls Clone Mode Clone Mode simply shows an exact copy of the Primary display desktop on the other display(s). This mode will drive multiple dis- plays with the same content. Use this feature to display the screen through a projector for a presentation. Each display device can be configured independently as this allows you to set the options for overhead projectors etc., which require specific resolutions and re- fresh rates.

  • Page 98: Extended Desktop Mode

    Advanced Controls Extended Desktop Mode The system supports Extended Desktop (The LCD and a CRT showing different views) in multiple display environments in Win- dows 98SE, WindowsMe and WindowsXP, but this mode is NOT supported in Win2000. An Extended Desktop creates a desktop spanning multiple displays and acts as a large workspace.
  • Page 99 Advanced Controls Figure 3 - 7 Extended Desktop Monitor Arrangement Help Use the Display Properties control panel to drag the monitors to Further help is availa- ble through the menus match the physical arrangement you wish to use. In the example accessed from shown in Figure 3 - 7 the primary monitor 1 is on the right, the other...

  • Page 100: Enabling Tv Display

    Advanced Controls Enabling TV Display To display desktop images on a TV display, connect the TV to your TV Format LCD PC by using an S-Video cable from the TV to the connector at the rear of the computer (See “Rear View” on page 1 - 20). You will If you need to change need to enable the TV display from the control panel in (See “Figure format...

  • Page 101: Power Management Features

    Advanced Controls Power Management Features To conserve power, especially when using the battery, your note- OS Note book computer has two types of power management available, ACPI and APM. Power management conserves power by controlling indi- Power management vidual components of the computer (the monitor and hard disk drive) functions will vary...

  • Page 102: Intel Speedstep Technology Applet

    Advanced Controls Intel SpeedStep Technology Applet This applet helps your system take advantage of a SpeedStep-en- Mobile CPU hanced CPU’s capabilities, such as that as found in your notebook if Intel SpeedStep will you have the mobile CPU option. only take advantage of the enhanced capabili- Once activated, the system can dynamically monitor and adjust the ties of the mobile CPU.

  • Page 103: Enabling Power Management/Options

    Advanced Controls Enabling Power Management/Options The power management/options are enabled through the Control BIOS Vs OS Panel in your Windows system (Power Management in Windows 98SE, and Power Options in the Windows ME, 2000 and XP). With Currently power man- other Operating Systems you may have power management avail- agement from...

  • Page 104: Conserving Power Through Individual Components

    Advanced Controls Conserving Power Through Individual Compo- nents Monitor Standby To conserve power, you can set the monitor to turn off after a speci- fied time. Hard Disk Standby The computer's hard disk motor will be turned off if the hard disk drive has not been accessed for a specified period of time.

  • Page 105: Conserving Power Throughout The Whole System

    Advanced Controls Conserving Power Throughout The Whole Sys- With this function you can stop the notebook’s operation and restart Hibernate Mode in Windows 98SE where you left off. This system features Standby and Hibernate suspend mode levels (Hibernate mode will need to be enabled by Hibernate Mode is not clicking the option in the Hibernate tab in the Power Options con- available in Windows...

  • Page 106: Standby

    Advanced Controls Standby Standby saves the least amount of power, but takes the shortest time to return to full operation. During Standby the hard disk is turned off, and the CPU is made to idle at its slowest speed. All open applica- tions are retained in memory.

  • Page 107: Hibernate

    Advanced Controls Hibernate Hibernate uses no power and saves all of your information on a part of the HDD before it turns the system off. Although it saves the most Hibernate Mode in Windows 98SE power it takes the longest time to return to full operation. You can set your notebook to automatically enter Hibernate mode when the bat- Hibernate Mode is not tery power is almost depleted.

  • Page 108: Configuring The Power Button

    Advanced Controls Configuring the Power Button The Power button may be set to send the computer in to either Stand- by or Hibernate modes (Figure 3 - 11). In Standby mode the LED will flash green, in Hibernate mode the LED will be off. If you are in a power saving mode set to save power through individual components (e.g.

  • Page 109: Battery Information

    Advanced Controls Battery Information Please follow these simple guidelines to get the best use out of your CAUTION battery. Danger of explosion if New Battery battery is incorrectly replaced. Always charge a new battery before using it. Replace only with the Battery Life same equivalent...

  • Page 110: Battery Faq

    Advanced Controls Battery FAQ How do I completely discharge the battery? Use the computer with battery power until it shuts down due to a low battery. Don’t turn off the computer by yourself even when you see a message that indicates the battery is critically low, just let the com- puter use up all of the battery power and shut down on its own (it is best to disable the Power Management functions in the Control Panel).

  • Page 111: Conserving Battery Power

    Advanced Controls Conserving Battery Power Display Brightness The LCD display consumes a lot of power, so lowering the bright- ness level will save power. Applications and External Devices Different applications and external devices consume battery power even when they are not being used. To conserve battery power we recommend: •...

  • Page 112: Removing And Replacing The Battery

    Advanced Controls Removing and Replacing The Battery For the most part you will not need to remove your battery. If you follow the tips given to manage and extend your battery life on the preceding pages your battery should last a long time. However there may be times when you are required to remove, swap or replace the battery.
  • Page 113 Advanced Controls 4. The battery will pop-up and can be lifted out of the computer. 5. Slide the new battery in and carefully push it down until the latch snaps back in to position. Figure 3 - 13 Battery Out 3 - 28 Removing and Replacing The Battery...

  • Page 114: Audio "Dj" Cd Player

    Advanced Controls Audio “DJ” CD Player The built-in standalone audio CD player gives you direct hardware Turning the control for audio CD’s when the computer is shut down , but has a Computer On working power source. Note: If you are play- 1.
  • Page 115 Advanced Controls 9. You can control the CD tracking and audio volume from the control panel. 10. The player can be turned off by toggling the ON/OFF switch Sound Volume Ad- again. justment How high the sound volume can be set us- ing the volume control knob depends on the setting of the volume...

  • Page 116: Configuring The Infrared Settings For Fir

    Advanced Controls Configuring the Infrared Settings for Infrared To configure your computer for Fast Infrared (FIR) communication Communication follow these steps: The Infrared transceiv- er operates on a “Line 1. Click Start, point to Settings and click Control Panel. of Sight” 2.

  • Page 117: Enabling Infrared Communication In Windows 98Se

    Advanced Controls Enabling Infrared Communication In Windows 98SE In Windows 98SE you will need to enable Infrared communication from the control panel: 1. Click Start, point to Settings and click Control Panel. 2. Double-click Infrared icon. 3. Click the Options (tab). 4.

  • Page 118: Drivers & Utilities

    Drivers & Utilities Chapter 4: Drivers & Utilities Overview • W indows 98 Second Edition • Windows Me • W indows 2000 Professional • Windows XP This chapter deals with installing the drivers and utilities essential to the operation or im- provement of some of the notebook PC’s sub- systems.

  • Page 119: What To Install

    Drivers & Utilities What To Install The Device Drivers & Utilities + User’s Man- ual CD-ROM contains the drivers and utilities Navigate (Browse.\.) to D: necessary for the proper operation of the note- You will notice that many of the instructions for book PC.

  • Page 120: Authorized Driver Message

    Drivers & Utilities Authorized Driver Message If you receive a message telling you that the driver you are installing is not authorized What To Have Ready ( Digital Signature Not Found) , just click In some cases when drivers are to be installed Yes ( Continue Anyway ) to ignore the mes- you will need to have present your OS CD - sage and continue the installation procedure.
  • Page 121 Drivers & Utilities Table 4 - 1 - What to Install Feature Win98SE WinME* Win 2000* Win XP Chipset page 4-5 page 4-11 page 4-16 page 4-21 Audio page 4-6 page 4-11 page 4-16 page 4-21 Modem page 4-6 page 4-12 page 4-17 page 4-22 page 4-7...

  • Page 122: Windows 98 Second Edition

    Drivers & Utilities Windows 98 Second Edition This section covers driver and utility installa- Chipset (Win98SE) tion instructions for Windows 98 Second Edi- 1. Click Start (menu) > Run... tion . 2. Navigate ( Browse.. ) to D:\Driv- ers\Chipset\Setup.exe and click OK . 3.

  • Page 123: Audio (Win98Se)

    Drivers & Utilities Audio (Win98SE) Modem (Win98SE) 1. Click Start (menu) > Run... 1. Click Start (menu), point to Settings and 2. Navigate ( Browse.. ) to D:\Driv- click Control Panel . Double-click Sys- ers\Audio\Setup.exe and click OK. tem (icon) and then click Device Man- 3.

  • Page 124: Lan (Win98Se)

    Drivers & Utilities LAN (Win98SE) 7. Close the Smart Link 56K Voice Modem Properties and System Proper- 1. Click Start (menu), point to Settings and ties (dialog box) . The modem is ready click Control Panel . Double-click Sys- for dial-up configuration. tem (icon) and then click Device Man- ager (tab).

  • Page 125: Video (Win98Se)

    Drivers & Utilities TouchPad (Win98SE) eject the CD-ROM in your drive and insert the Windows CD. 1. Click Start (menu) > Run... 8. Give the computer a few seconds to rec- 2. Navigate ( Browse.. ) to D:\Driv- ognize that the disk is in the drive, then ers\TouchPad\Win98se\Setup.exe and click OK .

  • Page 126: Hot-Key (Win98Se)

    Drivers & Utilities Hot-Key (Win98SE) AutoMail (Win98SE) 1. Click Start (menu) > Run... 1. Click Start (menu) > Run... 2. Navigate ( Browse.. ) to D:\Driv- 2. Navigate ( Browse.. ) to D:\Drivers\Auto- ers\Kbc_ap\CNK001.exe and click OK . Mail\Setup.exe . and click OK . 3.

  • Page 127: Intel Speedstep (Win98Se)

    Drivers & Utilities Intel SpeedStep (Win98SE) *Intel SpeedStep Note: This applet helps your system take advantage of a SpeedStep - enhanced CPU’s capabilities, such as that as found in your notebook if you have the mo- bile CPU option. If you do not have the mobile CPU option there is no need to install the driver.

  • Page 128: Windows Me

    Drivers & Utilities Windows ME Audio (WinME) 1. Click Start (menu) > Run... This section covers driver and utility installa- 2. Navigate ( Browse.. ) to D:\Driv- tion instructions for Windows Me. ers\Audio\Setup.exe and click OK . 3. Click Next (Click Yes to keep the file if Chipset (WinME) Windows finds a Version Conflict at any 1.

  • Page 129: Modem (Winme)

    Drivers & Utilities Modem (WinME) 9. After the updated driver is installed, click Finish again. 1. Click Start (menu), point to Settings and 10. Close the Smart Link 56K Voice click Control Panel . Double-click Sys- Modem Properties and System Proper- tem (icon) and then click Device Man- ties (dialog box) .

  • Page 130: Lan (Winme)

    Drivers & Utilities LAN (WinME) 9. Click Finish and Yes to restart your com- puter when prompted. 1. Click Start (menu), point to Settings and 10. The network adapter is now ready for click Control Panel . Double-click Sys- configuration. tem (icon) and then click Device Man- ager (tab).

  • Page 131: Touchpad (Winme)

    Drivers & Utilities TouchPad (WinME) Hot-Key (WinME) 1. Click Start (menu) > Run... 1. Click Start (menu) > Run... 2. Navigate ( Browse.. ) to D:\Driv- 2. Navigate ( Browse.. ) to D:\Driv- ers\TouchPad\Winme\Setup.exe and ers\Kbc_ap\CNK001.exe and click OK . click OK .

  • Page 132: Automail (Winme)

    Drivers & Utilities AutoMail (WinME) Intel SpeedStep (WinME) 1. Click Start (menu) > Run... *Intel SpeedStep Note: This applet helps 2. Navigate ( Browse.. ) to D:\Drivers\Auto- your system take advantage of a SpeedStep - Mail\Setup.exe . and click OK . enhanced CPU’s capabilities, such as that as 3.

  • Page 133: Windows 2000 Professional

    Drivers & Utilities Windows 2000 Professional This section covers driver and utility installa- Audio (Win2000) tion instructions for Windows 2000 Profes- 1. Click Start (menu) > Run... sional. 2. Navigate ( Browse.. ) to D:\Driv- ers\Audio\Setup.exe and click OK . 3.

  • Page 134: Modem (Win2000)

    Drivers & Utilities Modem (Win2000) 9. Close the Smart Link 56K Voice Modem Properties and System Proper- 1. Click Start (menu), point to Settings and ties (dialog box) . The modem is ready click Control Panel . Double-click Sys- for dial-up configuration. tem (icon) and then click Hardware (tab) >...

  • Page 135: Lan (Win2000)

    Drivers & Utilities LAN (Win2000) Video (Win2000) 1. Click Start (menu), point to Settings and 1. Click Start (menu) > Run... click Control Panel . Double-click Sys- 2. Navigate ( Browse.. ) to D:\Driv- ers\Video\Setup.exe and click OK . tem (icon) and then click Hardware 3.

  • Page 136: Touchpad (Win2000)

    Drivers & Utilities TouchPad (Win2000) Hot-Key (Win2000) 1. Click Start (menu) > Run... 1. Click Start (menu) > Run... 2. Navigate ( Browse.. ) to D:\Driv- 2. Navigate ( Browse.. ) to D:\Driv- ers\TouchPad\Win2000\Setup.exe and ers\Kbc_ap\CNK001.exe and click OK . click OK .

  • Page 137: Automail (Win2000)

    Drivers & Utilities AutoMail (Win2000) Intel SpeedStep (Win2000) 1. Click Start (menu) > Run... *Intel SpeedStep Note: This applet helps 2. Navigate ( Browse.. ) to D:\Drivers\Auto- your system take advantage of a SpeedStep - Mail\Setup.exe . and click OK . enhanced CPU’s capabilities, such as that as 3.

  • Page 138: Windows Xp

    Drivers & Utilities Windows XP Audio (WinXP) 1. Click Start (menu) > Run... This section covers driver and utility installa- 2. Navigate ( Browse.. ) to D:\Driv- ers\Audio\Setup.exe .and click OK . tion instructions for Windows XP . 3. To continue press Next . 4.

  • Page 139: Modem (Win Xp)

    Drivers & Utilities Modem (Win XP) 7. Select “Search for the best driver in these locations:” and select ONLY 1. If you can see the My Computer icon on “Include this location in the search:” . your desktop (if you cannot see the My 8.

  • Page 140: Lan (Win Xp)

    Drivers & Utilities LAN (Win XP) 5. When the Hardware Update Wizard appears, click “Install from a list or spe- Under Windows XP you have the option to use cific location (Advanced)” then click the built-in network driver, or install the driver Next .

  • Page 141: Video (Winxp)

    Drivers & Utilities Video (WinXP) 8. If the Files Needed Window appears then navigate ( Browse.. ) to D:\Driv- 1. Click Start (menu) > Run... ers\Video\R6XP\Atidrive and click 2. Navigate ( Browse.. ) to D:\Driv- Open > OK . ers\Video\Setup.exe and click OK . 9.

  • Page 142: Hot-Key (Winxp)

    Drivers & Utilities Hot-Key (WinXP) AutoMail (WinXP) 1. Click Start (menu) > Run... 1. Click Start (menu) > Run... 2. Navigate ( Browse.. ) to D:\Driv- 2. Navigate ( Browse.. ) to D:\Drivers\Auto- ers\Kbc_ap\CNK001.exe and click OK . Mail\Setup.exe . and click OK . 3.
  • Page 143 Drivers & Utilities 4 - 26...

  • Page 144: Bios Utilities

    BIOS Utilities Chapter 5: BIOS Utilities BIOS Settings Overview Warning This chapter gives a brief introduction to the computer’s built-in Incorrect settings can software: cause your system to malfunction. To correct mistakes, return Diagnostics: the POST (Power-On Self Test) Setup and restore the Setup Defaults with <F9>.

  • Page 145: Important Bios Settings

    BIOS Utilities Important BIOS Settings Generally speaking you should not have to adjust any of the BIOS settings as they will already be set for your computer. However the following is a quick reference to the most important settings you may need to change at some point.

  • Page 146: The Power-On Self Test (Post)

    BIOS Utilities The Power-On Self Test (POST) Each time you turn on the computer, the system takes a few seconds to conduct a POST, including a quick test of the on-board RAM. As the POST proceeds, the computer will tell you if there is anything wrong.

  • Page 147: Post Screen

    BIOS Utilities POST Screen Figure 5 - 1 Post Screen Phoenix Bios 4.0 Release 6.0 Copyright 1985 - 2001 Phoenix Technologies Ltd. All Rights Reserved T07 BIOS Released 01/15 2002 KBC/EC Firmware Revision: 00. 0.3 CPUID is 0F0Ah which is MCH Revision ID is 04 which is B0 stepping ICH Revicion ID is 02 which is B1 stepping CPU = Intel(R) Pentium(R) 4 CPU...

  • Page 148: Failing The Post

    BIOS Utilities Failing the POST Errors can be detected during the POST. There are two categories, “fatal” and “non-fatal”. Fatal Errors These stop the boot process and usually indicate there is something seriously wrong with your system. Take the computer to your service representative or authorized service center as soon as possible.

  • Page 149: The Setup Program

    BIOS Utilities The Setup Program The Phoenix Setup program tells the system how to configure itself and manage basic features and subsystems (e.g. port configuration and power management). Entering Setup To enter Setup , turn on the computer and press F2 during the POST . The prompt ( “Press F2 to Enter Setup”...

  • Page 150: Setup Screens

    BIOS Utilities Setup Screens The following pages contain additional advice on portions of the Setup . The Setup interface looks like a “windows” screen: Setup Main Menu Along the top of the screen is a menu bar with five ( 5 ) menu head- Setup menus shown in this section...

  • Page 151: Main Menu

    BIOS Utilities Main Menu Figure 5 - 2 Main Menu PhoenixBIOS Setup Utility Main Main Advanced Security Boot Exit Item Specific Help System Time [22:01:05] System Date [12/23/2001] <Tab>, <Shift Tab>, or Legacy Diskette A: [1.44/1.25 MB 3 "] <Enter> selects field. Primary Master [20004MB] Primary Slave...
  • Page 152 BIOS Utilities Legacy Diskette A: (Main Menu) This control “enables” the floppy disk drive. Primary Master (Main Menu) Switching Hard Disks Pressing Enter under opens the sub-menu to configure the main IDE HDD which fits into the computer’s HDD bay. Every time you install a different hard disk in Type (Main Menu >Primary Master)
  • Page 153 BIOS Utilities Note: For future use, and as a precaution, make a record the hard disk’s original configuration. LBA Warning LBA Mode Control (Main Menu >Primary Master>LBA Mode Con- trol:) If you enable LBA mode for a particular If your hard disk is larger than 528MB (unformatted capacity), en- HDD, be sure to ena- able this control.
  • Page 154 BIOS Utilities 32 Bit I/O (Main Menu >Primary Master ) Most new hard disks can support this higher rate. If yours can’t, the “Enabled” setting may slow down the system. Enables 32-bit com- munication between CPU and IDEcard. Requires PCI or local bus. Primary Slave, Secondary Master &...

  • Page 155: Advanced Menu

    BIOS Utilities Advanced Menu Figure 5 - 3 Advanced Menu PhoenixBIOS Setup Utility Main Advanced Advanced Security Boot Exit Item Specific Help Intel Developed Advanced Menu I/O Device Configuration Select the size of the Graphics Aperture for Graphics Aperture: [dddd ] 16 Mb the AGP video device.
  • Page 156 BIOS Utilities ACPI Table/Features Control Sub-Menu (Advanced Menu>Intel Developed Advanced Menu) Choose “Enabled” to set power management features for Non “Plug- Graphics Aperture N-Play” operating systems. This feature was im- port for older graphics I/O Device Configuration (Advanced Menu) cards past, The sub-menus under this line include options to configure the P ar- which...

  • Page 157: Security Menu

    BIOS Utilities Security Menu Figure 5 - 4 Security Menu PhoenixBIOS Setup Utility Main Advanced Security Security Boot Exit Item Specific Help Supervisor Password Is: Clear Supervisor Password Set Supervisor Password [E E nter] controls access to the setup utility. Password on boot: [Disabled] Help...
  • Page 158 BIOS Utilities Set Supervisor Password is: (Security Menu) Set a password for access to the Setup utility (this will not affect ac- cess to the computer OS, only the Setup utility). Password Warning Password on boot: (Security Menu) If you set a boot pass- word, NEVER forget Set a password for booting the computer.

  • Page 159: Boot

    BIOS Utilities Boot Figure 5 - 5 BOOT Menu PhoenixBIOS Setup Utility Main Advanced Security Boot Boot Exit Item Specific Help Removable Devices Keys used to view or Hard Drive configure devices: CD-ROM Drive <Enter> expands or collapses devices with a + or - <Ctrl+Enter>...
  • Page 160 BIOS Utilities Boot devices usually are hard drives, floppy drives and CD-ROM’s. When you specify a device as a boot device on the Boot Menu, it re- quires the availability of an operating system on that device. Most PCs come with an operating system already installed on hard-drive If you wish to boot from a CD-ROM you will need to add it to the boot order.

  • Page 161: Exit Menu

    BIOS Utilities Exit Menu Figure 5 - 6 Exit Menu PhoenixBIOS Setup Utility Main Advanced Security Boot Exit Exit Item Specific Help Exit Saving Changes Exit Discarding Changes Exit System Setup and Load Setup Defaults save your changes to CMOS. Discard Changes Save Changes Help...

  • Page 162: Upgrading The Computer

    Upgrading The Computer Chapter 6: Upgrading The Computer Overview This chapter contains the information on upgrading the computer. Follow the steps outlined to make the desired upgrades. If you have any trouble or problems you can contact your service representative for further help.

  • Page 163: When Not To Upgrade

    Upgrading The Computer When Not to Upgrade These procedures involve opening the system’s case, adding and sometimes replacing parts. You should not perform any of these upgrades if: • your system is still under warranty or a service contract • you don’t have all the necessary equipment •...

  • Page 164: Upgrading The Device In Bay One

    Upgrading The Computer Upgrading the Device in Bay One The interchangeable device installed in Bay One will depend on what configuration you purchased. If you wish to change or upgrade this device follow this procedure. 1. Turn the computer OFF. 2.
  • Page 165 Upgrading The Computer 5. With the release latch held in position, slide the device out slightly, then lift it up out of the computer. 6. Hold the release latch in the unlocked position and hold the new /replacement device as illustrated in (Figure 6 - 2) 7.

  • Page 166: Upgrading The Hard Disk Drive

    Upgrading The Computer Upgrading the Hard Disk Drive The hard disk drive is used to store your data internally in the com- puter. It is mounted in a removable case under Bay One (which con- tains your interchangeable device) and can be taken out to accommodate other 2.5”...

  • Page 167: Removing The Hard Disk

    Upgrading The Computer Removing The Hard Disk 1. Turn the computer OFF. 2. Place the computer on a clean, stable surface and turn it over. 3. Remove the device in Bay One (“Upgrading the Device in Bay One” on page 6 - 3). 4.
  • Page 168 Upgrading The Computer 6. Remove screws “1- 4” (Figure 6 - 4) from the assembly, and slide the hard disk out of the case. 7. Just reverse the removal procedure to install the new HDD. Figure 6 - 4 HDD Out Upgrading the Hard Disk Drive 6 - 7...

  • Page 169: Some Things To Watch Out For

    Upgrading The Computer Some Things To Watch Out For Software HDD System Warning Allow the system to auto-detect the new HDD, or if necessary, run the Setup Utility in the BIOS to customize the system ( “Main Menu” New HDD’s are blank. on page 5 - 8 ).

  • Page 170: Upgrading The Device In Bay Two

    Upgrading The Computer Upgrading the Device in Bay Two If you need to upgrade or replace the device in Bay Two then follow this procedure, however take note of the warrantee warning on the right. 1. Turn the computer OFF. 2.
  • Page 171 Upgrading The Computer 4. Apply gentle, but firm, pressure at point “1” (Figure 6 - 6) and slide the device out of the computer. 5. Just reverse the removal procedure to install the new device. Figure 6 - 6 Bay Two Device Removal 6 - 10 Upgrading the Device in Bay Two...

  • Page 172: Upgrading The System Memory

    Upgrading The Computer Upgrading The System Memory The computer has two memory sockets for 200-pin PC-266MHz DDR Small Outline Dual In-line Memory Modules (SO-DIMM). The main memory can be expanded up to 1024MB, and accepts 128/ 256/512MB modules. The total memory size is automatically detected by the POST routine once you turn on your computer.

  • Page 173: Removing The Keyboard

    Upgrading The Computer Removing The Keyboard 1. Turn off the computer. 2. Press the two keyboard latches at the top of the keyboard to elevate the keyboard from its normal position as in Figure (you may need to use a small screwdriver to do this). Figure 6 - 7 Keyboard Removal 3.
  • Page 174 Upgrading The Computer 4. Remove screws “2” and “3” (Figure 6 - 7) from the shielding plate, and lift the plate up off the computer. Contact Warning 5. Locate the Memory sockets “1” and “2” (Figure 6 - 8). Be careful not to touch the metal pins on the module’s connecting...
  • Page 175 Upgrading The Computer 8. The module “1” (Figure 6 - 9) will pop-up, and you can remove 9. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot. Figure 6 - 9 10.
  • Page 176 Upgrading The Computer 12. Replace the shielding plate and the 2 screws (See Figure 6 - 13. Replace the keyboard by insuring the five tabs at the base of the keyboard fit into place (you will find these under the Fn, Spacebar (2), Ctrl and arrow keys - see Figure 6 - 10).
  • Page 177 Upgrading The Computer 6 - 16...

  • Page 178: Troubleshooting

    Troubleshooting Chapter 7: Troubleshooting Overview Should you have any problems with your computer, before consult- ing the service center, you may want to try to solve the problem your- self. This chapter lists some common problems and their possible solutions. This can’t anticipate every problem, but you should check here before you panic.

  • Page 179: Basic Hints And Tips

    Troubleshooting Basic Hints and Tips Many of the following may seem obvious but they are often the so- lution to a problem when your computer appears not to be working. •Power: Is the computer actually plugged into a working electrical outlet? If plugged into a power strip , make sure it is actually working.
  • Page 180 Troubleshooting •Display Choice: Press Fn + F7 to make sure the system is not set to “external only” display( See Chapter 3:“Attaching a Monitor (CRT)” on page 3-9 ). •Boot Drive: Make sure there are no floppy disks in the drive when you start up your machine (this is a com- mon cause of the message “...

  • Page 181: Backup And General Maintenance

    Troubleshooting Backup and General Maintenance • Always backup your important data, and keep copies of your OS and programs safe, but close to hand. Don’t forget to note the serial num- bers if you are storing them out of their original cases e.g. in a CD wal- let.

  • Page 182: Viruses

    Troubleshooting Viruses • Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm your computer and cause you to lose data. Anti-Virus programs are commercially available and the definitions file updates are usually downloadable directly from the internet.

  • Page 183: Upgrading And Adding New Hardware/Software

    Troubleshooting Upgrading and Adding New Hardware/ Software Warrantee The CPU is not a user • Do not be tempted to make changes to your Windows Registry unless serviceable part. you are very sure of what you are doing, otherwise you will risk Opening this compart- severely damaging your system.
  • Page 184 Troubleshooting • Make sure you have installed the drivers for any new hardware you have installed (latest driver files are usually available to download from vendor’s websites). • Thoroughly check any recent changes you made to your system as these changes may affect one or more system components, or software programs.

  • Page 185: Power

    Troubleshooting Power You turned on the power but it doesn’t work. possible cause: Battery missing / incorrectly installed. If the battery status LED , doesn’t light indicator: up, then the battery may be missing or incor- rectly installed. solution: Check the battery bay, make sure the battery is present and seated properly (the design of the battery only allows it to go in one way).
  • Page 186 Troubleshooting The suspend key combination, Fn + Suspend possible cause: (F4), or other configured key combination, has been toggled. Battery Charging indicator: The various LEDs light up, but no picture appears. Make sure the battery is totally used up be- solution: Press Fn + Suspend (F4), or other configured fore recharging and...
  • Page 187 Troubleshooting You are losing battery power too quickly. possible cause: The battery does not fully charge because of pro- longed inactivity. indicator: The battery life per charge is too short. solution: ( See Chapter 2:“Battery” on page 2-3 ) possible cause: The battery is too hot.
  • Page 188 Troubleshooting The notebook feels too hot. possible cause: The system is using too much power or is not properly ventilated. Overheating indicator: The computer feels uncomfortably warm. solution: Reduce the computer’s power consumption (See To prevent your com- Chapter 3:“Power Management Features” on puter from overheating make sure...
  • Page 189 Troubleshooting The battery pack will not charge and the charge indicator light is off. possible cause: The battery is already fully charged and the indi- cator light is broken. possible cause: The battery pack is exposed to an excessively hot or cold environment.
  • Page 190 Troubleshooting A beep isn’t heard when the low-battery indicator turns on, or the gauge indicates power is less than 10%. solution: The battery power is nearly used up and the vol- ume control may be turned down. Adjust the vol- ume control and connect the computer with the AC adapter.
  • Page 191 Troubleshooting Power Management / Power Options have been possible cause: disabled. solution: Go to the Control Panel in Windows and re-ena- ble the options. possible cause: A peripheral device or PC card is consuming a lot of power. solution: Turn off the unused device to save power. possible cause: Previously the battery was given only a partial charge.

  • Page 192: Display

    Troubleshooting Display Nothing appears on screen. possible cause: The system is in a power saving mode. indicator: The LED power indicator, , is blinking green. solution: Toggle the suspend key combination, Fn + F4 Suspend ( See Chapter 2:“Function Keys” on page 2-22 ).
  • Page 193 Troubleshooting The computer is set for a different display. possible cause: solution: Toggle the screen display key combination, Fn + F7 . ( See Chapter 3:“Attaching a Monitor (CRT)” on page 3-9 ). If an external monitor is connected, turn it on. possible cause: The screen saver is activated.
  • Page 194 Troubleshooting The screen images aren’t clear. possible cause: The screen controls need to be adjusted. solution: Toggle the screen control key combinations Fn + F8 and F9 ( See Chapter 3:“Opening the LCD” on page 3-2 ). possible cause: The viewing angle of the LCD is bad. indicator: The screen appears shiny or too dim.
  • Page 195 Troubleshooting The screen is suffering from burn-in . possible cause: indicator: The screen has ghost images, even when it’s off. solution: solution: This problem is usually associated with external CRT monitors. Use power saving options ( See Chapter 3:“Monitor Standby” on page 3-19 ) to turn off the LCD.

  • Page 196: Hard Disk Drive (Hdd)

    Troubleshooting Hard Disk Drive (HDD) The computer takes longer during Startup. Password Warning possible cause: Data saved on the hard disk drive may be lost or damaged. If you choose set a solution: Please operate the scan disk or disk defragmenter boot password, NEV- ER forget your pass- to check for any lost or damaged data.

  • Page 197: Floppy Disk Drive (Fdd)

    Troubleshooting Floppy Disk Drive (FDD) The floppy disk drive will not write data to disk. Media Warning possible cause: The floppy disk is not formatted. solution: Format the disk (you may do this by right-click- Don’t try to remove a ing the disk icon in My Computer in Windows floppy disk while the and choosing Format from the menu).

  • Page 198: Audio

    Troubleshooting “Invalid system disk - Replace the disk, and then The message press any key” appears. possible cause: The computer is trying to boot from an incorrect Sound Volume Ad- floppy disk. justment solution: Remove the floppy and insert a correct one, or How high the sound boot from your hard disk or CD.
  • Page 199 Troubleshooting The sound cannot be heard or the volume is very low. possible cause: The volume might be set too low. solution: 1. Check the volume control in the Sound Con- trol Panel in the Windows Toolbar. 2. The headphone is plugged into the wrong jack. It should be plugged into the Headphone-Out jack ( “Headphone-Out Jack”...

  • Page 200: Cd Device

    Troubleshooting CD Device The compact disc cannot be read. possible cause: The compact disc is dirty. Media Warning solution: Clean it with a CD-ROM cleaner kit. When manually eject- ing a CD/DVD disc, The compact disc tray will not open when there is a disc in the DO NOT use a sharp- ened pencil or similar tray.
  • Page 201 Troubleshooting A music compact disc can be read while a data disc can not. possible cause: There may be a problem with the disc hardware or software. solution: Refer to your operating system manual for more information on the software and make sure you have the correct software installed for running video compact discs/DVD’s.
  • Page 202 Troubleshooting All compact discs cannot be read. possible cause: The Windows system does not recognize the CD- ROM drive, or the CD-ROM drive is not com- patible with other devices. solution: 1. Make sure you have the CD-ROM drive prop- erly installed and configured.

  • Page 203: Pc Card

    Troubleshooting PC Card The system cannot recognize the PC card. possible cause: The PC card is not inserted into the socket or inserted incorrectly. solution: Remove the card and reinsert it aligning the PC card with the slot. Push the card in until it locks into place.

  • Page 204: The Pc Card Problem In Windows 98

    Troubleshooting The PC Card Problem in Windows 98 After installation of Windows 98 or Windows 98 Second Edition , you may find that the PC cards are not working normally and you may also notice one or more of the following: •...

  • Page 205: The Pc Card Problem In Windows Me

    Troubleshooting The PC Card Problem in Windows Me After you resume your computer from suspend mode and try to use a program that uses a PCMCIA modem, the Windows message server (Msgsrv32.exe) may stop responding (hang). Windows -based pro- grams or Windows itself may then hang. This problem can occur when you are using Dial-Up Networking to connect to an Internet service provider and your computer enters Suspend mode or Standby mode before you disconnect the Dial-Up Networking connection.

  • Page 206: Keyboard And Mouse

    Troubleshooting Keyboard and Mouse Unwelcome numbers appear when typing. Other Keyboards possible cause: The NumLock is turned ON . If your keyboard is indicator: The LED is lit. damaged or you just solution: Press and release the NumLock key. want make change, you can use I have installed a new external Keyboard or mouse but cannot...

  • Page 207: Printer

    Troubleshooting Printer The printer cannot be added to the system or will not work. possible cause: The printer power is off or the printer is not cor- rectly connected to the computer. solution: Check all connections and cables and the try to reinstall the driver.
  • Page 208 Troubleshooting There is no paper in the printer, or the paper is possible cause: incorrect for the settings designated in your soft- ware. solution: Put more paper in the printer (also fan the paper to make sure it doesn’t stick together and cause a paper jam) and check the paper size matches your software’s “print”...
  • Page 209 Troubleshooting The operation mode for the parallel por t set in possible cause: the BIOS doesn’t correspond with the mode your printer can work with. solution: Please check your printer manual to find out which mode your printer uses. Check that the settings in the BIOS ( See page 5-13 “I/O Device Configuration”...

  • Page 210: Operation

    Troubleshooting Operation The system won’t start up when the power button is pressed. possible cause: The Audio “DJ” Cd Player is ON . solution: Toggle the ON/OFF switch off the CD Player. The system freezes. possible cause: The system’s power saving features have timed- out.
  • Page 211 Troubleshooting The system never goes into hibernate mode. possible cause: Power Management/Power Options features are not enabled. Hibernate Mode in solution: Go to Setup’s Power menu and enable the fea- Windows 98SE tures you prefer.( See Chapter 3:“Enabling Hibernate Mode is not Power Management/Options”...
  • Page 212 Troubleshooting The IrDA port is blocked. possible cause: solution: Make sure nothing is between your system’s IrDA port and the destination’s port. Note: The IrDA operates on a “Line of Sight” possible cause: Support for IrDA/AskIR/FIR types infrared devices is disabled. solution: Enable the support for these type of devices in the BIOS Setup under the Advanced menu ( See...
  • Page 213 Troubleshooting 7 - 36...

  • Page 214: Glossary

    Glossary AC ( A lternating C urrent) - The power from a standard household electrical outlet. adapter - A device that allows compatibility between different equipment. An AC adapter converts AC current to DC current which is needed to operate a computer. AGP ( A ccelerated G raphics P ort) - A high-speed graphics port that provides a direct connection between the display adapter and mem- application - A program such as a word processor, database or im-...
  • Page 215 boot - The loading of the operating system and other basic software which occurs when you start-up the computer. bus - A collection of wires through which data is transmitted from one part of a computer to another. byte ( b inar y te rm) - A unit of storage capable of holding a single character.
  • Page 216 DC ( D irect C urrent) - Power which a computer requires for opera- tion. DIP switch - A series of tiny switches built into circuit boards which enable you to configure a circuit board for a particular type of com- puter or application.
  • Page 217 flash ROM BIOS - see flash BIOS. function key - The keys F1, F2, … which have specific functions as- signed to them. By pressing one of the function keys you can execute certain commands depending on the computer and operating system you are using.
  • Page 218 change data or use a printer without a cable connection. jack - A connector used primarily to connect external devices to your computer such as a microphone, video source, phone line, etc. jumper - A metal bridge that closes an electrical circuit. They are sometimes used to configure expansion boards.
  • Page 219 puter are LEDs. load - To copy a program from some source, such as a disk or tape, into memory for execution. Lithium-Ion battery - A type of battery which is ideal for notebook computers because of its light weight and high energy density. Also, lithium-ion batteries do not use poisonous metals, such as lead, mer- cury or cadmium.
  • Page 220 when receiving a signal from the telephone line. module - Referring to hardware, a module is a self-contained com- ponent. mouse - The most popular pointing device. It was called a mouse be- cause it more or less resembled one, with the cord being the mouse’s tail.
  • Page 221 PCMCIA Card - A credit-card sized, removable module for porta- ble computers standardized by PCMCIA. Also known as PC Cards, they are 16-bit devices that are used to attach modems, network adapters, sound cards, radio transceivers, solid-state disks and hard disks to a portable computer.
  • Page 222 RAM ( R andom A ccess M emory) - The memory available to pro- grams, different programs will need more or less RAM depending on what they are doing. RAM is the most common type of memory found in computers. reboot - To restart a computer.
  • Page 223 break down. SDRAM ( S ynchronous DRAM ) - A type of DRAM that can run at much higher clock speeds than conventional memory. serial port - A socket on a computer used to connect a modem, mouse, scanner or other serial device to the computer. setup - (1) A utility program which modifies the BIOS.
  • Page 224 TFT ( T hin F ilm T ransistor) - The term typically refers to active ma- trix screens on laptop computers. Active matrix LCD provides a sharper screen display and broader viewing angle compared to pas- sive matrix. USB ( U niversal S erial B us) - Hardware interface for low-speed pe- ripherals such as the keyboard, mouse, joystick, scanner, printer and telephony devices.
  • Page 225 Zoomed Video (ZV) Port - An extension to the PC Card (PCMCIA) standard that provides a high transfer rate for video applications on portable computers. The ZV Port is built into the notebook computer and activated by plugging in an MPEG PC Card that is ZV Port-com- pliant.

  • Page 226: Appendix A. Specifications

    Appendix A. Specifications Processor µ • Intel Desktop Pentium® 4, 1.4/1.5/1.6/1.7GHz ( 0.18) Processor µ • 2.0/2.2/2.4GHz ( 0.13) - mPGA478 Package Core Logic • Intel® 845MP+ICH3Mchipset Structure • All-in-one • Compliant to PC99 standard Security • Kensington® Lock Memory •...

  • Page 227: Bios

    BIOS • One 512KB Flash ROM • Phoenix BIOS • 14.1" XGA 1024x768/ SXGA+ 1400x1050, 15.0" XGA 1024X768, 15.0" 1400x1050 TFT SXGA+, 15.0" UXGA 1600x1200 Display • ATI M7-P chipset, Integrated AGP™ 4X • Integrated 128-bit 2D / 3D Graphics Accelerator- Advanced HW Acceleration for DVD Playback (Motion Compen- sation engine and IDCT)- Fully DirectX 8 Compliant Graphics Engine...

  • Page 228: Storage

    Storage • Bay one interchangeable for 3.5" 3-mode FDD, OR DVD-ROM, OR CD-R, OR CD-RW, OR Combination CD-ROM/ CD-RW drive • Bay two fixed DVD-ROM 12.7mm(h) /CD-ROM 12.7mm(h) • Easy changeable 2.5" 9.5 mm (h) HDD • Support Master mode IDE, support PIO mode 4 / ATA-33/66/100 (Ultra DMA) Audio •...

  • Page 229: Interface

    Interface • Built in Touch pad (Scroll functionality included) • Four USB ports • One IEEE 1394 port • One S-Video jack for TV output • One parallel port (LPT1), support ECP / EPP • Infrared file transfer, IrDA 1.1 FIR/SIR/ ASKIR •...

  • Page 230: Power Management

    Power Management • Supports ACPI v1.0b • Supports APM v1.2 • Power on suspend • Supports suspend to RAM • Supports suspend to disk • Battery low suspend • Modem resume from system suspend • Resume from LAN ring • Cover switch Power •...

  • Page 231: Environmental Spec

    Environmental Spec • Temperature Relative Humidity ° ° • Operating: 5 C~ 35 Operating: 20% ~ 80% ° ° • Non-Operating: -20 C ~ 60 Non-Operating: 10% ~ 90% Physical Dimensions • 329 (w) x290 (d) x 44(h) mm Weight •...

This manual is also suitable for:
