Quick Start Guide
1

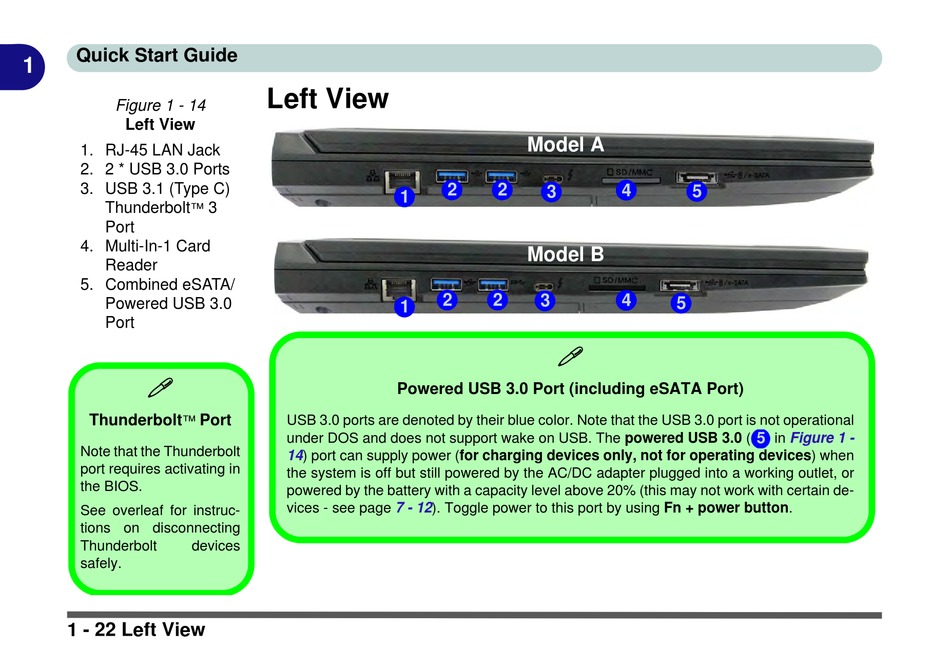

Figure 1 - 14
Left View
1. RJ-45 LAN Jack
2. 2 * USB 3.0 Ports
3. USB 3.1 (Type C)
Thunderbolt
™
Port
4. Multi-In-1 Card
Reader
5. Combined eSATA/
Powered USB 3.0
Port
Thunderbolt
Port
™
Note that the Thunderbolt
port requires activating in
the BIOS.
See overleaf for instruc-
tions on disconnecting
Thunderbolt
devices
safely.
1 - 22 Left View
Left View
3
USB 3.0 ports are denoted by their blue color. Note that the USB 3.0 port is not operational
under DOS and does not support wake on USB. The powered USB 3.0 (
14) port can supply power (for charging devices only, not for operating devices) when
the system is off but still powered by the AC/DC adapter plugged into a working outlet, or
powered by the battery with a capacity level above 20% (this may not work with certain de-
vices - see page
Model A
2
2
3
1
Model B
2
2
3
1
Powered USB 3.0 Port (including eSATA Port)
7 -
12). Toggle power to this port by using Fn + power button.
4
5
4
5
5
in
Figure 1 -
