Left View

1
2
8
1 2
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
See for a more detailed description of the ports & jacks etc.
Appendix A
Models A & D
3
4 5
Models B & C
3
4 5 6 7

Multi-in-1 Card Reader
MMC (MultiMedia Card) / RSMMC
MS (Memory Stick) / MS Pro / MS Duo
6 7
Quick Start Guide

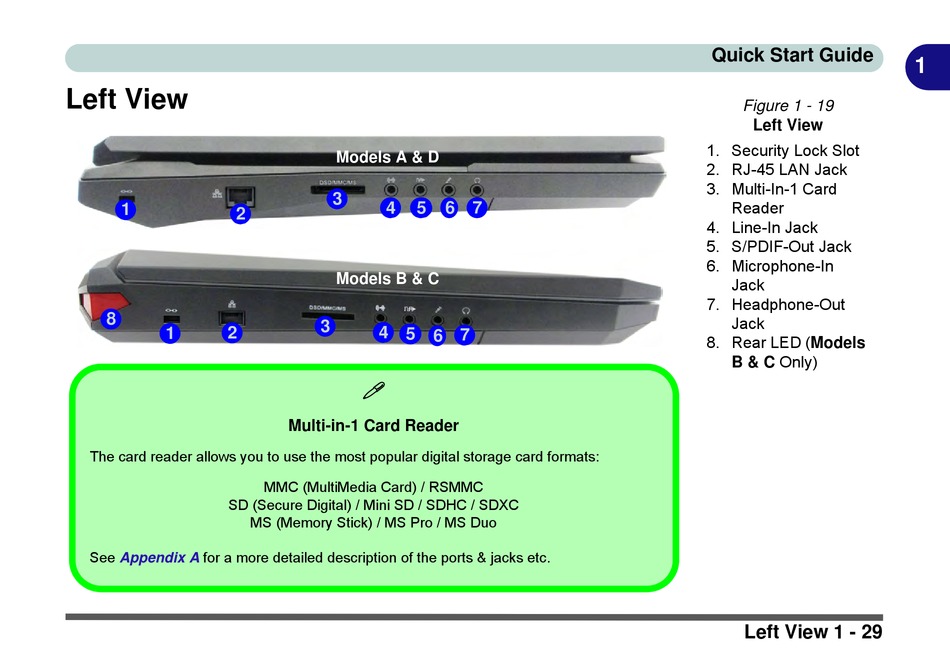

Figure 1 - 19
Left View
1. Security Lock Slot
2. RJ-45 LAN Jack
3. Multi-In-1 Card
Reader
4. Line-In Jack
5. S/PDIF-Out Jack
6. Microphone-In
Jack
7. Headphone-Out
Jack
8. Rear LED (Models
B & C Only)
Left View 1 - 29
