Front & Rear Views (Models E & F)
2
7
2
7
Note that the HDMI Port supports video and audio signals to attached external displays (see
"HDMI Audio Configuration" on page C -
Note that Sound Blaster X-Fi MB3 audio will be disabled when you are connecting to an
external display through an HDMI connection.
Model E
Model E
3 4
5
6
Model F
Model F
3
4
5
6

HDMI Port
27).
1
2
1
2
Front & Rear Views (Models E & F) 1 - 25
Quick Start Guide
Figure 1 - 15

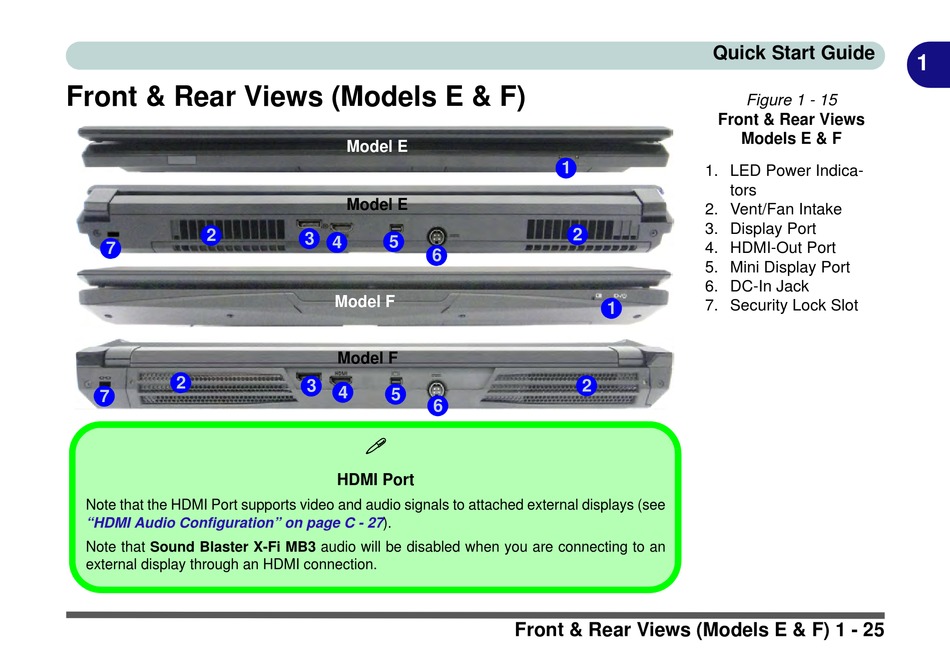

Front & Rear Views
Models E & F
1. LED Power Indica-
tors
2. Vent/Fan Intake
3. Display Port
4. HDMI-Out Port
5. Mini Display Port
6. DC-In Jack
7. Security Lock Slot
