Quick Start Guide
1

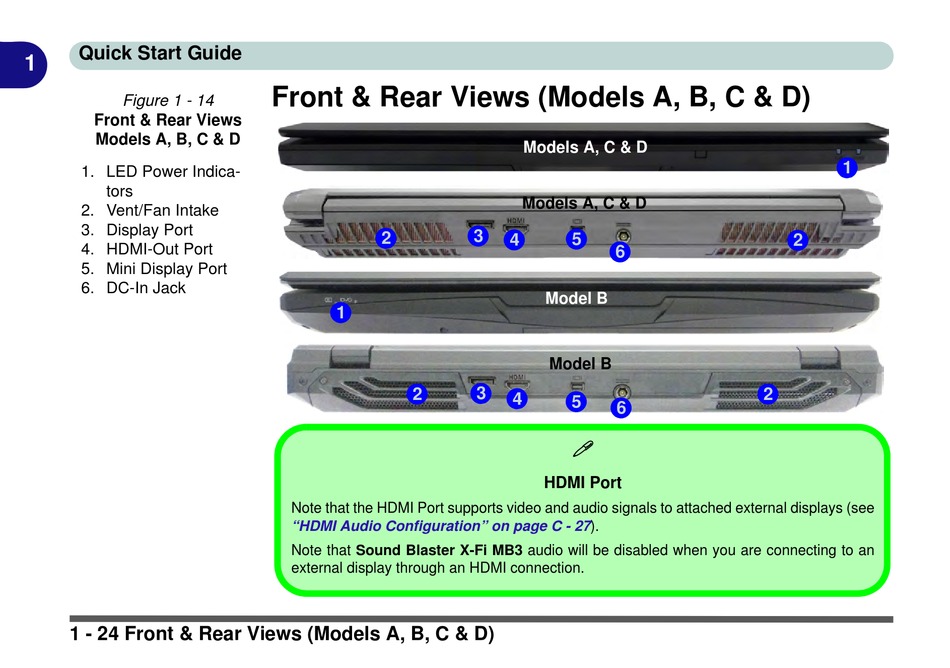

Figure 1 - 14
Front & Rear Views
Models A, B, C & D
1. LED Power Indica-
tors
2. Vent/Fan Intake
3. Display Port
4. HDMI-Out Port
5. Mini Display Port
6. DC-In Jack
1 - 24 Front & Rear Views (Models A, B, C & D)
Front & Rear Views (Models A, B, C & D)
2
1
2
Note that the HDMI Port supports video and audio signals to attached external displays (see
"HDMI Audio Configuration" on page C -
Note that Sound Blaster X-Fi MB3 audio will be disabled when you are connecting to an
external display through an HDMI connection.
Models A, C & D
Models A, C & D
3
5
4
6
Model B
Model B
3
4
5
6

HDMI Port
27).
1
2
2
