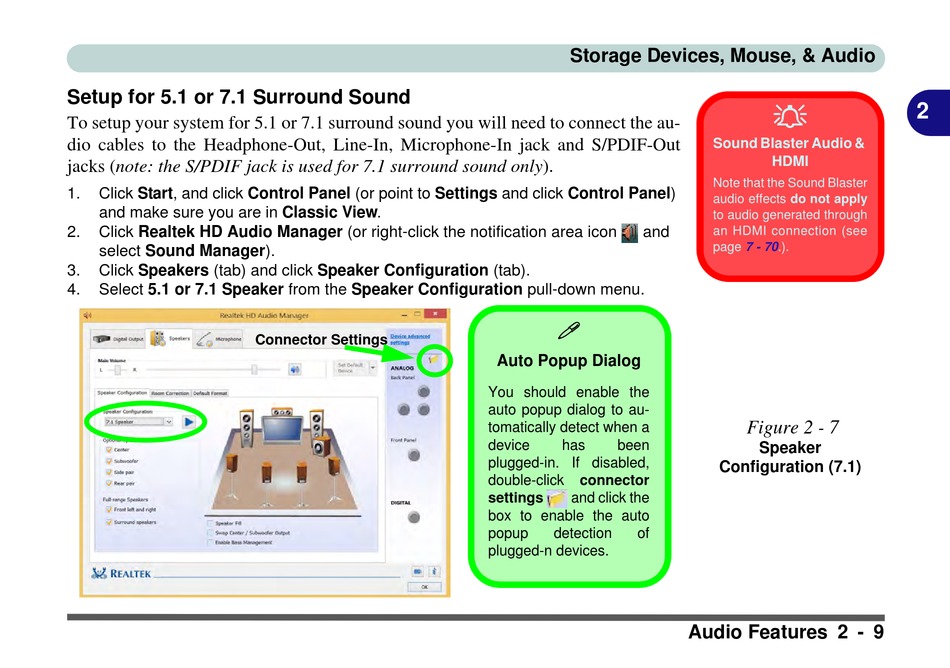

Setup for 5.1 or 7.1 Surround Sound

To setup your system for 5.1 or 7.1 surround sound you will need to connect the au-
dio cables to the Headphone-Out, Line-In, Microphone-In jack and S/PDIF-Out
jacks (note: the S/PDIF jack is used for 7.1 surround sound only).
1. Click Start, and click Control Panel (or point to Settings and click Control Panel)
and make sure you are in Classic View.
2. Click Realtek HD Audio Manager (or right-click the notification area icon
select Sound Manager).
3. Click Speakers (tab) and click Speaker Configuration (tab).
4. Select 5.1 or 7.1 Speaker from the Speaker Configuration pull-down menu.
Connector Settings
Storage Devices, Mouse, & Audio
and

Auto Popup Dialog
You should enable the
auto popup dialog to au-
tomatically detect when a
device has been
plugged-in. If disabled,
double-click connector
settings and click the
box to enable the auto
popup detection of
plugged-n devices.

Sound Blaster Audio &
HDMI
Note that the Sound Blaster
audio effects do not apply
to audio generated through
an HDMI connection (see
page 7 - 70.).
Figure 2 - 7
Speaker
Configuration (7.1)
Audio Features 2 - 9
