Upgrading The Computer

RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.
Hard Disk Handling
6
Do not press down on
the center off the hard
disk as this area houses
the hard disk drive mo-
tor.

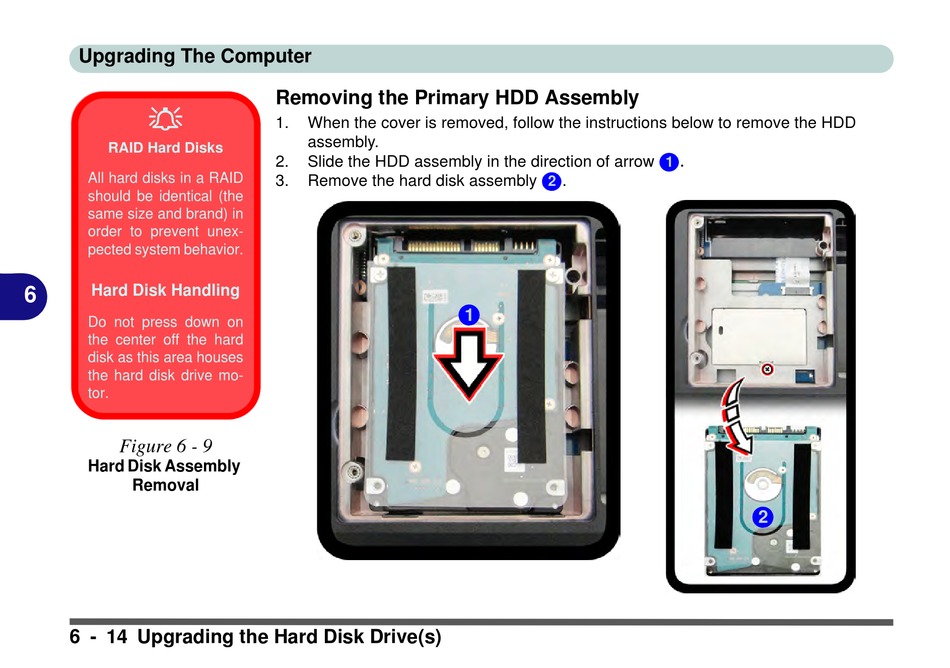

Figure 6 - 9
Hard Disk Assembly
Removal
6 - 14 Upgrading the Hard Disk Drive(s)

Removing the Primary HDD Assembly

1. When the cover is removed, follow the instructions below to remove the HDD
assembly.
2. Slide the HDD assembly in the direction of arrow
3. Remove the hard disk assembly .
2
1
.
1
2
