Storage Devices, Mouse, & Audio
2

Standard Touchpad
Sensitivity
The standard Touch-
pad (featured in Model
A, C, D & E comput-
ers) also have a valid
operational area is that
indicated within the red
dotted lines above.
Figure 2 - 9
Touchpad
Sensitivity
2 - 12 Touchpad and Buttons/Mouse

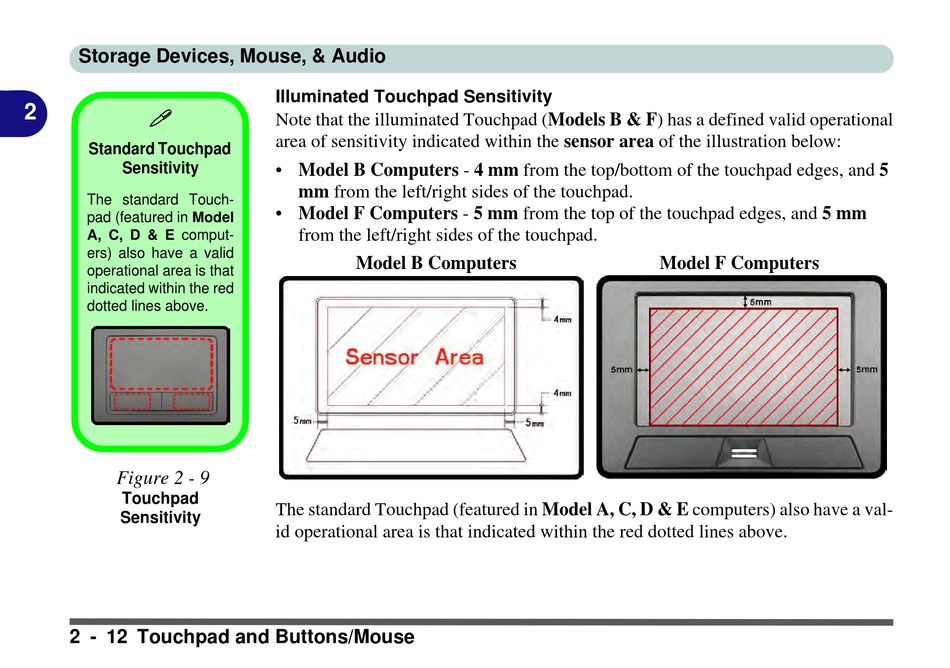

Illuminated Touchpad Sensitivity
Note that the illuminated Touchpad (Models B & F) has a defined valid operational
area of sensitivity indicated within the sensor area of the illustration below:
• Model B Computers - 4 mm from the top/bottom of the touchpad edges, and 5
mm from the left/right sides of the touchpad.
• Model F Computers - 5 mm from the top of the touchpad edges, and 5 mm
from the left/right sides of the touchpad.
Model B Computers
The standard Touchpad (featured in Model A, C, D & E computers) also have a val-
id operational area is that indicated within the red dotted lines above.
Model F Computers
