Left View

1 1
USB 3.0 ports are denoted by their blue color. Note that the USB 3.0 port is not operational under DOS
and does not support wake on USB. The powered USB 3.0 (
power (for charging devices only, not for operating devices) when the system is off but still pow-
ered by the AC/DC adapter plugged into a working outlet, or powered by the battery with a capacity
level above 20% (this may not work with certain devices - see page
by using Fn + power button.
In order to prevent system problems do not simply directly pull cables out from the USB port when
removing USB devices. Go to the notification area of the taskbar in the Desktop app, and click on the
Safely Remove Hardware and Eject Media icon. If you have quickly unplugged a device from the
USB port, and then can't find the device when re-plugged, you will then need to restart the system in
order to find the device again.
4 5
2 2
3

Powered USB 3.0 Port
3
in
7 - 13

Ejecting USB Devices
6 7

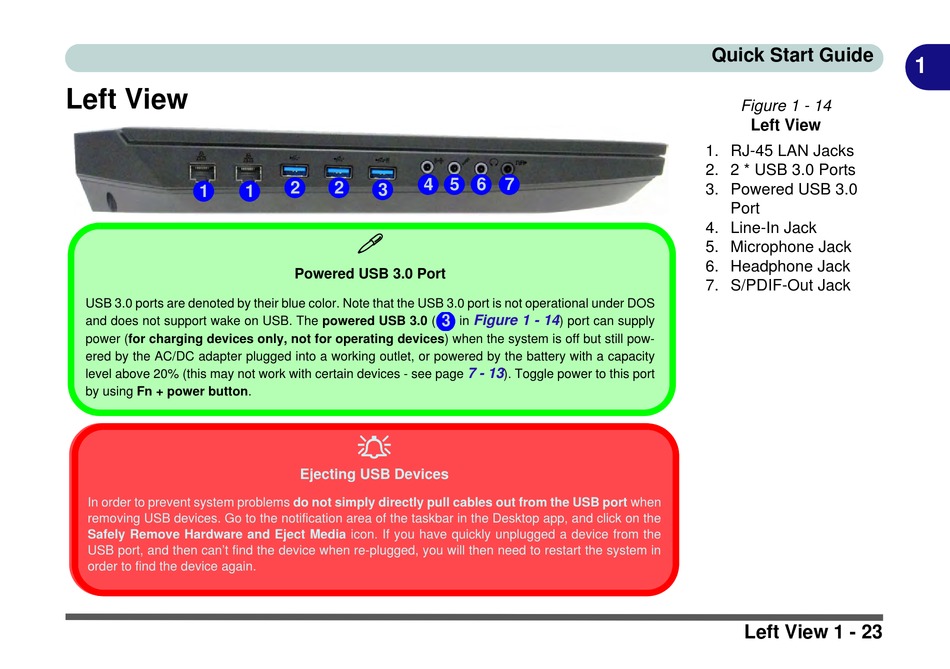

Figure 1 - 14
) port can supply
). Toggle power to this port
Quick Start Guide
Figure 1 - 14
Left View
1. RJ-45 LAN Jacks
2. 2 * USB 3.0 Ports
3. Powered USB 3.0
Port
4. Line-In Jack
5. Microphone Jack
6. Headphone Jack
7. S/PDIF-Out Jack
Left View 1 - 23
