BASIC OPERATION

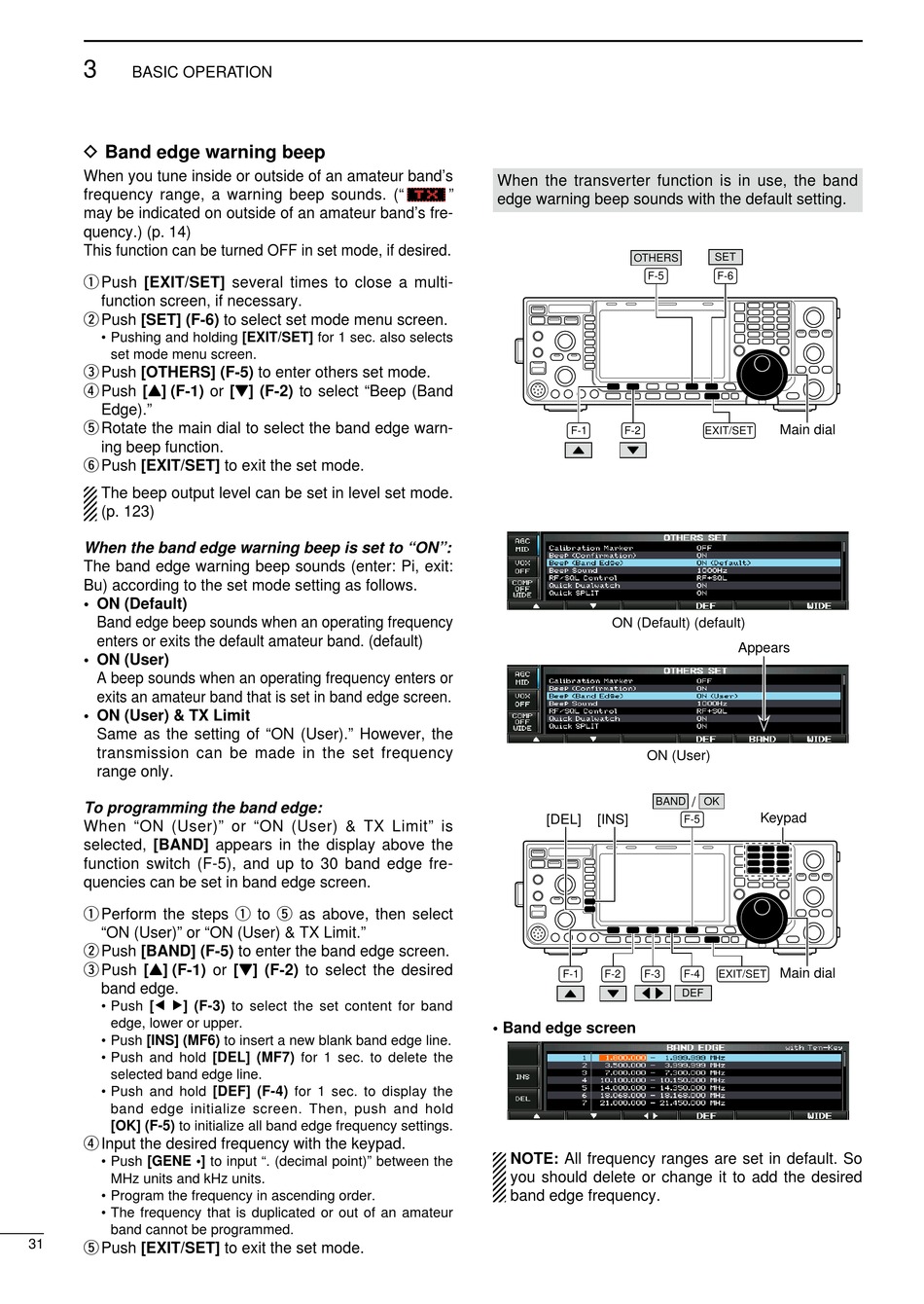

D Band edge warning beep

When you tune nsde or outsde of an amateur band's
frequency range, a warnng beep sounds. ("
may be ndcated on outsde of an amateur band's fre-
quency.) (p. 14)
Ths functon can be turned OFF n set mode, f desred.
q Push [EXIT/SET] several tmes to close a mult-
functon screen, f necessary.
w Push [SET] (F-6) to select set mode menu screen.
• Pushng and holdng [EXIT/SET] for 1 sec. also selects
set mode menu screen.
e Push [OTHERS] (F-5) to enter others set mode.
r Push [Y] (F-1) or [Z] (F-2) to select "Beep (Band
Edge)."
t Rotate the man dal to select the band edge warn-
ng beep functon.
y Push [EXIT/SET] to ext the set mode.
The beep output level can be set n level set mode.
(p. 123)
When the band edge warning beep is set to "ON":
The band edge warnng beep sounds (enter: P, ext:
Bu) accordng to the set mode settng as follows.
• ON (Default)
Band edge beep sounds when an operatng frequency
enters or exts the default amateur band. (default)
• ON (User)
A beep sounds when an operatng frequency enters or
exts an amateur band that s set n band edge screen.
• ON (User) & TX Limit
Same as the settng of "ON (User)." However, the
transmsson can be made n the set frequency
range only.
To programming the band edge:
When "ON (User)" or "ON (User) & TX Lmt" s
selected, [BAND] appears n the dsplay above the
functon swtch (F-5), and up to 30 band edge fre-
quences can be set n band edge screen.
q Perform the steps q to t as above, then select
"ON (User)" or "ON (User) & TX Lmt."
w Push [BAND] (F-5) to enter the band edge screen.
e Push [Y] (F-1) or [Z] (F-2) to select the desred
band edge.
• Push [Ω ≈] (F-3) to select the set content for band
edge, lower or upper.
• Push [INS] (MF6) to nsert a new blank band edge lne.
• Push and hold [DEL] (MF7) for 1 sec. to delete the
selected band edge lne.
• Push and hold [DEF] (F-4) for 1 sec. to dsplay the
band edge ntalze screen. Then, push and hold
[OK] (F-5) to ntalze all band edge frequency settngs.
r Input the desred frequency wth the keypad.
• Push [GENE •] to nput ". (decmal pont)" between the
MHz unts and kHz unts.
• Program the frequency n ascendng order.
• The frequency that s duplcated or out of an amateur
band cannot be programmed.
31
t Push [EXIT/SET] to ext the set mode.
When the transverter functon s n use, the band
"
edge warnng beep sounds wth the default settng.
F-1
ON (Default) (default)
[DEL] [INS]
F-1 F-2
• Band edge screen
NOTE: All frequency ranges are set n default. So
you should delete or change t to add the desred
band edge frequency.
SET
OTHERS
F-5 F-6
Main dial
F-2 EXIT/SET
Appears
ON (User)
/
BAND OK
Keypad
F-5
Main dial
F-3 F-4 EXIT/SET
DEF
