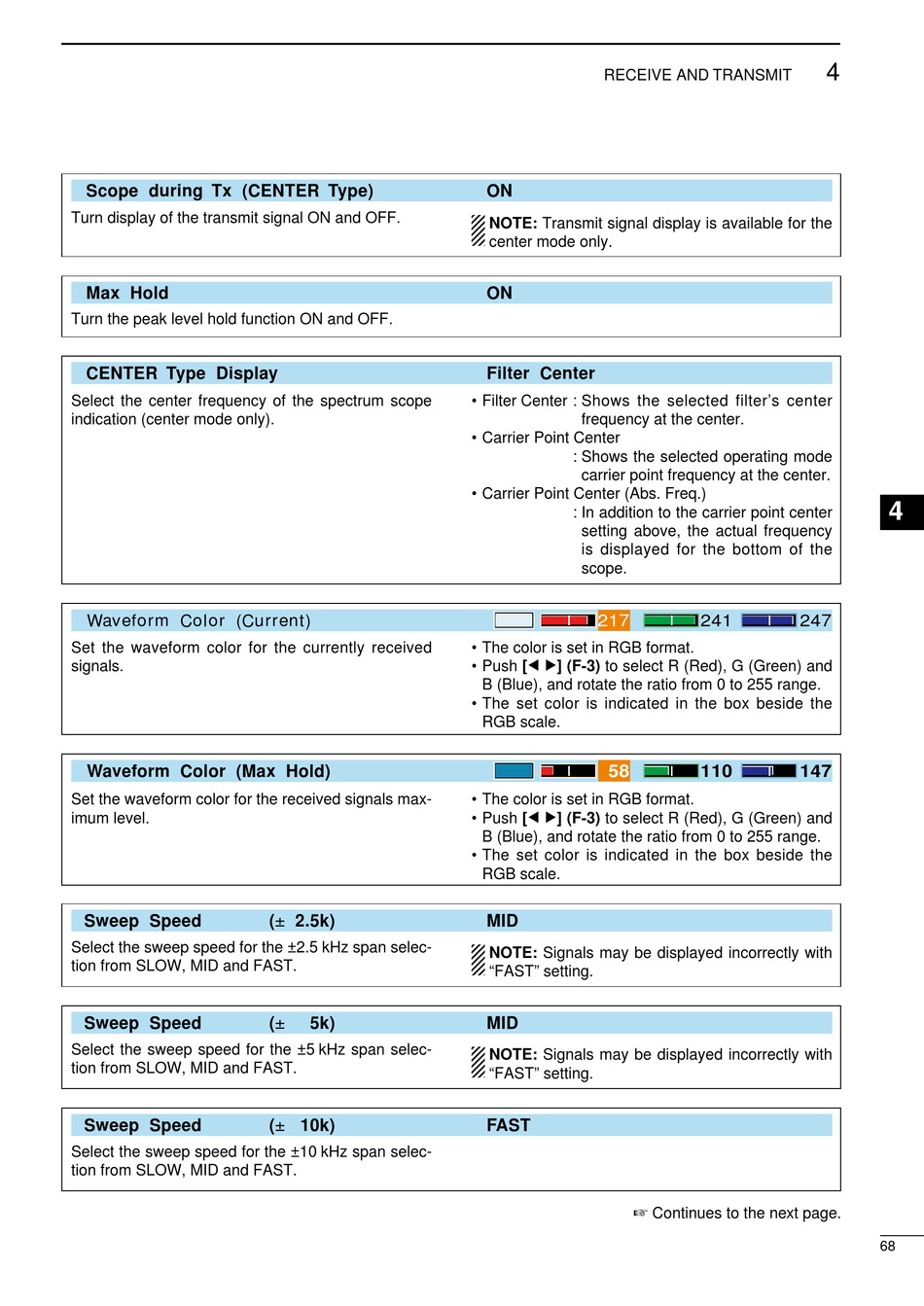

Icom IC-7600 Instruction Manual page 75

Scope during Tx (CENTER Type)
Turn dsplay of the transmt sgnal ON and OFF.
Max Hold
Turn the peak level hold functon ON and OFF.
CENTER Type Display
Select the center frequency of the spectrum scope
ndcaton (center mode only).
Waveform Color (Current)
Set the waveform color for the currently receved
sgnals.
Waveform Color (Max Hold)
Set the waveform color for the receved sgnals max-
mum level.
Sweep Speed
Select the sweep speed for the ±2.5 kHz span selec-
ton from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±5 kHz span selec-
ton from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±10 kHz span selec-
ton from SLOW, MID and FAST.
(± 2.5k)
(± 5k)
(± 10k)
RECEIVE AND TRANSMIT
ON
NOTE: Transmt sgnal dsplay s avalable for the
center mode only.
ON
Filter Center
• Flter Center : Shows the selected flter's center
frequency at the center.
• Carrer Pont Center
: Shows the selected operatng mode
carrer pont frequency at the center.
• Carrer Pont Center (Abs. Freq.)
: In addton to the carrer pont center
settng above, the actual frequency
s dsplayed for the bottom of the
scope.
217
• The color s set n RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the rato from 0 to 255 range.
• The set color s ndcated n the box besde the
RGB scale.
58
• The color s set n RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the rato from 0 to 255 range.
• The set color s ndcated n the box besde the
RGB scale.
MID
NOTE: Sgnals may be dsplayed ncorrectly wth
"FAST" settng.
MID
NOTE: Sgnals may be dsplayed ncorrectly wth
"FAST" settng.
FAST
☞ Contnues to the next page.
