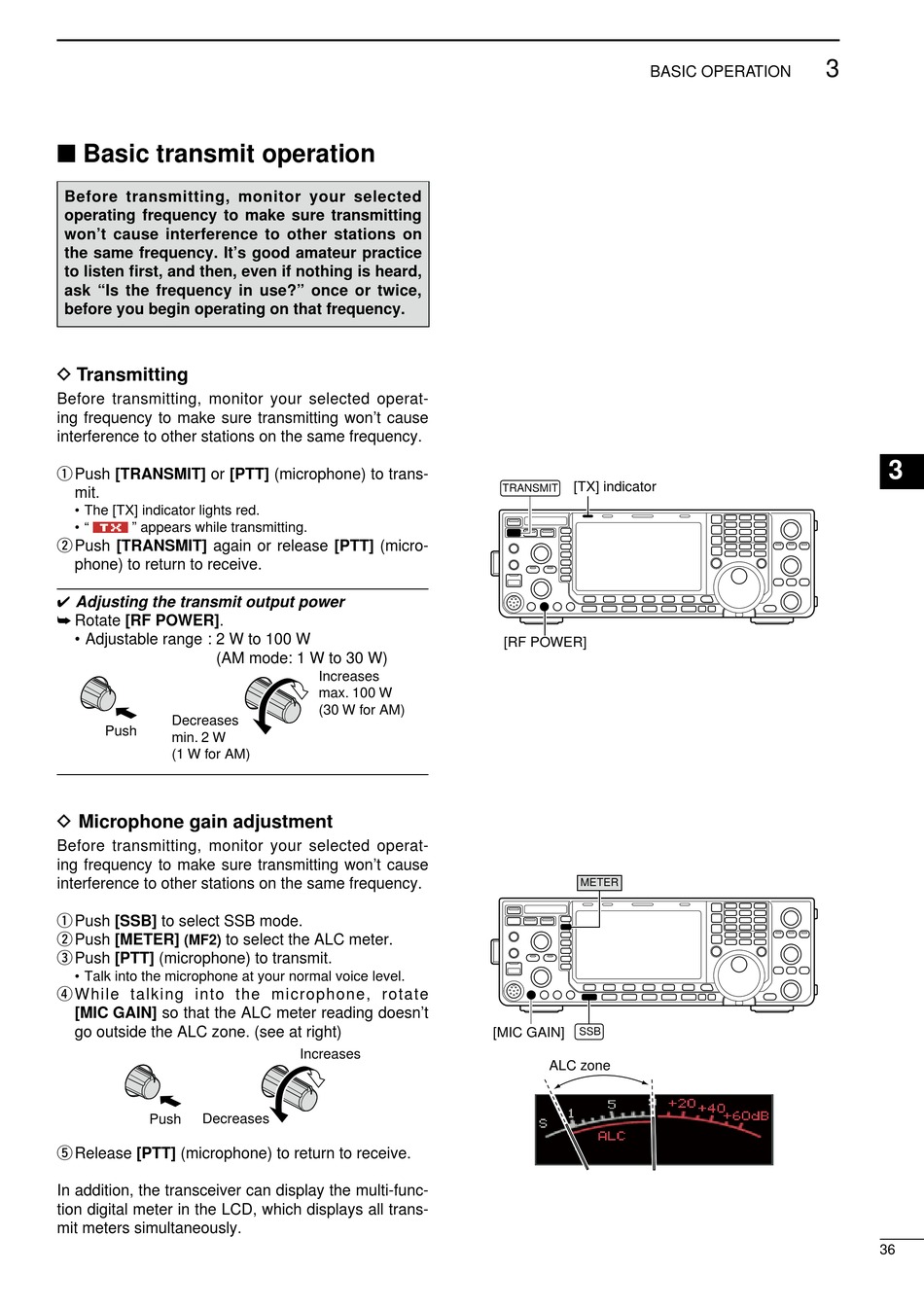

■ Basic transmit operation

Before transmitting, monitor your selected
operating frequency to make sure transmitting
won't cause interference to other stations on
the same frequency. It's good amateur practice
to listen first, and then, even if nothing is heard,
ask "Is the frequency in use?" once or twice,
before you begin operating on that frequency.
D Transmitting
Before transmttng, montor your selected operat-
ng frequency to make sure transmttng won't cause
nterference to other statons on the same frequency.
q Push [TRANSMIT] or [PTT] (mcrophone) to trans-
mt.
• The [TX] ndcator lghts red.
• " " appears whle transmttng.
w Push [TRANSMIT] agan or release [PTT] (mcro-
phone) to return to receve.
✔ Adjusting the transmit output power
➥ Rotate [RF POWER].
• Adjustable range : 2 W to 100 W
(AM mode: 1 W to 30 W)
Decreases
Push
min. 2 W
(1 W for AM)

D Microphone gain adjustment

Before transmttng, montor your selected operat-
ng frequency to make sure transmttng won't cause
nterference to other statons on the same frequency.
q Push [SSB] to select SSB mode.
w Push [METER]
to select the ALC meter.
(MF2)
e Push [PTT] (mcrophone) to transmt.
• Talk nto the mcrophone at your normal voce level.
r Whle talkng nto the mcrophone, rotate
[MIC GAIN] so that the ALC meter readng doesn't
go outsde the ALC zone. (see at rght)
Decreases
Push
t Release [PTT] (mcrophone) to return to receve.
Recommended level for
an Icom microphone
In addton, the transcever can dsplay the mult-func-
ton dgtal meter n the LCD, whch dsplays all trans-
mt meters smultaneously.
Increases
max. 100 W
(30 W for AM)
Increases
MIC GAIN
BASIC OPERATION
[TX] indicator
TRANSMIT
[RF POWER]
METER
[MIC GAIN] SSB
ALC zone
