1

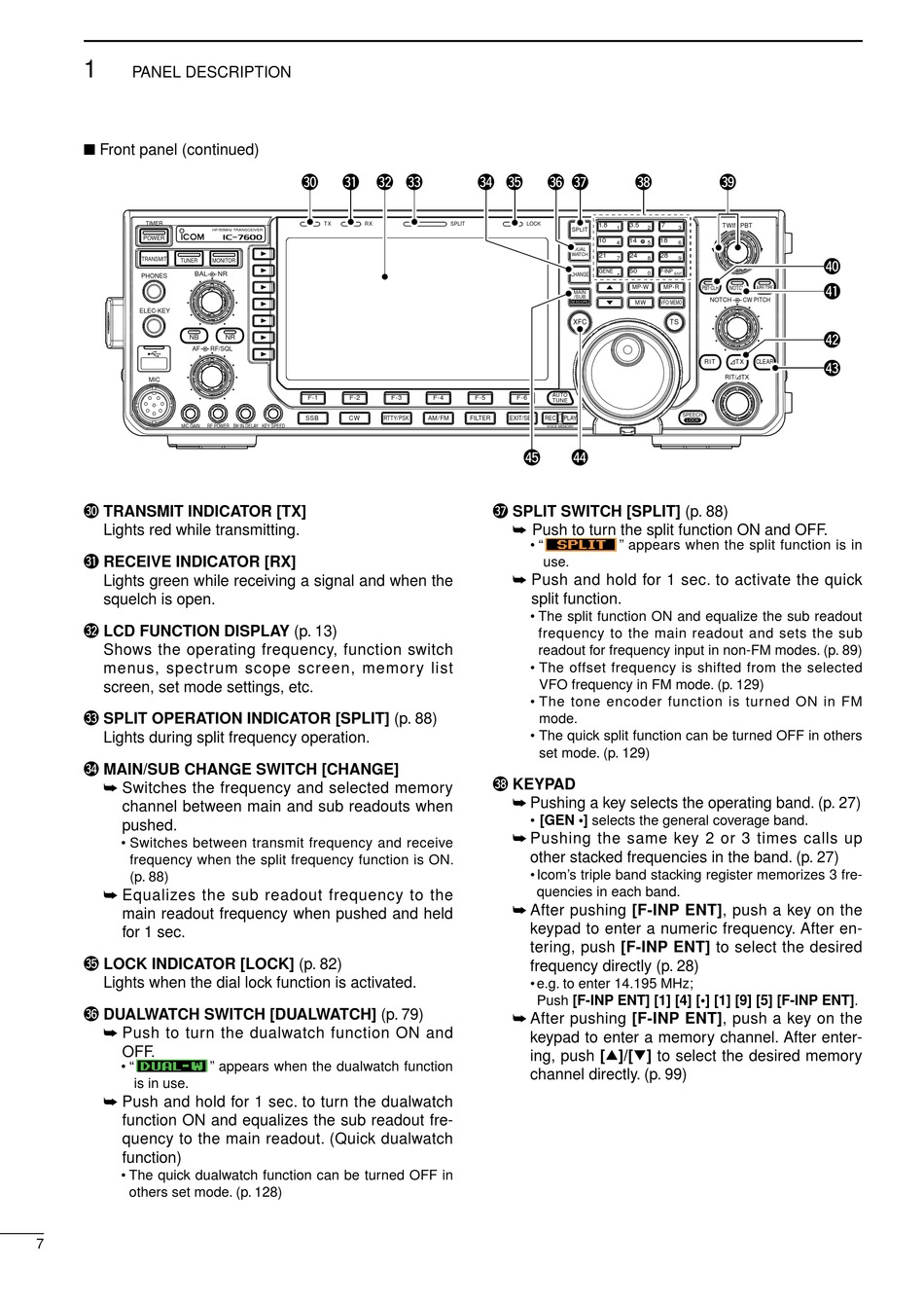

PANEL DESCRIPTION
■ Front panel (contnued)
TIMER
POWER
TRANSMIT
TUNER
BAL
PHONES
ELEC-KEY
NB
AF RF/SQL
MIC
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
#0 TRANSMIT INDICATOR [TX]
Lghts red whle transmttng.
#1 RECEIVE INDICATOR [RX]
Lghts green whle recevng a sgnal and when the
squelch s open.
#2 LCD FUNCTION DISPLAY (p. 13)
Shows the operatng frequency, functon swtch
menus, spectrum scope screen, memory lst
screen, set mode settngs, etc.
#3 SPLIT OPERATION INDICATOR [SPLIT] (p. 88)
Lghts durng splt frequency operaton.
#4 MAIN/SUB CHANGE SWITCH [CHANGE]
➥ Swtches the frequency and selected memory
channel between man and sub readouts when
pushed.
• Swtches between transmt frequency and receve
frequency when the splt frequency functon s ON.
(p. 88)
➥ Equalzes the sub readout frequency to the
man readout frequency when pushed and held
for 1 sec.
#5 LOCK INDICATOR [LOCK] (p. 82)
Lghts when the dal lock functon s actvated.
#6 DUALWATCH SWITCH [DUALWATCH] (p. 79)
➥ Push to turn the dualwatch functon ON and
OFF.
• " " appears when the dualwatch functon
s n use.
➥ Push and hold for 1 sec. to turn the dualwatch
functon ON and equalzes the sub readout fre-
quency to the man readout. (Quck dualwatch
functon)
• The quck dualwatch functon can be turned OFF n
others set mode. (p. 128)
7
#0 #1 #2
T X RX
HF/50MHz TRANSCEIVER
MONITOR
NR
NR
F- 1 F- 2
SSB CW RTTY/PSK
#3 #4 #5 #6 #7
SPLIT LOCK
AUTO
F- 3 F- 4 F- 5 F- 6
TUNE
AM/FM FILTER EXIT/SET REC PLAY
VOICE MEMORY
$5
#7 SPLIT SWITCH [SPLIT] (p. 88)
➥ Push to turn the splt functon ON and OFF.
• "
use.
➥ Push and hold for 1 sec. to actvate the quck
splt functon.
• The splt functon ON and equalze the sub readout
frequency to the man readout and sets the sub
readout for frequency nput n non-FM modes. (p. 89)
• The offset frequency s shfted from the selected
VFO frequency n FM mode. (p. 129)
• The tone encoder functon s turned ON n FM
mode.
• The quck splt functon can be turned OFF n others
set mode. (p. 129)
#8 KEYPAD
➥ Pushng a key selects the operatng band. (p. 27)
• [GEN •] selects the general coverage band.
➥ Pushng the same key 2 or 3 tmes calls up
other stacked frequences n the band. (p. 27)
• Icom's trple band stackng regster memorzes 3 fre-
quences n each band.
➥ After pushng [F-INP ENT], push a key on the
keypad to enter a numerc frequency. After en-
terng, push [F-INP ENT] to select the desred
frequency drectly (p. 28)
• e.g. to enter 14.195 MHz;
Push [F-INP ENT] [1] [4] [•] [1] [9] [5] [F-INP ENT].
➥ After pushng [F-INP ENT], push a key on the
keypad to enter a memory channel. After enter-
ng, push [∫]/[√] to select the desred memory
channel drectly. (p. 99)
#8 #9
1.8 3.5 7 TWIN-PBT
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0
CHANGE ENT
MP-W MP-R PBT - CLR
NOTCH
MAIN
/SUB
NOTCH CW PITCH
M.SCOPE MW VFO/MEMO
XFC TS
RIT TX
RIT/ TX
SPEECH
LOCK
$4
" appears when the splt functon s n
$0
$1
APF/TPF
$2
CLEAR $3
