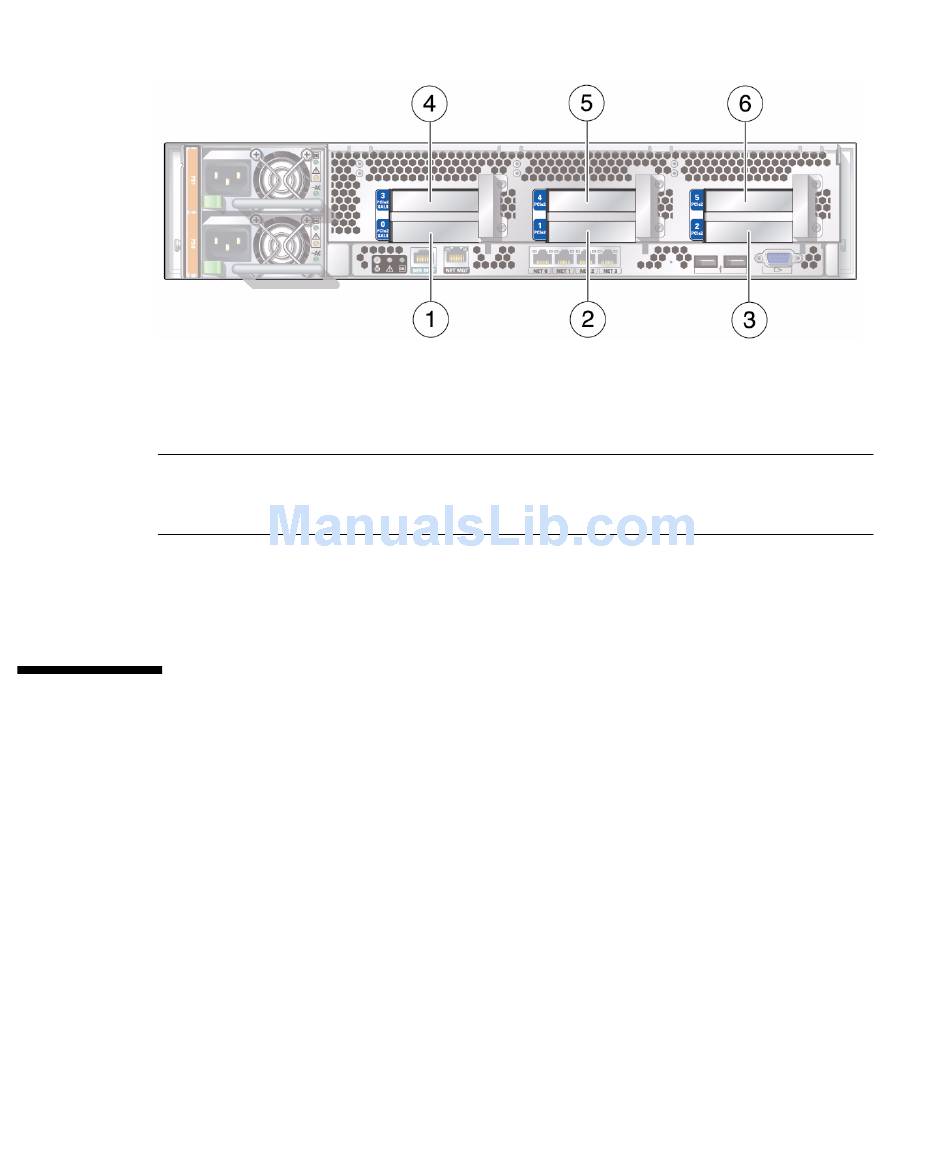

FIGURE:
Figure Legend
1
2
3
Related Information
"Connecting Cables" on page 39
■
▼ Secure Cables in the CMA
1. Once the server cables are connected and placed inside the CMA, open the
velcro cable straps and wrap the straps around the CMA securing the cables
inside the CMA.
48
SPARC T4-1 Server Installation Guide • August 2013
PCIe and PCIe/XAUI Slot Configuration
PCIe slot 0 or XAUI slot 0
PCIe slot 1
PCIe slot 2
4
PCIe slot 3 or XAUI slot 1
5
PCIe slot 4
6
PCIe slot 5
