Installing Slide Rails

"Slide Rail Assemblies" on page 22
■
"Install the Slide Rail Assemblies" on page 25
■

Slide Rail Assemblies

Each slide rail assembly consists of a three-section slide rail and a removable
mounting bracket. The slide rail attaches to the rack posts. The mounting bracket
attaches to the server chassis.

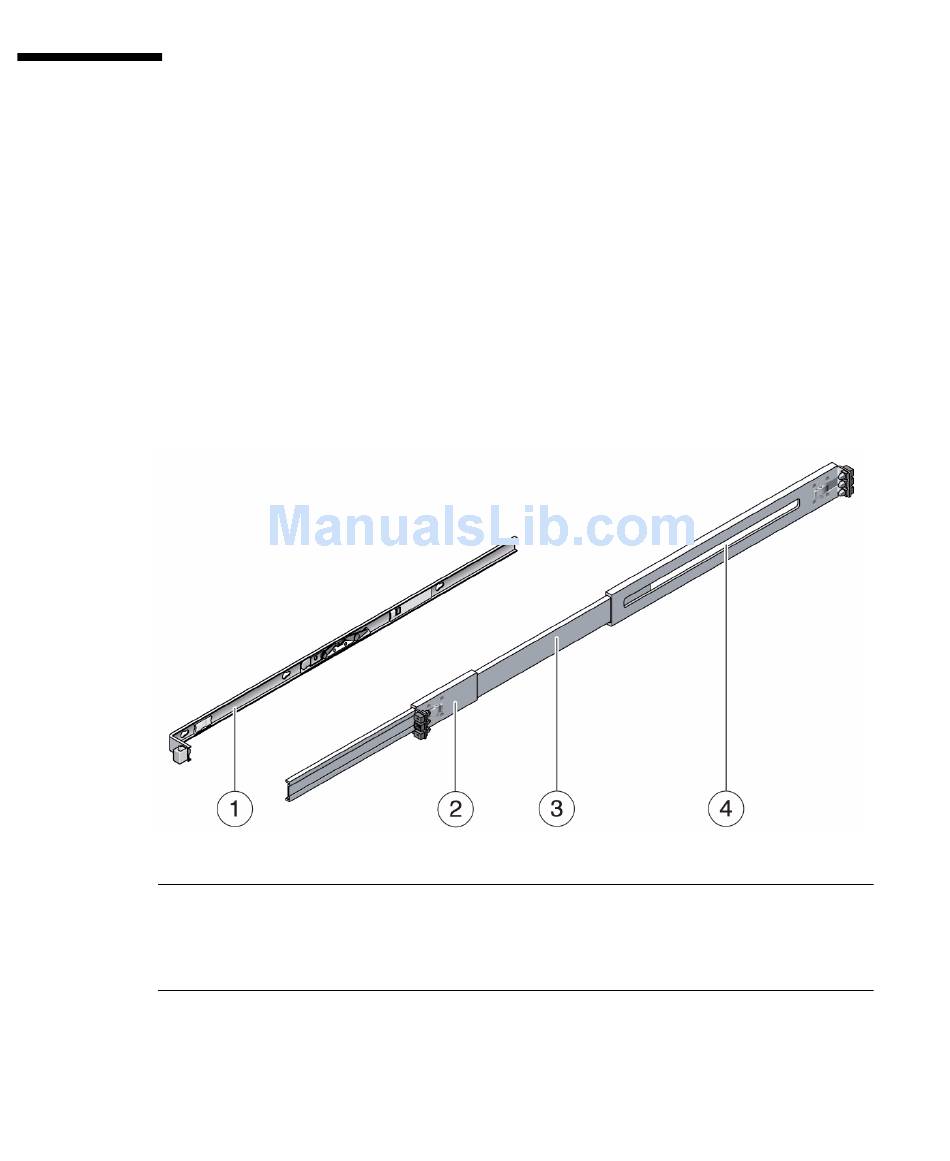

FIGURE:
Figure Legend
1
2
3
4
The slide rails adjust to fit rack depths from 24 in. (61 cm) to 36.5 in. (93 cm). The
■
middle and rear sections of the slide rails have holes for mounting the rail to the
rack posts.
22 SPARC T4-1 Server Installation Guide • August 2013
Sections of the Snap-In Slide Rail Assembly
Mounting bracket
Front section
Middle section
Rear section
