Rear Panel Components

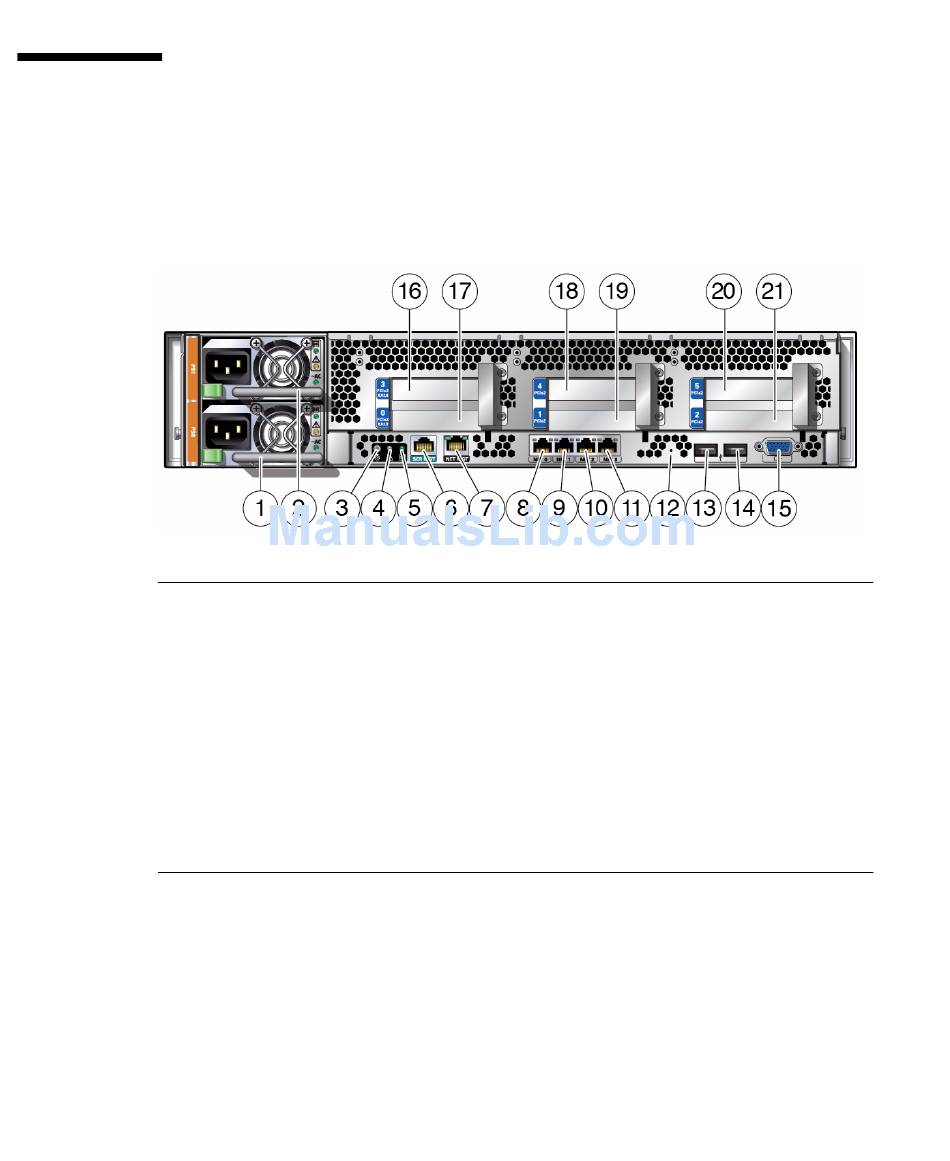

The following figure shows the components that are accessible on the server rear
panel.
FIGURE:
Figure Legend
1
2
3
4
5
6
7
8
9
10 Gbit Ethernet port NET2
11 Gbit Ethernet port NET2
Related Information
"Front Panel Components" on page 3
■
"Front Panel System LEDs and Buttons" on page 4
■
"Rear Panel System LED and Button" on page 7
■
6
SPARC T4-1 Server Installation Guide • August 2013
Components on the Server Rear Panel
Power supply 0
Power supply 1
Locator LED button
Service Required LED
Power OK LED
SP SER MGT port
SP NET MGT port
Gbit Ethernet port NET0
Gbit Ethernet port NET1
12 Access to physical presence button
13 USB port 0
14 USB port 1
15 VGA video port
16 PCIe slot 3 or XAUI slot 1
17 PCIe slot 0 or XAUI slot 0
18 PCIe slot 4
19 PCIe slot 1
20 PCIe slot 5
21 PCIe slot 2
