Disassembly

Removing The System Memory

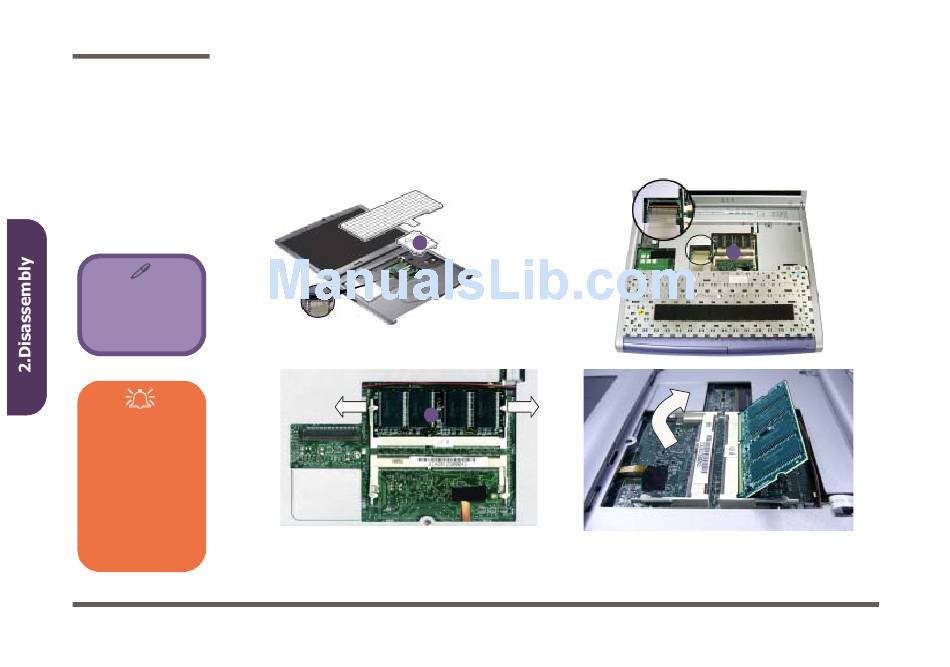

Figure 2 - 4
Memory Removal
1. Lift the RAM bay shielding 1(Figure 2 - 4a) up off the memory sockets 2 (Figure 2 - 4b).
Sequence
2. Gently pull the two latches at the side of the memory socket outwards, as indicated in Figure 2 - 4c, to release the
a. Lift away the RAM
module.
shielding module.
3. The memory module will pop-up (Figure 2 - 4d) and can be lifted out.
b. Locate the memory
sockets.
c. Pull the latch(es) to
release the mod-
ule(s).
d. When the module
pops up, lift it out.
1. RAM bay shielding
module
3. Memory module(s)
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's perform-
ance.
2 - 12 Removing The System Memory
a.
1
c.
3
b.
2
d.
