EUROCOM 4200 Service Manual page 41

5. Slide the LED cover module and board 1 ( Figure 2 - 9a ) towards you, and lift it up and away ( Note : You do not
need to separate the LEDs held to the underside of the board by three screws).
6. Remove the LCD cable cover 2 ( Figure 2 - 9a ) by gently squeezing it as you lift it up.
7. Disconnect cable set 4 ( Figure 2 - 9b ) from the LCD to the mainboard at point 5 ( Figure 2 - 9b ).
8. Remove screws 6 & 7 ( Figure 2 - 9c) at the rear of computer and carefully lift the LCD up and out of the main
assembly.
9. Remove the remaining three screws 9 & 11 ( Figure 2 - 9d ) from the top of the case.
10. Carefully raise the top of the case (be careful not to lose the infrared lens cover 8 in Figure 2 - 9c ) just enough to
enable you to disconnect the touchpad cable 12 ( Figure 2 - 9d ) from the socket on the mainboard.
11. Ease the top case slowly up and away from the main assembly.
a.
1
2
c.
6 8
b.
3
4
5
e.
13
9
7
d.
Sequence (cont.)
a. Remove the LED
cover module and
LCD cable cover.
b. Disconnect the ca-
bles from the LCD.
c. Unscrew
screws from the rear
of the computer and
remove the LCD.
d. Unscrew all the re-
maining screws and
raise the top case to
allow you to discon-
nect the touchpad
cable.
e. Remove
case.
10
11
1. LED cover module
2. LCD cable cover
3. LCD
8. Infrared Lens cover
13. Top case
12
• 5 Screws
Remove the Top Case and LCD 2 - 17
Disassembly

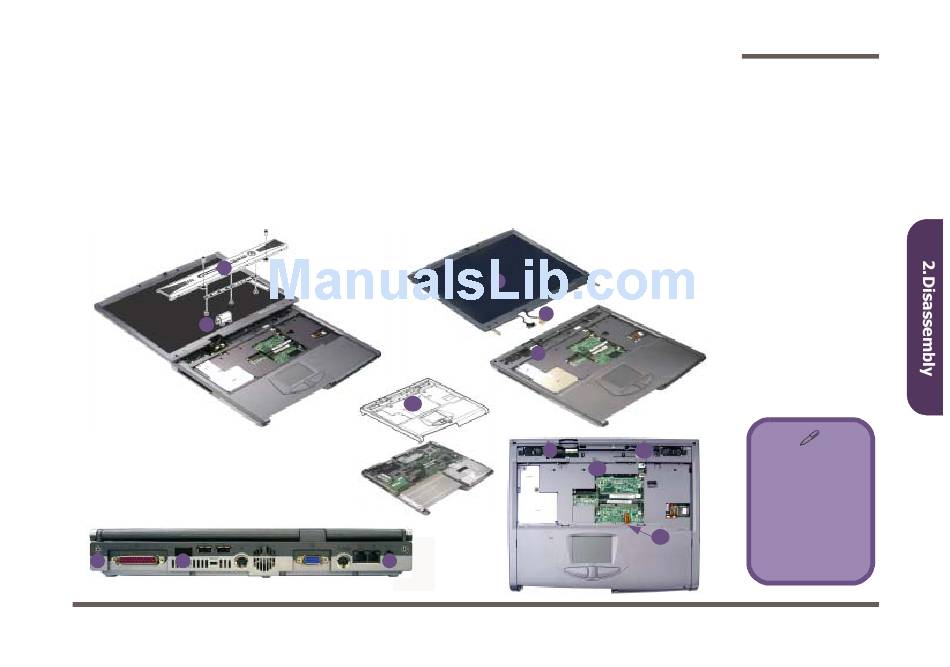

Figure 2 - 9
Top Case
Removal
the 2
