Remove the Modem

1. Remove the modem bay shield 1 ( Figure 2 - 7a ) covering the modem bay by removing the screws 2-3 ( Figure 2 -
7a ).
2. Remove screw 4 ( Figure 2 - 7b) holding the modem cable place.
3. Release the modem cable 5 ( Figure 2 - 7b ) and lift the modem 6 ( Figure 2 - 7c) from the board.
a.
2
1
Modem Cable
The procedure described here is sufficient to enable the
removal of the modem module itself.
If the modem cable also needs to be removed, or a new
modem module and cable inserted, then the top case
must also be removed to access the cable connector
("To remove the Top Case and LCD:" on page 2 - 5).
3
b.
4
5
c.
6
Disassembly

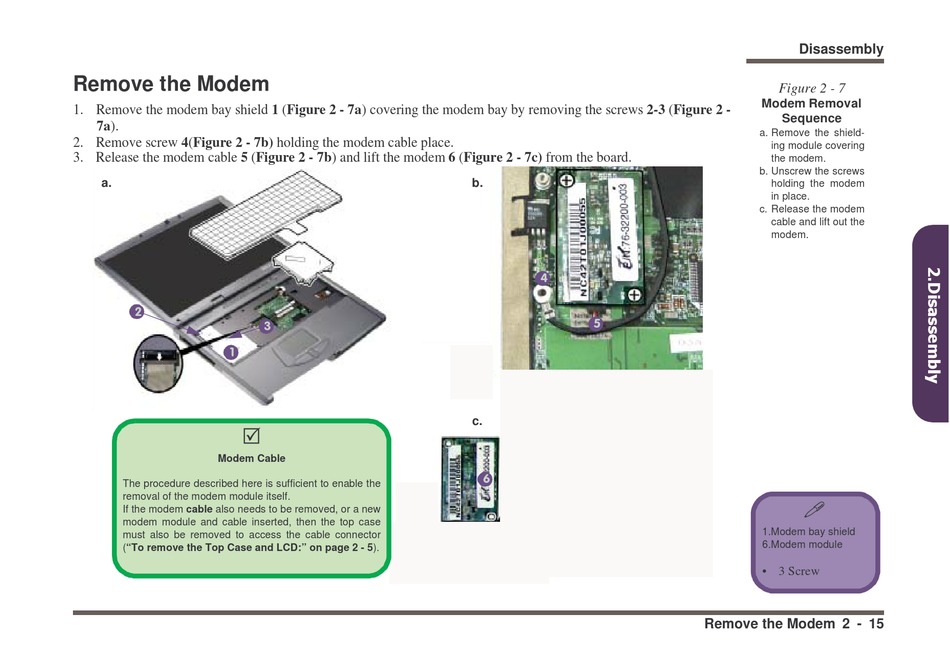

Figure 2 - 7
Modem Removal
Sequence
a. Remove the shield-
ing module covering
the modem.
b. Unscrew the screws
holding the modem
in place.
c. Release the modem
cable and lift out the
modem.
1.Modem bay shield
6.Modem module
• 3 Screw
Remove the Modem 2 - 15
