Disassembly

Remove the Bottom Case and Audio Board

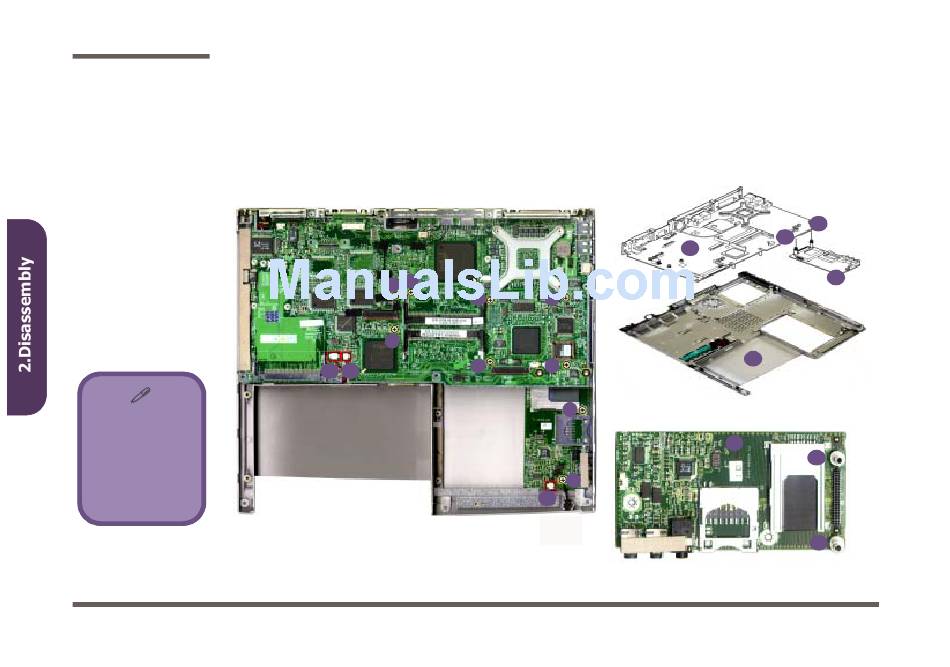

Figure 2 - 13
Bottom Case and
1. Remove the screws 1-9 ( Figure 2 - 13a ) from the mainboard and audio board.
Audio Board
2. Remove the connectors at points 10-12 ( Figure 2 - 13a ).
Removal
3. Gently raise the board assembly away from the bottom of the case.
Sequence
4. Release the nuts at points 13-14 ( Figure 2 - 13b ) holding the bolts from the audio board 15 ( Figure 2 - 13b/c ).
a. Remove the screws
5. Carefully separate the audio board from the mainboard.
from the bottom of
the case, and re-
a.
lease the connec-
tors.
b. Raise the board
away from the bot-
tom of the case.
c. Separate the audio
board from the
mainboard.
15. Audio board
16.Mainboard assem
bly
17. Bottom case
• 2 Nuts
• 9 Screws
2 - 20 Remove the Bottom Case and Audio Board
2
1
4
3
5
11 12
b.
16
6
7
8
c.
9
10
14
13
15
17
15
13
14
