Remove The Fan Unit; Remove The Pcmcia Assembly - EUROCOM 4200 Service Manual

Remove the Fan Unit

1. Remove the screws 1-3 ( Figure 2 - 14a ) from the fan unit.
2. Unplug the connector 4 ( Figure 2 - 14b ) from the fan unit to the mainboard.
3. Lift the fan unit away from the mainboard.
a.
4 1
3

Remove the PCMCIA assembly

1. Carefully lift the PCMCIA unit up and away from the mainboard (Note: The screws anchoring this assembly will
have been removed in "Remove the Bottom Case and Audio Board" on page 2 - 20 (screws 4-7 ).
b.
2
1
6
5
Remove the Fan Unit 2 - 21
Disassembly

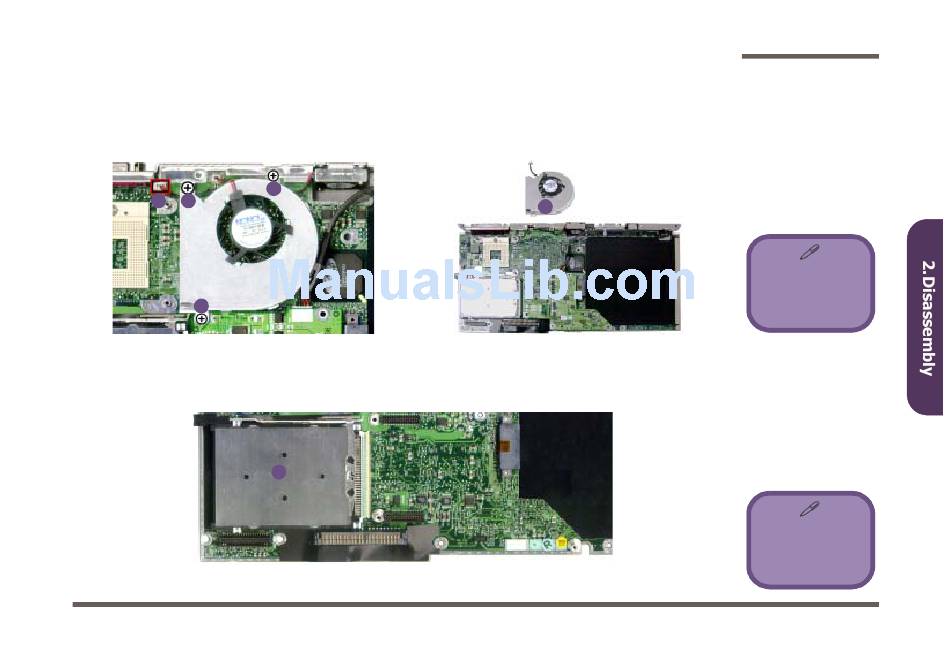

Figure 2 - 14
Fan Unit
Removal
Sequence
a.Remove the screws
from the fan unit,
and release the con-
nector.
b.Lift the fan unit away
from the bottom of
the case.
5. Fan Unit
• 3 Screws
Figure 2 - 15
PCMCIA
assembly
Removal
Sequence
Lift the PCMCIA unit
up and away from
the mainboard.
6. PCMCIA Unit
