External Locator - Right Side & Bottom Views
1
5
2
3
3
4 6
2
1
3
4 5
6
11
9 10
7
8
5
External Locator - Right Side & Bottom Views 1 - 9
Introduction

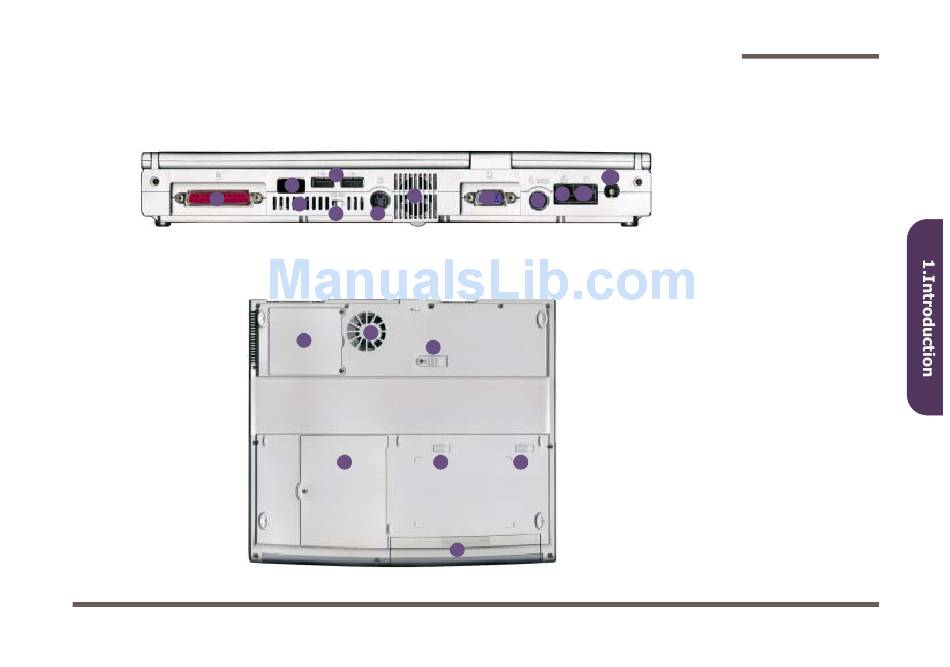

Figure 1 - 4
Right Side
1. Parallel Port
2. Infrared Port
3. Vent
4. Security Lock
5. Dual USB Ports
6. S-Video Output
Connector
7. Exrternal Monitor
CRT Port
8. PS/2 Type Port
9. LAN Jack
10.Phone Jack
11.DC-In Jack
Figure 1 - 5
Bottom View
1. CPU Cover
2. Fan Outlet
3. CD Device
Release Latch
4. Hard Disk Drive
Cover
5. Battery Release
Latches
6. Battery
