Disassembly

Remove the Hard Disk Drive Assembly

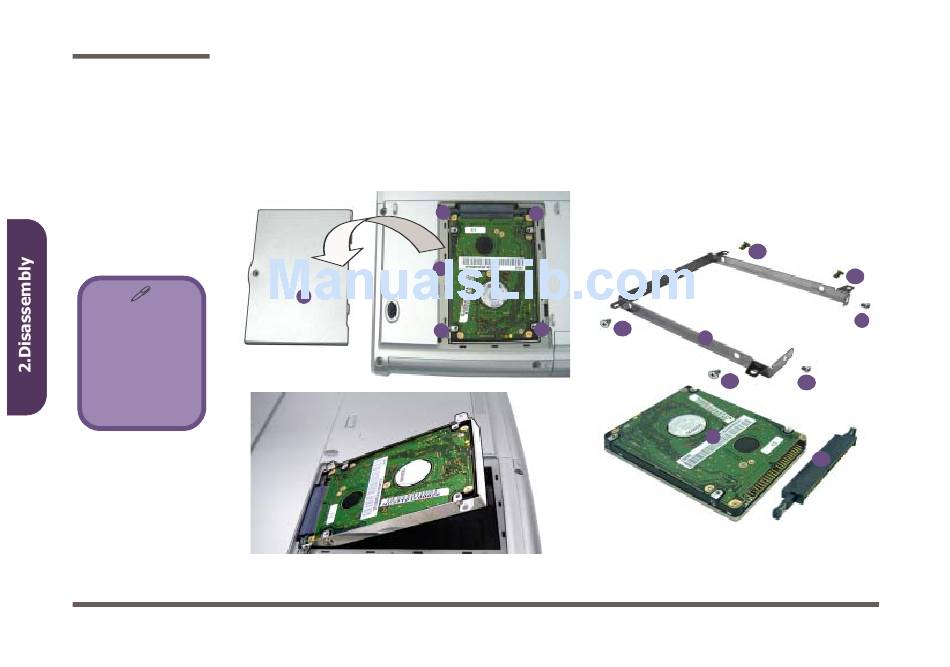

Figure 2 - 2
Hard Disk
1. Turn the computer over.
Removal
2. Remove screw 1 (Figure 2 - 2a) from the hard disk cover 2, and remove the cover.
Sequence
3. Remove the screws 3-6 (Figure 2 - 2a) which hold the HDD assembly in place.
a. Remove the cover
4. Lift the HDD assembly out of the case (Figure 2 - 2b).
and screws.
5. Remove the HDD from the bracket 8 by removing screws 9-14 in(Figure 2 - 2c) from the bracket and connector 15.
b. Lift the HDD assem-
.
bly out.
c. Remove the HDD
from the HDD as-
sembly.
2. HDD cover module
7. HDD
8. HDD assembly
15. HDD connector
2 - 10 Remove the Hard Disk Drive Assembly
4
1
2
3
a.
b.
5
12
6
8
7
c.
13
14
9
11
10
15
