Remove The Floppy Disk Drive Assembly; Remove The Battery Bracket - EUROCOM 4200 Service Manual

Remove the Floppy Disk Drive Assembly

1. Remove screws 1-3 ( Figure 2 - 11 ) from the floppy disk assembly.
2. Remove the ribbon cable from the socket and lift out the floppy disk drive assembly.

Remove the Battery Bracket

1. Remove screws 4-7 ( Figure 2 - 12 ).
2. Remove the battery bracket.
1
4
2
6
7
9
5
8
3
Remove the Floppy Disk Drive Assembly 2 - 19
Disassembly

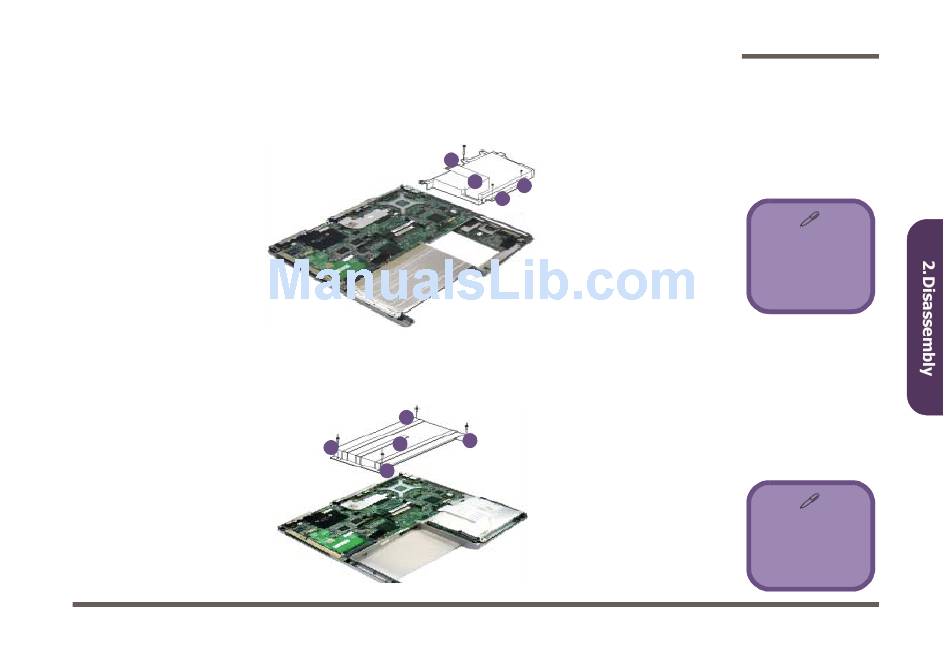

Figure 2 - 11
Floppy Disk
Drive Removal
Sequence
Unscrew the screws
and remove the flop-
py drive assembly.
4. Floppy disk drive as-
sembly
• 3 Screws
Figure 2 - 12
Battery Bracket
Removal
Sequence
Unscrew the screws
and remove the bat-
tery bracket.
9. Battery bracket
• 4 Screws
