Remove the CD-Device

1. Turn off the computer.
2. Turn the computer over.
3. Remove the screw from the CD-Device release latch 1 ( Figure 2 - 5a )
4. Apply pressure to the sliding release latch 1 to slide the CD-Device 2 ( Figure 2 - 5b) out of the bay..
a. b.
1
2
1
Remove the CD-Device 2 - 13
Disassembly

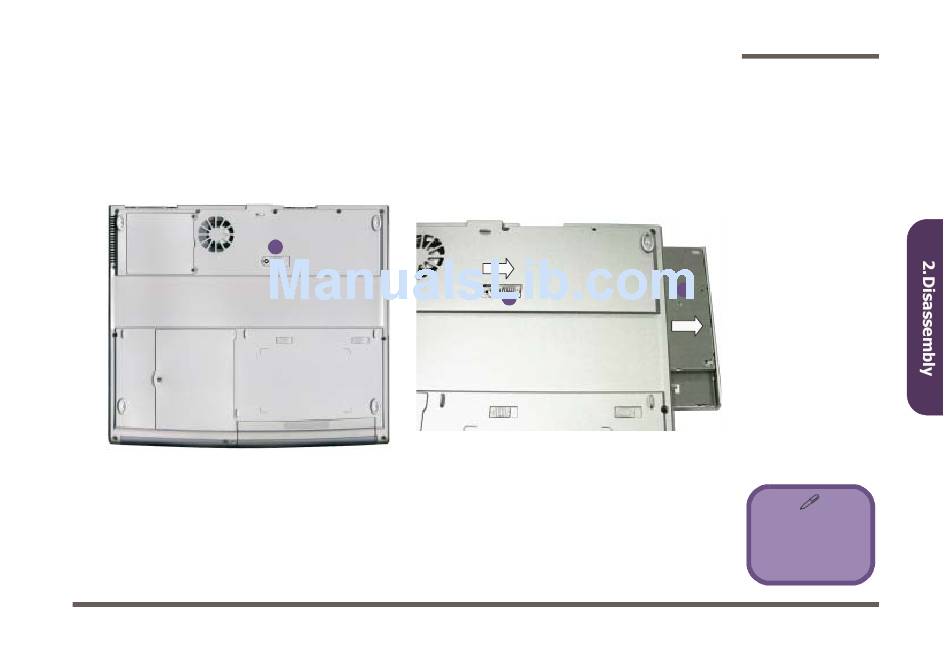

Figure 2 - 5
CD Device
Removal
Sequence
a. Remove the screw
from the CD Device.
b. Apply pressure to
the sliding release
latch to slide the de-
vice out of the bay.
2. CD device
• 1 Screw
