Remove The Keyboard

1. Turn off the computer.
2. Use a small screwdriver or a straightened paper clip to press in the latches 1-4 (Figure 2 - 3a) to release the key-
board.
3. Elevate the keyboard from its normal position.
4. Carefully lift the keyboard up and out, making sure not to bend or twist the keyboard ribbon cable 5 (Figure 2 - 3b).
5. Disconnect the keyboard ribbon cable from the locking collar socket 6 (Figure 2 - 3b).
a.
1 2
c.
b.
3 4
Keyboard Tabs
7
6
5
Disassembly

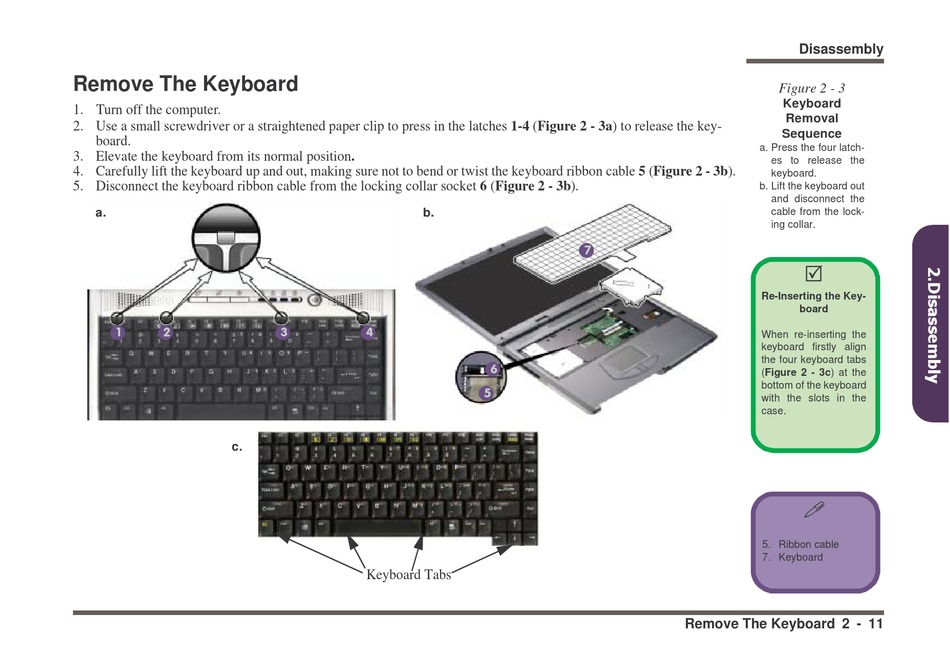

Figure 2 - 3
Keyboard
Removal
Sequence
a. Press the four latch-
es to release the
keyboard.
b. Lift the keyboard out
and disconnect the
cable from the lock-
ing collar.
Re-Inserting the Key-
board
When re-inserting the
keyboard firstly align
the four keyboard tabs
(Figure 2 - 3c) at the
bottom of the keyboard
with the slots in the
case.
5. Ribbon cable
7. Keyboard
Remove The Keyboard 2 - 11
