Remove the Battery

1. With the computer shut down and on a level surface, raise the LCD cover.
2. Remove the palm rest by applying gentle upward pressure with your fingers close to the area around the left Alt
key, and the right Ctrl key (Figure 2 - 1-A).
3. Turn the computer over and locate the battery release latches 1 and 2 in (Figure 2 - 1-a).
4. Latch 1 should slide to the right and remain in place. Hold latch 2 in place as you slide the battery out towards you.
5. To replace the palm rest, slide it back in to place, and then apply a slight downward pressure to points 3 and 4 in
order to snap it gently back down.
a.
3
5
b.
4
1 2
6
Remove the Battery 2 - 9
Disassembly

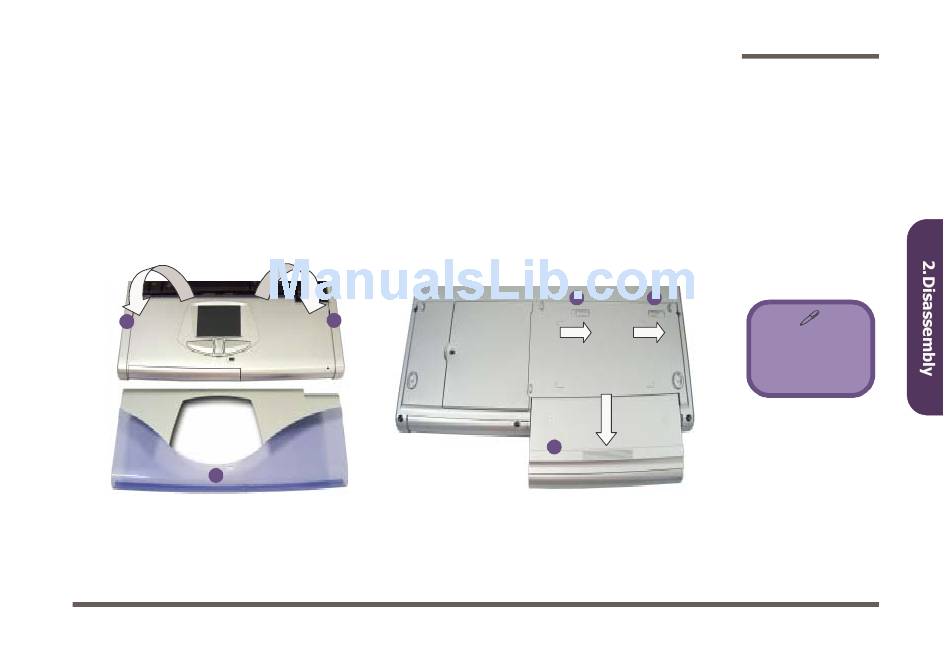

Figure 2 - 1
Battery Removal
Sequence
a. Palm rest removal
b. Battery removal.
5. Palm Rest
6. Battery
