Disassembly

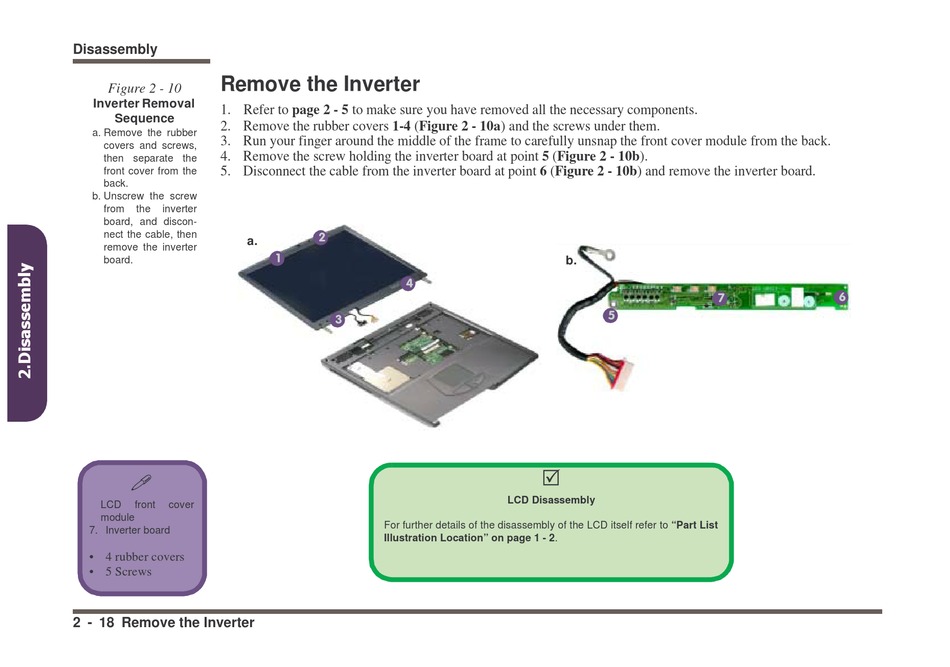

Remove the Inverter

Figure 2 - 10
Inverter Removal
1. Refer to page 2 - 5 to make sure you have removed all the necessary components.
Sequence
2. Remove the rubber covers 1-4 ( Figure 2 - 10a ) and the screws under them.
a. Remove the rubber
3. Run your finger around the middle of the frame to carefully unsnap the front cover module from the back.
covers and screws,
4. Remove the screw holding the inverter board at point 5 ( Figure 2 - 10b ).
then separate the
5. Disconnect the cable from the inverter board at point 6 ( Figure 2 - 10b ) and remove the inverter board.
front cover from the
back.
b. Unscrew the screw
from the inverter
board, and discon-
nect the cable, then
a.
remove the inverter
board.
LCD front cover
module
7. Inverter board
• 4 rubber covers
• 5 Screws
2 - 18 Remove the Inverter
2
1
4
3
For further details of the disassembly of the LCD itself refer to "Part List
Illustration Location" on page 1 - 2.
b.
5
LCD Disassembly
6
7
