SETTING TRAVEL LIMITS FOR SINGLE GATE (cont)
STEP 7. RECORD OPEN LIMIT
Press SET to record the OPEN LIMIT.
Record the OPEN LIMIT
M1 To Desired
/ / \ \ \ \ / /
OPEN Limit,
SET
PRESS
STEP 8. AUTOMATIC LIMIT ADJUSTMENT AND LOAD
PROFILING
After a brief pause the controller will now automatically close and
open gate several times to adjust the speed at which the limits are
approached and also to learn the normal load profile of the gate.
When the setup is complete the MAIN SCREEN will be displayed
with the gate shown to be Closed. The Gate can now be used.
PEDESTRIAN ACCESS POSITION
After completing the above procedure the Pedestrian access
position is automatically set to a position which is in the middle
of the gate travel. The position can be manually set by following
the SETTING PEDESTRIAN POSITION procedure.

SETTING TRAVEL LIMITS FOR DUAL GATES

This section shows how to set the travel limits for a dual gate installation. The procedure can be partly completed using a
remote control transmitter as a remote console. In order to use a remote control transmitter it must first have at least one of
its buttons coded to the controller's receiver. The function assigned to the transmitter's buttons during coding is of no concern
here as the buttons are temporally assigned to OPEN, CLOSE and SET. Refer to TRANSMITTER MANAGEMENT
Note: The limit setting procedure can be aborted at anytime by pressing EXIT.
STEP1, NAVIGATING TO "SET GATE TRAVEL MENU"

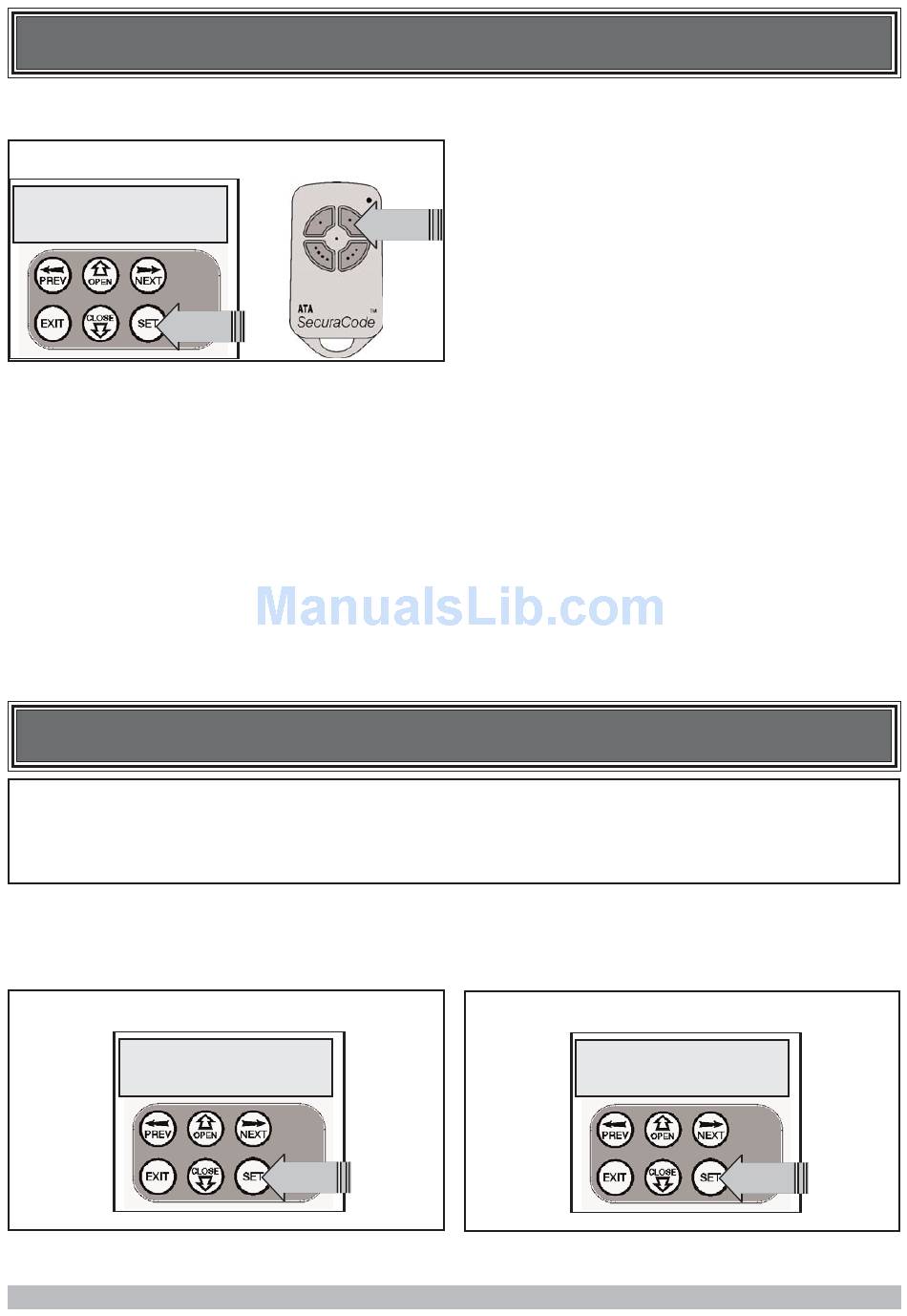

To navigate to the Menu 10.1 from the main screen simply press
PREV to display MENU 10, followed by SET to display MENU
10.1. Press SET again to start the limit setting procedure
Selecting Travel Limit Setup
MENU 10.1
Set Gate Travel
PRESS
OR
PRESS
ERRORS DURING SETTING OF TRAVEL LIMIT
During the above procedure many error checks are preformed. If
an error is detected a message will be displayed indicating the
error.
STEP2. SETTING THE LEFT/RIGHT CONNECTOR.
Make sure that the motor connections have been set correctly for
each
drive
unit,
INSTALLATION. Press SET to confirm the settings are correct..
Confirm Motor Connections
Are Motor L/R
Connections Ok?
12
refer
to
INITIAL
ELECTRICAL
PRESS
CONTINUED...
