MENU 8.4 SERVICE COUNTER (cont)
Viewing Service Counter
Service Counter
(CYCLES)

MENU 8.5 COUNTERS

The controller keeps a count of number of times a particular event
occurs. The list of event counters kepT is shown below.
1: Open Cycles
2:Close Cycles
3:Ped Cycles
4:Setup Limits
5:Comm's Loss
6:Sync Faults
7:Overlaps
8:M1 Open Stall
9:M2 Open Stall
10: M1 Close Stall
11: M2 Close Stall
12: M1 Open Obstructions
13: M2 Open Obstructions
14: M1 Close Obstructions
From time to time it may be necessary to return the controller
memory back to the factory default settings or to remove all trans-
mitters from the system. The Memory Clear tools enable you to
preform these tasks. The Memory Clear tools are accessed from
within MENU 9.
Showing Memory Clear Tools
MENU 9
Memory Clear
Once Menu 9 is selected the PREV or NEXT buttons can be used
to view the Memory Clear options. To Execute the displayed
option simply press SET.
Note if a slave drive unit is attached, its memory will also be
effected.
Also note the diagnostic EVENTS LIST and COUNTERS can
not be cleared
DIAGNOSTIC TOOLS (cont)
60000
15: M2 Close Obstructions
16: M1 Open Overloads
17: M2 Open Overloads
18: M1 Close Overloads
19: M2 Close Overloads
20: M1 PWM Sync Faults
21: M2 PWM Sync Faults
22: M1 PWM Drive Faults
23: M2 PWM Drive Faults
24: M1 Direction Faults
25: M2 Direction Faults
26: M1 Sensor Faults
27: M2 Sensor Faults
CLEARING MEMORY
PRESS
MENU 8.5 COUNTERS (cont)

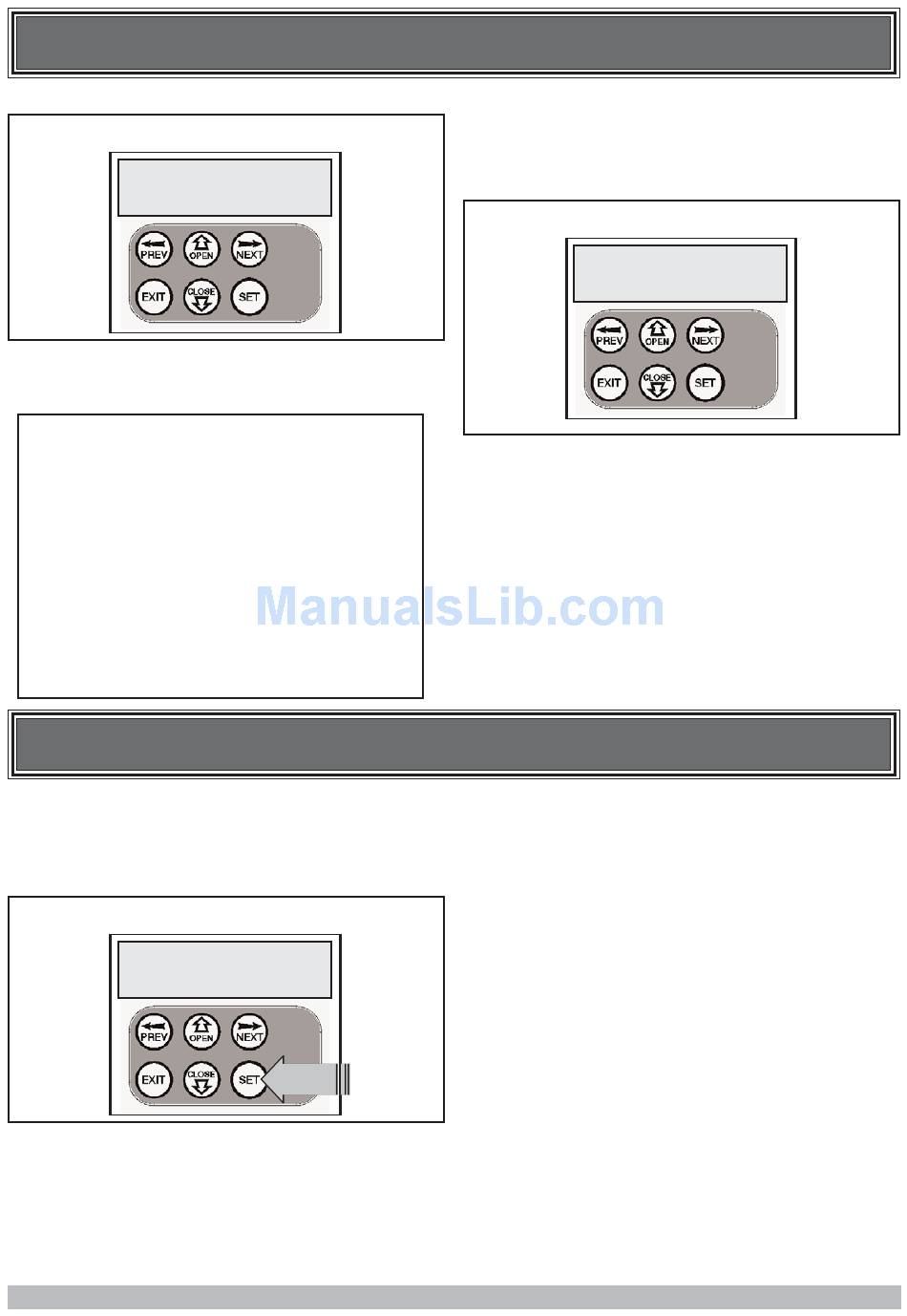

When this tool is selected the first event counter is shown. The
NEXT and PREV buttons are used to step through the list. The
example below shows the OPEN CYCLE event counter with a
value of 1234. When finished viewing simply press EXIT.
1:Open Cycles

MENU 9.1 CLR CONTROLLER

This option will clear the gate controller memory and reload the
factory set defaults for parameters such as the lock time, light
time, auto-close times etc. It will also clear the current pro-
grammed gate travel limits and obstruction profile.

MENU 9.2 CLR RECEIVER

This option will clear all the transmitters from the receiver's
memory (including expansion memory, if fitted). It will also set
the REMOTE CODE SET and TRANSMITTER REPORT
parameters to the factory defaults.

MENU 9.3 CLR EXPANSION

This option is only available if expansion memory is fitted. The
option will clear the expansion receiver memory ie transmitter
numbers 65 to 575 will be deleted.

MENU 9.4 CLR ALL

This option will clear all the controller's memory.
27
Viewing Events
1234
