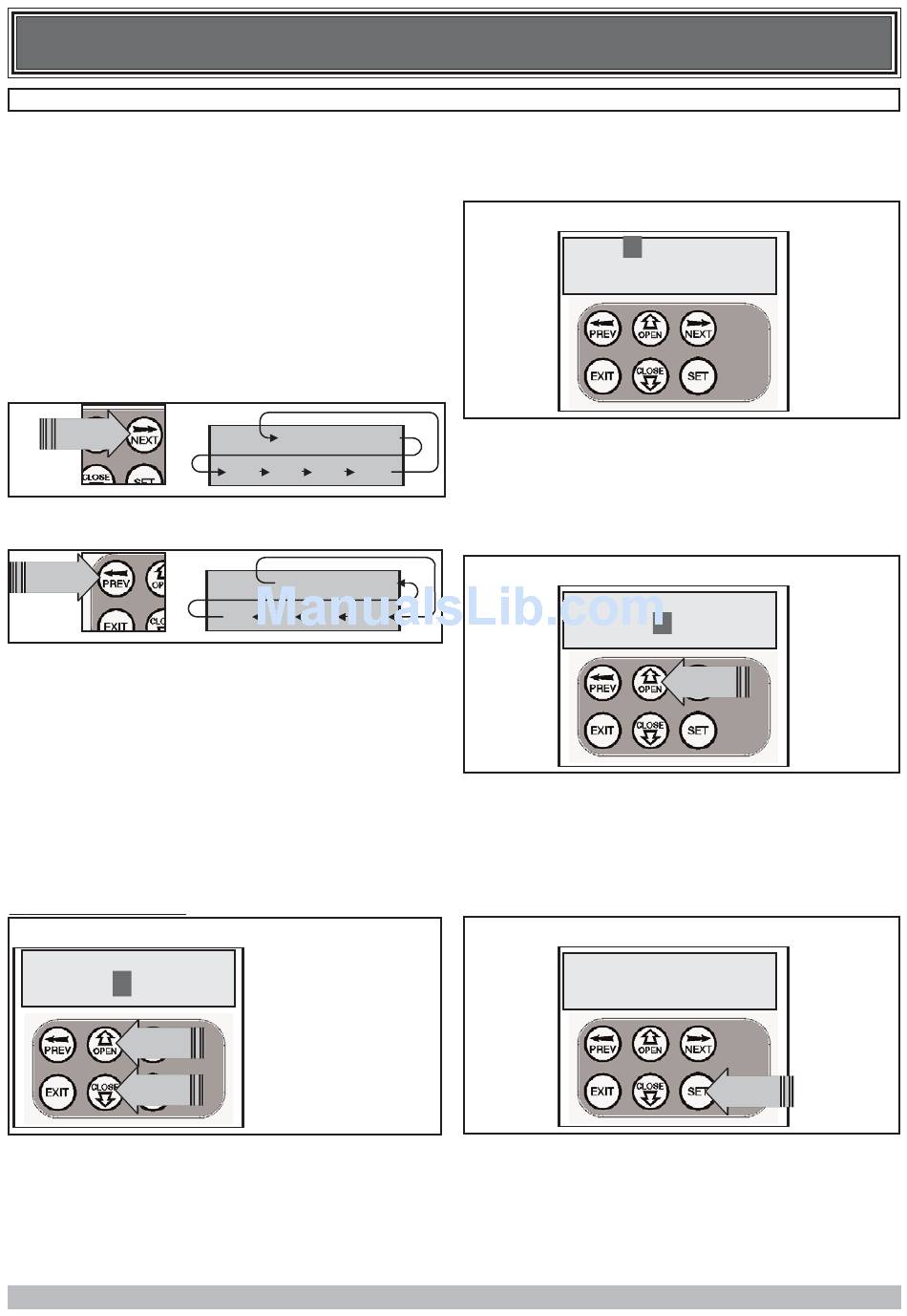

TRANSMITTER EDIT PROCEDURE

THE PROCEDURE BELOW IS USED TO EDIT THE DISPLAYED TRANSMITTER'S SETTINGS.
STEP 1. DISPLAY TRANSMITTER RECORD
Using one of the methods below, display the required transmitters
details.
1. Follow the BASIC CODE TRANSMITTER
PROCEDURE to STEP 3 for a new or existing
transmitter.
2. Select EDIT when LISTING TRANSMITTERS
STEP 2. SELECTING THE SETTING TO EDIT
Select the desired field by using NEXT or PREV to move the
cursor to the left or right. The cursors movement using NEXT and
PREV is shown below
Moving Cursor Using NEXT
PRESS
Moving Cursor Using PREV
PRESS
STEP 3. EDITING THE BUTTON FUNCTION FIELDS
Preform this step if one of the button function fields is selected.
Use UP and DOWN to change the displayed value. The available
functions are shown below. Selecting OFF will prevent the
controller responding to the button at all. When the correct setting
has been made repeat STEP 2 to select the next field to edit or
continue with STEP 5.
The example below shows editing the function assigned to the
transmitter button 2.
The transmitter in the example is transmitter number 123 which
has a label of A & B Smith.
AVAILABLE FUNCTIONS
Selecting Button Function
#123 A & B SMITH
D
OSC PED LGT VAC
PRESS
PRESS
#123 A & B SMITH
OSC PED LGT VAC
#123 A & B SMITH
OSC PED LGT VAC
VAC (Vacation Mode)
LGT (Courtesy Light)
STP (Stop)
OPN (Open)
CLS (Close)
SWP (Swipe)
PED (Pedestrian access)
OSC (Open/Stop/Close)
OFF (No action)
STEP 4. EDITING A CHARACTER FIELD
Preform this step if one of the character fields of the transmitter
name is selected.
Character For Name Selected
#123 A & B SMITH
OSC PED LGT VAC
Press UP or DOWN to change the selected character. When a
change is made the bottom line of the display will show a list of
available characters to choose from with the current value
indicated at the cursor position. When the correct character has
been selected repeat STEP 2 to select the next field to edit or
continue with STEP 5.
Character For Name Edited
#123 B & B SMITH
67890 AB CDEFGHIJ
STEP 5. SAVING THE CHANGES
Press SET to save the settings or EXIT to abort without saving.
NOTE If all button functions are set to OFF then when SET is
pressed, the controller will prompt you to confirm the transmit-
ter.is to be deleted. Press SET to delete or EXIT to
continue editing.
#123 A & B SMITH
OSC PED LGT VAC
22
A
B
PRESS
Saving Changes
PRESS
