INITIAL ELECTRICAL INSTALLATION

CABLES WHICH HAVE A GREEN / YELLOW COLOURED INSULATION
ARE FOR EARTHING PURPOSES ONLY. NEVER USE THESE CABLES FOR ANY OTHER PURPOSE.
STEP 1. INSTALLING ANTENNA
Mount the antenna at or above the height of the gate or fence
(whichever is higher) for optimal reception. Do not cut the coax-
ial cable.

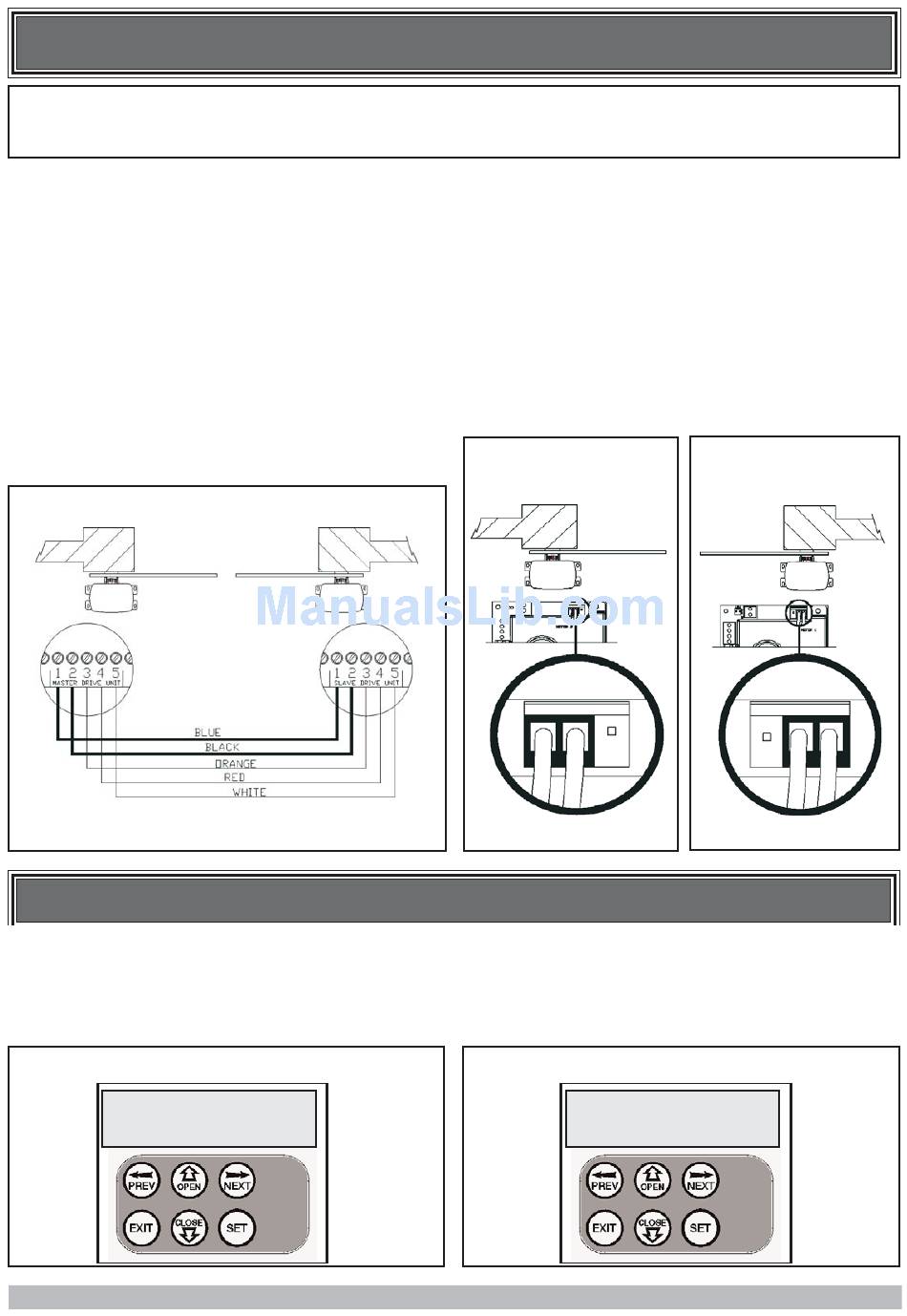

STEP 2. CONNECTING MOTOR1 (Master) AND
MOTOR2 (Slave) DRIVE UNITS
When dual gates are to be used the Master and Slave Sliding Gate
Openers are connected together using a 5 wire cable (ATA
ORDER CODE 05713 or 05711) as shown below. Ensure that
each end of the cable passes through a suitable cable gland which
in turn is securely tightened to prevent ingress of dust, pests and
water.
STEP 2. Connecting Dual Drive Units

POWERING UP THE DRIVE UNIT

After checking for damage to the power lead and ensuring that it
will not entangle with the drive mechanism, apply power to the
Opener.The controller will go through a startup sequence
displaying the STARTUP SCREEN which indicates the controller
type and firmware version.
STARTUP SCREEN
A.T.A CB11
Firmware #.##
CAUTION:
NOTE
The integrated controller permits either Motor 1 or Motor 2 to be
selected to open first, therefore, the side that each drive unit is
mounted on is not fixed to which gate opens first.
STEP 3. SELECTING LEFT OR RIGHT HAND
INSTALLATION.
Using the figure below, place the motor connector for each drive
unit so as to reflect the side of the gateway that it is installed.
STEP 3 - Selecting Left / Right Hand installation
Left Hand
After a short delay the MAIN SCREEN will be displayed. If this
is the first time the controller has been used the MAIN SCREEN
should indicate that the limits are not set If the display shows that
the gate is disengaged or some input is active then rectify the
situation before continuing with the procedure for setting the
travel limits for single or dual gates.
Limits Not Set!
P P r r e e s s s s < < > > t t o o A A c c c c e e s s s s M M E E N N U U S S
10
Right Hand
MAIN SCREEN
