SETTING TRAVEL LIMITS FOR DUAL GATES (cont)

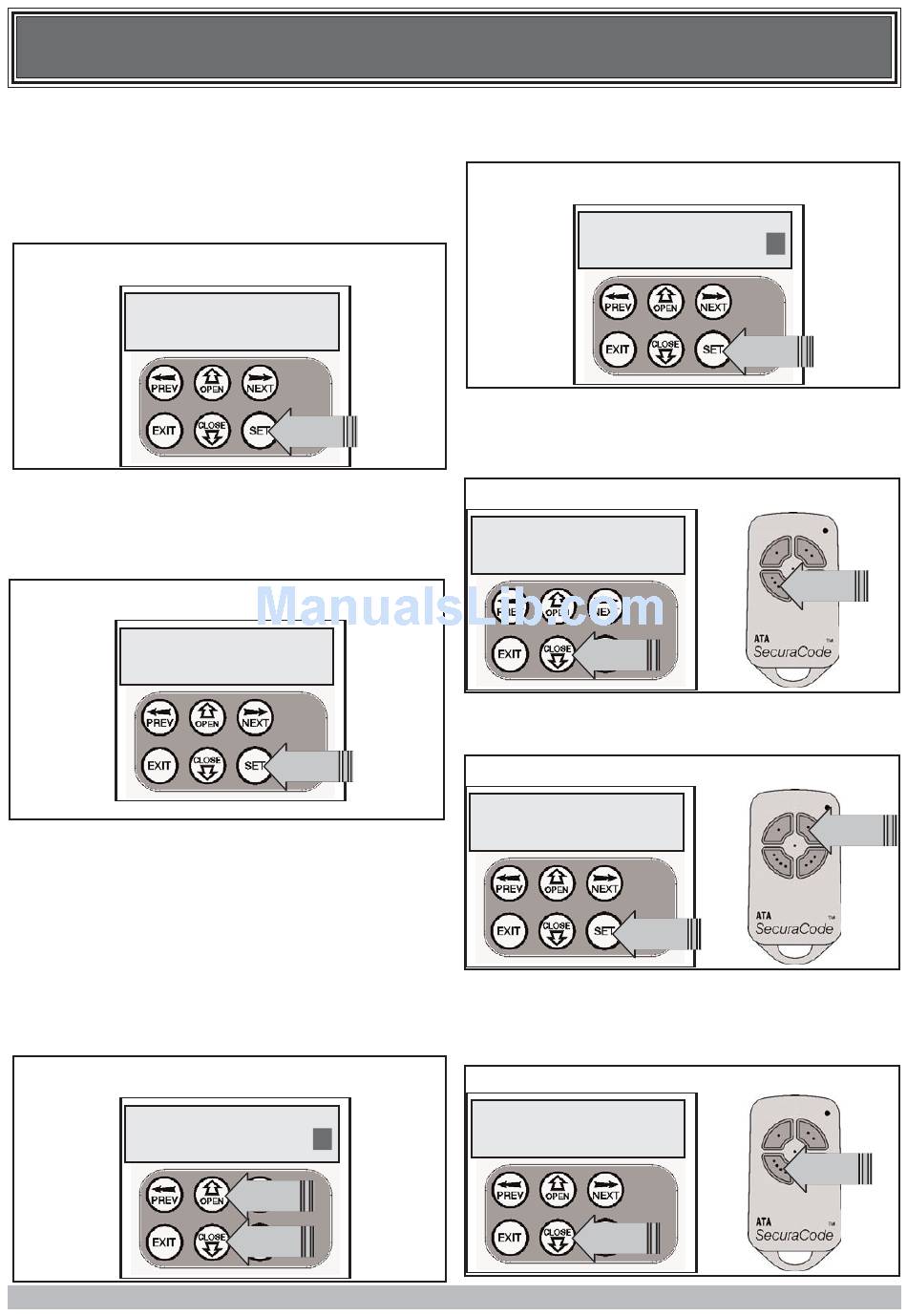

STEP 3. CONFIRMING DUAL GATE MODE
The controller will now determine whether a single or dual gate
installation is required by trying to detect the presence of a second
drive unit. As this is a dual gate installation, the screen below
should be shown. Press SET to continue. If Single Gate Mode is
displayed then check the connections between the two drive units
and press EXIT to restart from step 2.
Confirm Dual Gate Mode
M2 Detected!
Dual Gate Mode
STEP 4. CONFIRMING GATES ARE NOT CLOSED
Before proceeding, the gates must not be in the closed position.
This is so that each leaf can be moved freely without interfering
with the other. If the gates are closed, simply partially open them
manually, then re-engage them. Press SET to continue.
Confirm Gate is not closed
Gate must NOT Be
Closed Ok?
STEP 5. SELECTING WHICH MOTOR OPENS
FIRST DURING NORMAL OPERATION
The controller prompts for the motor which is to be opened first
during normal operation to be selected. The selected motor is also
used for providing pedestrian access. Use OPEN or CLOSE to
change the displayed motor. NOTE The motor selected will
determine the order in which each motor will be processed in
the following steps. The documented procedure here shows
the steps for when Motor 1 is selected. If in practice Motor 2
is selected to open first, then the actually displayed motor
numbers will be the opposite to those shown here.
Select Motor That Opens First
Gate That Always
Opens First = M1
PRESS
PRESS
1
PRESS
PRESS
STEP 6. SAVE SELECTION
Press SET to save the selection (Motor 1 is selected for
documentation purposes).
Press SET To Save The Selection
Gate That Always
Opens First = M1
STEP 7. SETTING CLOSE TRAVEL LIMIT FOR GATE 2
The controller will now prompt for gate 2 to be driven to the
desired CLOSE LIMIT. Use CLOSE to drive the gate to the
desired close limit.
Drive Gate 2 to the desired CLOSE LIMIT
M2 To Desired
/ / \ \ \ \ / /
CLOSE Limit,
PRESS
STEP 8. RECORD GATE 2 CLOSE LIMIT
Press SET to record the CLOSE LIMIT for Gate 2.
Record the CLOSE LIMIT for Gate 2
M2 To Desired
/ / \ \ \ \ / /
CLOSE Limit,
STEP 9. SETTING CLOSE TRAVEL LIMIT FOR GATE 1
The controller will now prompt for gate 1 to be driven to the
desired CLOSE LIMIT. Use CLOSE to drive the gate to the
desired close limit.
Drive Gate 1 to the desired CLOSE LIMIT
M1 To Desired
/ / \ \ \ \ / /
CLOSE Limit,
PRESS
13
1
PRESS
SET
OR
SET
OR
PRESS
SET
OR
PRESS
PRESS
PRESS
