Control Board Layout - Automatic Technology Easy Slider Installation Instructions Manual

*1& 2 24VDC output for powering accessories 3A(max)
*3. Lock relay output N/C contact
*4. Lock relay output COM contact
*5. Lock relay output N/O contact
6. Slave / Master connections
*7. COM terminal for inputs terminals 8..14
*8. P.E N/C input terminal
*9. OPN N/C input terminal
*10. STP N/C input terminal
*11. CLS N/O input terminal
*12. OSC N/O input terminal
*13. SWP N/O input terminal
*14. PED N/O input terminal
*15. PE input jumper (remove when 8 is used)

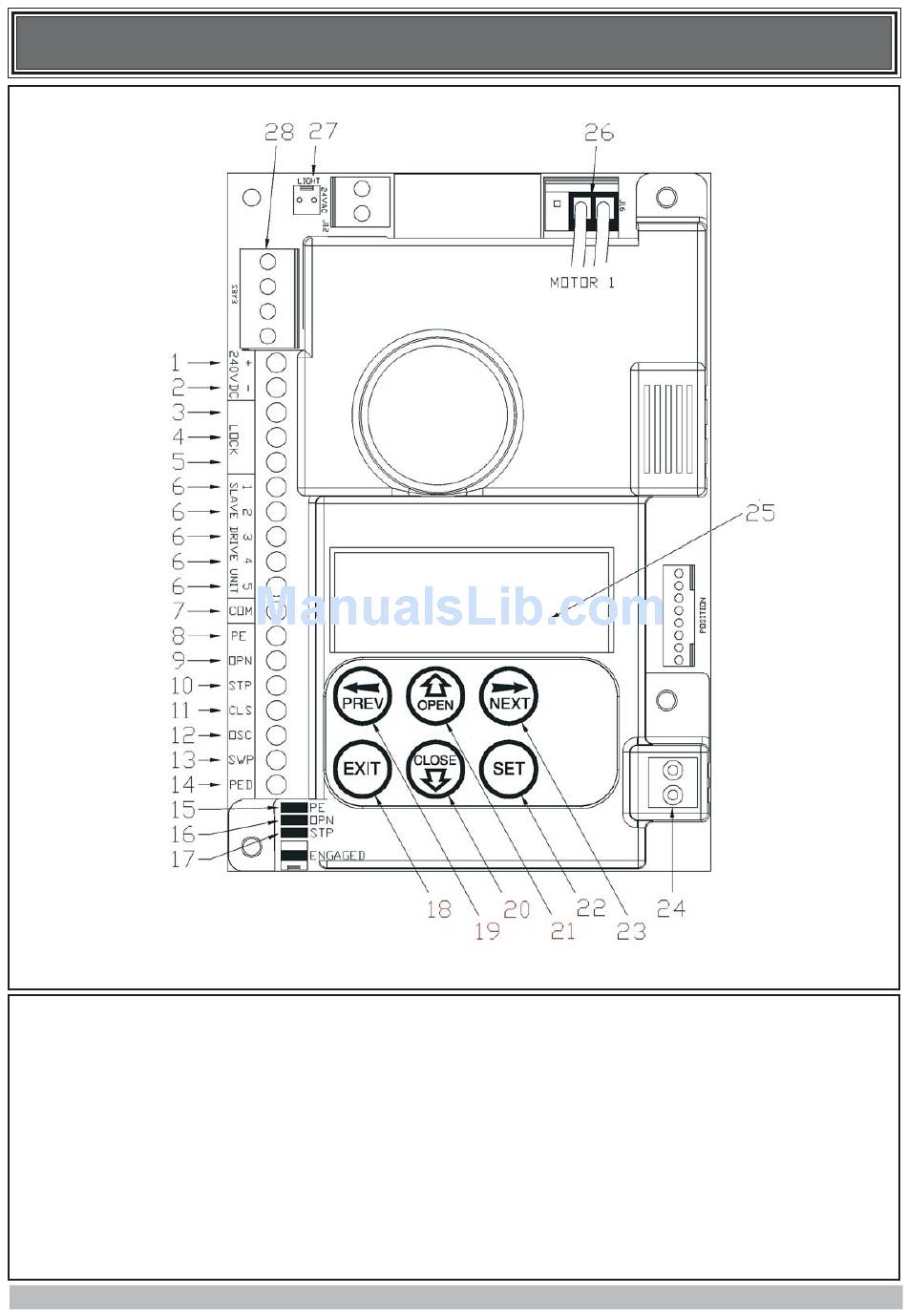

CONTROL BOARD LAYOUT

*16. OPN input jumper (remove when 9 is used)
*17. STP input jumper (remove when 10 is used)
*18. Console Exit button
*19. Console Previous button
*20. Console Down / Close button
*21. Console Up / Open button
*22. Console SET button
*23. Console Next button
*24. Antenna connector
*25. Console Display
26. Motor installation side selector
*27. Optional light module interface connector
*28. Standby battery charger / solar connector
* Not present on slave version
