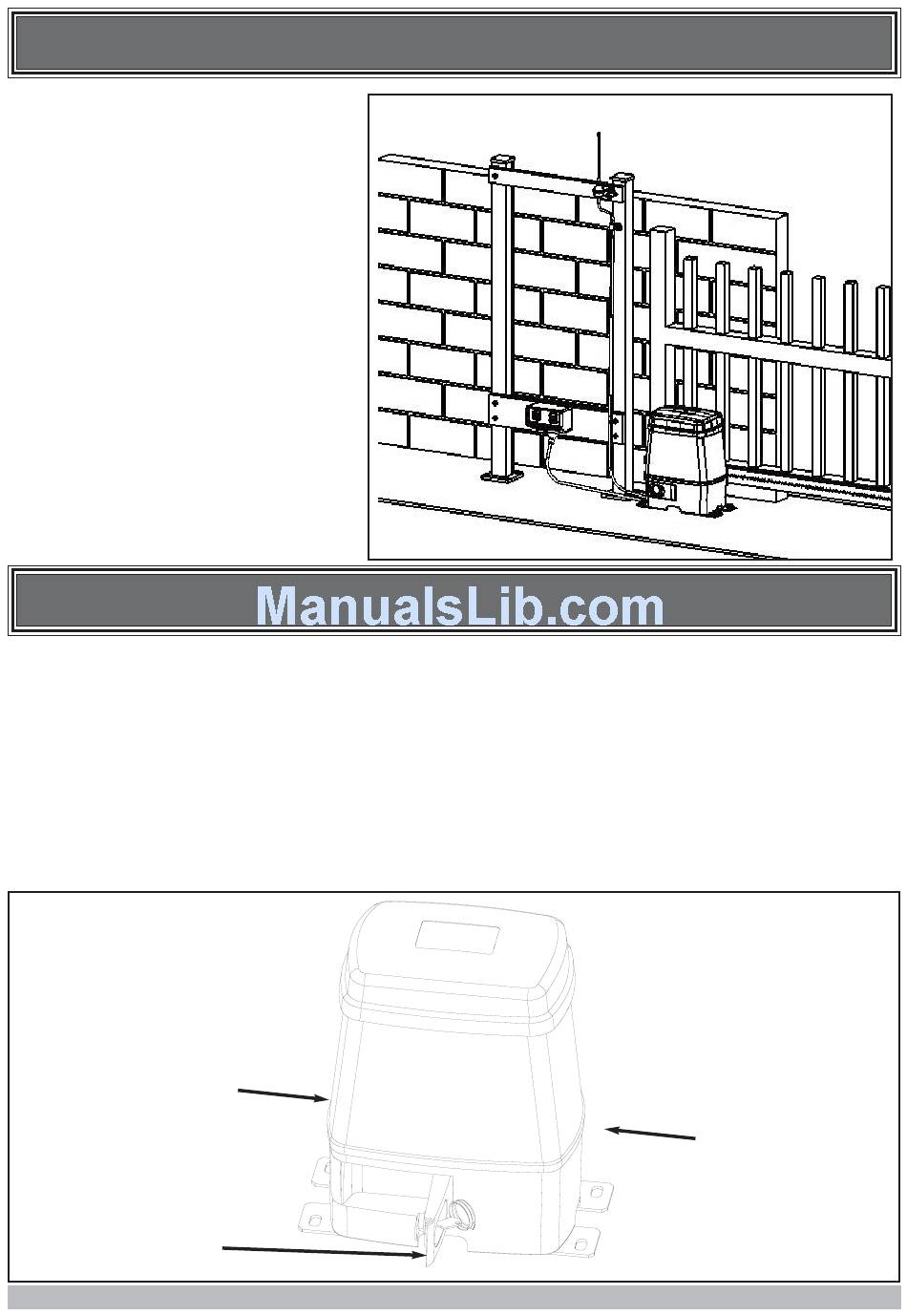

The ATA EasySlider Gate Opener
consists of one sliding gate drive unit
with integrated controller, two hand held
transmitters and an antenna.
INTEGRATED CONTROLLER
The integrated controller is able to control one or
two sliding gates. The supplied pre-wired antenna is
ready to be mounted An outdoor type 240VAC
power outlet is required to power the system. When
two sliding gates are to be controlled the second
drive unit (SLAVE) is connected to the first
(MASTER) via a 5 wire low voltage cables. No
240VAC power is required by the SLAVE drive unit.
When used with suitable glands the enclosure meets
the IP33 standard for ingress of dust and water.
MECHANICAL DRIVE UNIT
The Drive unit consists of a powerful 24VDC motor,
rugged gear assembly and position encoder. It also
provides an key lockable disengaging lever.
The ATA EasySlider Gate Opener is designed to
operate most domestic sliding gates including solid
gates. The gates must be in good working condition
and should operate freely by hand.
STEP 1.INITIAL CHECKING
Before commencing installation of the Easy Slider Gate Opener,
check the following:
1. The gate will move freely by hand for the full opening and
closing travel.
2. The mounting must be solid construction (concrete, brick or
Cover
Release
Screw
Disengaging Lever

PRODUCT DESCRIPTION

INSTALLATION OF DRIVE UNIT

steel. It must be able to withstand the full force applied to the gate.
3. There is a weather proof 240V 10Amp power point is located
within 1 metre.
4. Select a suitable location for mounting the drive unit. This
position is usually established by opening the gate fully and
mounting the drive unit within a suitable distance of the gate
edge.
5. If dual gate openers are required provision for underground
cabling should be made from one side of the gateway to the other.
This may also be required for wiring of Photoelectric Beams or
other accessories.
5
FIG. 1
FIG. 2
Cover
Release
Screw
